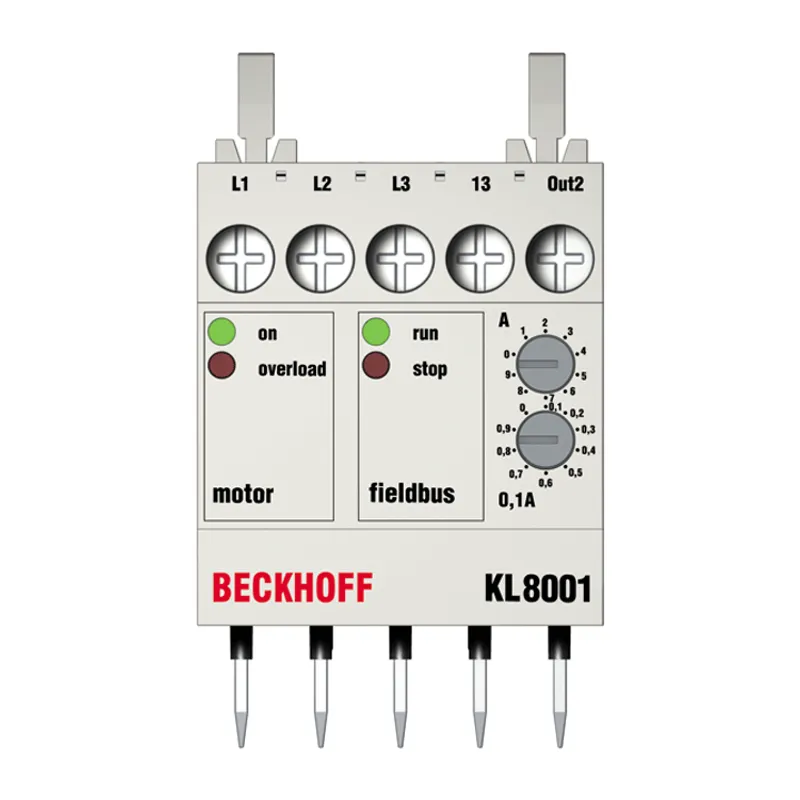

Beckhoff KL8001
Power terminal for Siemens contactor, series Sirius 3R
- MPN
- KL8001
Price and lead time confirmed within 1 business day
Discontinued by Beckhoff — we can still source the original KL8001 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff KL8001?
Like a standard motor protection relay the KL8001 power terminal is fitted to a power contactor up to a switching capacity of 5.5 kW. With regard to its connection mechanism, it is especially suitable for Siemens contactors of the Sirius 3R (switch
Beckhoff KL8001 — Power terminal for Siemens contactor, series Sirius 3R. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.
Specifications
Technical data
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Connection type | power path: screw terminals up to 2 x 2.5 mm² K-bus: 2 x flat plug socket, 10-pin |
| Current load | max. 25 A (fuse) |
| Short-circuit proof | up to 5 kA |
| Internal resistance | < 1 mΩ |
| Measured values | current, voltage, power |
| Measurement error/uncertainty | 0.1 A AC |
| Measuring voltage | 500 V AC |
| Current consumption K-bus | typ. 150 mA |
| Current consumption power contacts | typ. 7 mA + load |
| Power contacts | 24 V DC (-15%/+20%)/max. 1.4 A, short-circuit proof |
| Electrical isolation | 500 V (24 V DC/K-bus), 2500 V (mains supply/K-bus) |
| Bit width in the process image | input/output: 64 bits, 8 bit control/status, 32 bit data |
| Configuration | automatically, via the fieldbus, KS2000, rated current also manually |
| Weight | approx. 90 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable, contactor dependent |
| Approvals/markings | CE |
KL8001: frequently asked questions
Can I still buy the KL8001 now that it is discontinued?
Yes. Beckhoff has discontinued the KL8001, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can KL8001 be shipped?
KL8001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KL8001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KL8001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KL8001, subject to availability and destination.
