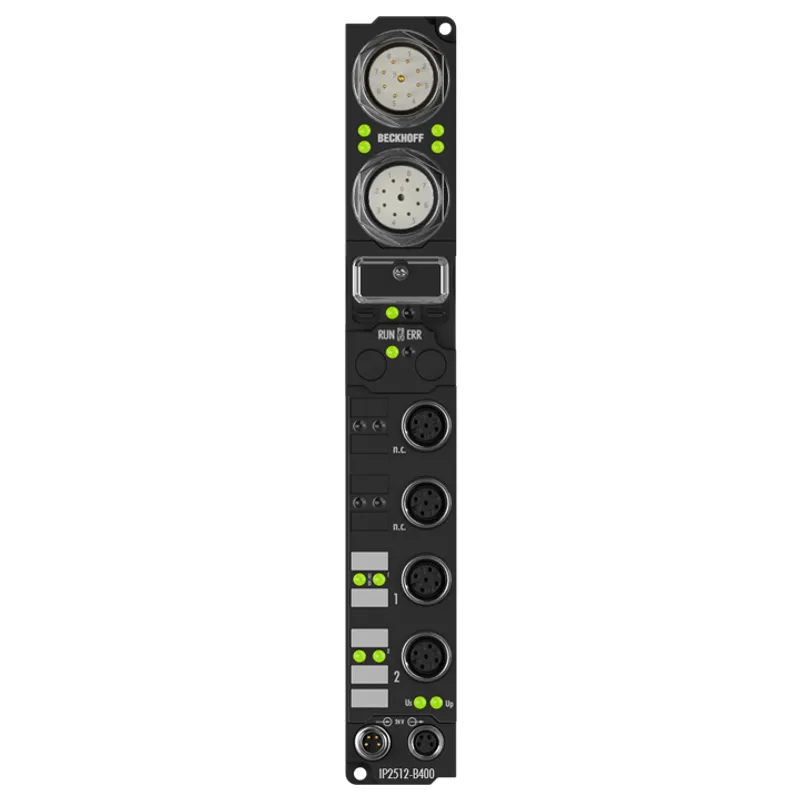

Beckhoff IP2512-B400

Fieldbus Box, 2-channel PWM output, Interbus, 24 V DC, 2.5 A, M12

MPN: IP2512-B400
Category: I/O service products (discontinued)

Price and lead time confirmed within 1 business day

Discontinued by Beckhoff — we can still source the original IP2512-B400 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff IP2512-B400?

The outputs of the IP2512 module provide a pulse width modulated version of a binary signal. The keying ratio is prescribed by a 10 bit value from the automation unit. The output is protected against overload and short circuit. In addition to the PWM

Beckhoff IP2512-B400 — Fieldbus Box, 2-channel PWM output, Interbus, 24 V DC, 2.5 A, M12. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of outputs	2
Output connections	M12, screw type
Load type	ohmic, inductive
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	2.5 A per channel, individually short-circuit proof
Current consumption from U S (without sensor current)	see documentation
Up/down channel	24 V DC, 0.5 A, short-circuit proof
Base frequency	8 Hz…40 kHz, default: 250 Hz
Duty factor	0…100% (pulse duration T ON > 750 ns, pause duration T OFF > 500 ns)
Resolution	max. 10 bit
Freewheeling diode (output)	yes
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	48 inputs/outputs: 2 x 16 bit data + 2 x 8 bit status
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Configuration	via KS2000
Data transfer rates	500 kbaud
Bus interface	1 x M23 female socket 9-pin, 1 x M23 male socket 9-pin
Data transfer medium	LiYCY 3 x 2 x 0.22 mm²
Power supply	control voltage: 24 V DC (20…29 V DC); load voltage: according to I/O type
Box supply current	85 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current	according to I/O type
Data transfer time	approx. 1 ms in the case of 10 modules for 32 bit input and output each
Weight	approx. 350 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
