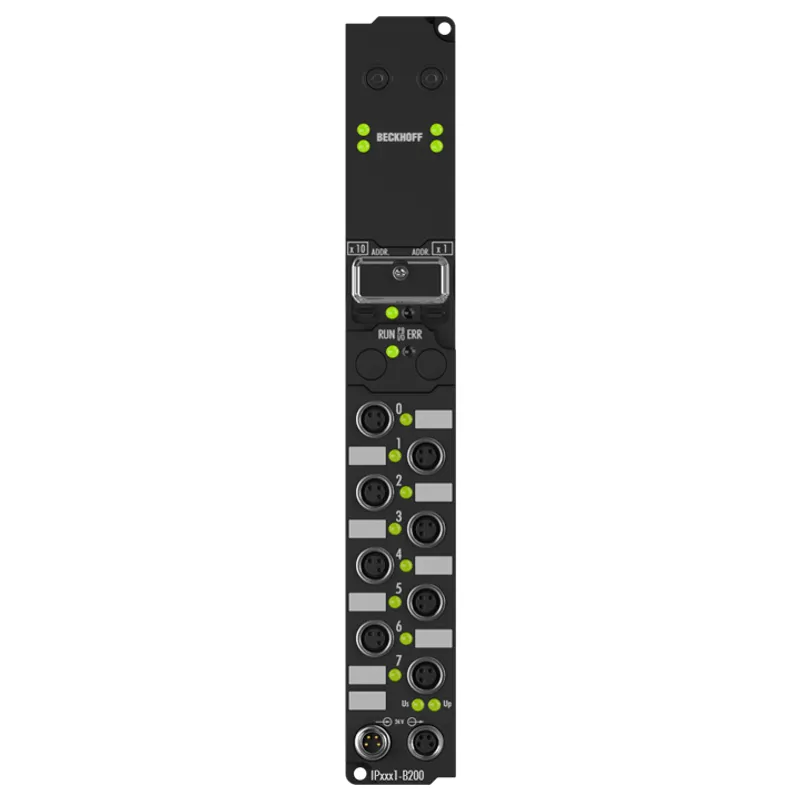

Beckhoff IP2321-B200
Fieldbus Box, 4-channel digital input + 4-channel digital output, Lightbus, 24 V DC, 3 ms, 2 A, M8
- MPN
- IP2321-B200
Price and lead time confirmed within 1 business day
Discontinued by Beckhoff — we can still source the original IP2321-B200 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff IP2321-B200?
The IP2321-Bxxx digital I/O module combines four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 2 A, are short-circuit-proof and protected against inverse polarity. The sum current for all four outputs is
Beckhoff IP2321-B200 — Fieldbus Box, 4-channel digital input + 4-channel digital output, Lightbus, 24 V DC, 3 ms, 2 A, M8. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.
Specifications
Technical data
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Number of channels | 4 inputs + 4 outputs |
| Input/output connections | M8, screw type |
| Input filter | 3.0 ms |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V, 6 mA input current (EN 61131-2, type 2) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Load type | ohmic, inductive, lamp load |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Max. output current | 2 A per channel, individually short-circuit proof, ∑ 4 A |
| Short-circuit current | typ. 4 A |
| Auxiliary power current | typ. 30 mA per channel |
| Current consumption from U S (without sensor current) | see documentation |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Bit width in the process image | 4 inputs + 4 outputs |
| Electrical isolation | channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system |
| Extension modules | – |
| Digital peripheral signals | according to I/O type |
| Analog peripheral signals | according to I/O type |
| Configuration | via KS2000 or the controller |
| Data transfer rates | 2.5 Mbaud |
| Bus interface | 2 x fiber-optic socket for plug ZS1020-0010 |
| Data transfer medium | fiber-optic conductor: APF (plastic) fiber (1,000 µm) |
| Power supply | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Distance between stations | 45 m |
| Data transfer time | 0.26 ms in the case of 10 modules for 32 bit input and output each (without IP-Link) |
| Weight | approx. 250 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
IP2321-B200: frequently asked questions
Can I still buy the IP2321-B200 now that it is discontinued?
Yes. Beckhoff has discontinued the IP2321-B200, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can IP2321-B200 be shipped?
IP2321-B200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IP2321-B200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IP2321-B200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IP2321-B200, subject to availability and destination.
More Beckhoff parts
Beckhoff
IP2320-B730Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, Ø8 – Modbus RTU
Beckhoff
IP2320-B800Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, Ø8 – RS485/RS422
Beckhoff
IP2320-B810Fieldbus Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, Ø8 – RS232
Beckhoff
IP2321-B310Fieldbus Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24 V DC, 3 ms, 2 A, M8
Beckhoff
IP2321-B318Fieldbus Box, 4-channel digital input + 4-channel digital output, PROFIBUS, 24 V DC, 3 ms, 2 A, M8, integrated T-connector
Beckhoff
IP2321-B400Fieldbus Box, 4-channel digital input + 4-channel digital output, Interbus, 24 V DC, 3 ms, 2 A, M8
Beckhoff

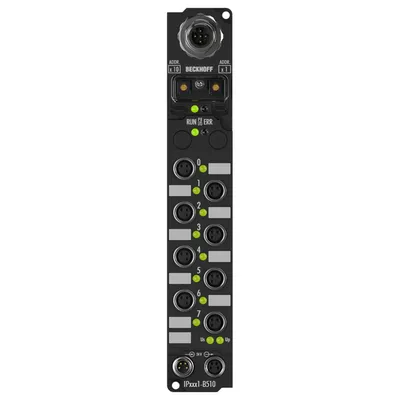

IP2321-B510Fieldbus Box, 4-channel digital input + 4-channel digital output, CANopen, 24 V DC, 3 ms, 2 A, M8
