Beckhoff IP1001-B810

Fieldbus Box, 8-channel digital input, RS232, 24 V DC, 3 ms, M8

MPN: IP1001-B810
Category: I/O service products (discontinued)

Price and lead time confirmed within 1 business day

Discontinued by Beckhoff — we can still source the original IP1001-B810 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

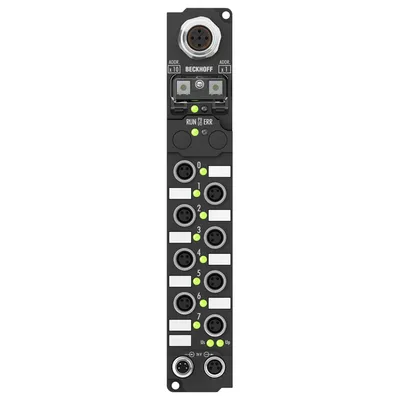

What is the Beckhoff IP1001-B810?

The IP1001-Bxxx digital input acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The state of the signals is indicated by light emitting diodes. The signals are connected via M8 screw type

Beckhoff IP1001-B810 — Fieldbus Box, 8-channel digital input, RS232, 24 V DC, 3 ms, M8. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Number of inputs	8
Input connections	M8, screw type
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	3.0 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 2)
“1” signal voltage	11…30 V (EN 61131-2, type 2)
Input current	typ. 6 mA (EN 61131-2, type 2)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	8 inputs
Current consumption from U S (without sensor current)	see documentation
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system
Extension modules	–
Digital peripheral signals	according to I/O type
Analog peripheral signals	according to I/O type
Protocol	open, documented protocol
Configuration	via KS2000
Data transfer rates	9.6 kbaud, 19.2 kbaud, 38.4 kbaud (default)
Bus interface	1 x M12 socket, 5-pin, B-coded
Data transfer medium	shielded copper cable, 2 x 0.25 mm²
Power supply	control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type
Box supply current	45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current	according to I/O type
Weight	approx. 210 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
