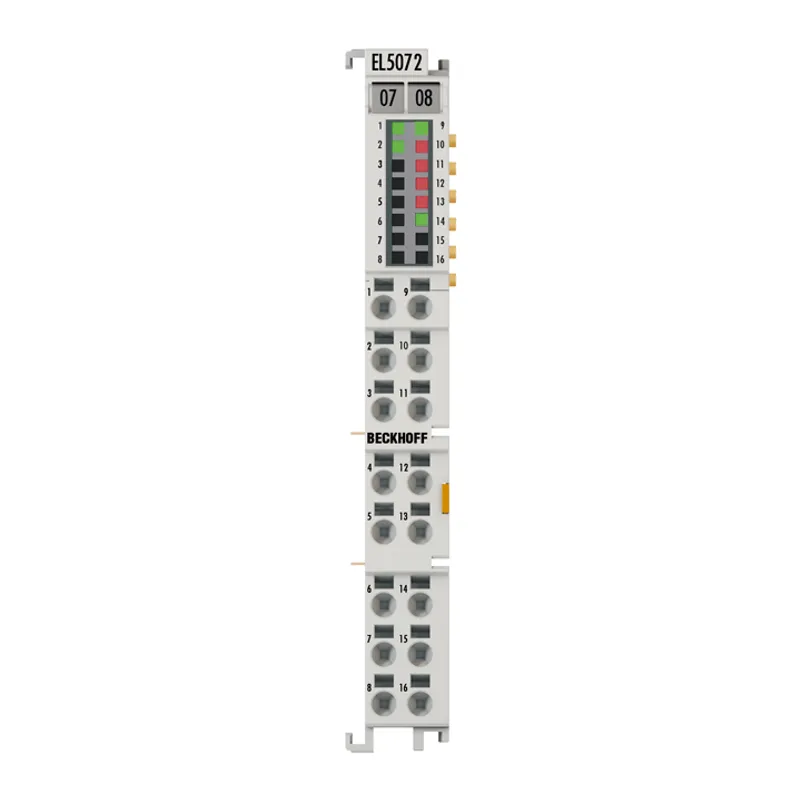

EtherCAT Terminal, 2-channel displacement sensor interface, inductive, LVDT, RVDT, half bridge
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EL5xxx | Position measurement |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EL5072 be shipped?
EL5072 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL5072 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL5072 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL5072, subject to availability and destination.
The EL5072 EtherCAT Terminal is used for the direct connection of up to two inductive displacement sensors, which include measuring probes in LVDT and half bridge versions or inductive angle position sensors in RVDT version. The integrated excitation
Specifications
Specifications
| Technology | inductive sensor interface |
| Input connections | LVDT (ratiometric & differential), inductive half bridge, RVDT |
| Number of channels | 2 |
| Distributed clocks | yes, save timestamp for position value via digital input |
| Excitation voltage Uexc | 0.5 Vrms to 7 Vrms (1.5 VPP to 20 VPP), joint source for both channels |
| Total excitation current | max. 50 mArms (140 mAPP) |
| Excitation frequency (sinus) | 1 kHz up to 20 kHz, adjustable |
| Resolution | 24 bit, 32 bit presentation |
| Measuring signal range USIG | max. 7 Vrms (automatic adjustment) |
| Conversion time | 100 µs/10 ksps at max. 13 kHz |
| Current consumption power contacts | typ. 40 mA + load |
| Current consumption E-bus | typ. 200 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | short circuit, overload and amplitude error detection per channel, digital input for setting and storing position value |
| Weight | approx. 60 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
