Multi-touch Panel PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP37xx-1600 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP37xx-1600-0030 be shipped?
CP37xx-1600-0030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP37xx-1600-0030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP37xx-1600-0030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP37xx-1600-0030, subject to availability and destination.

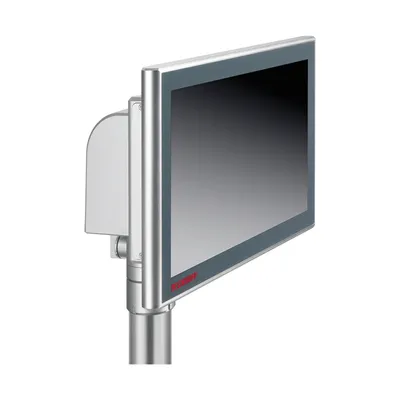

Multi-touch can be used directly in the field with the CP37xx-1600 Panel PC series. The devices in robust aluminum housing feature complete IP65 protection and are designed for mounting arm installation. Equipped with Intel Atom® processors with up to
Specifications
Specifications
| Device type | Multi-touch Panel PC |
| Housing | aluminum housing for mounting arm installation |
| Mounting arm adapter | 4 M6 threaded holes with a distance of 100 x 100 mm for connection to a mounting arm system |
| Wiring area | for up to 6 IP65 connectors, 4 of these are free |
| Slots for hard disk/flash | 1 slot for CFast |
| Cooling | passive |
| Free space for air circulation | 20 cm (7.9") around the PC required |
| Extensions | 3 M5 threaded holes on the underside of the Control Panel for mounting mechanical extensions |
| Protection rating | IP65 |
| Operating temperature | 0…45°C |
| Display size/resolution | 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Processor | Intel Atom® x6214RE, 1.4 GHz, 2 cores (TC3: 40) |
| Motherboard | 3½-inch motherboard for Intel Atom® x6 |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T on-board, one of these is led out |
| Hard disks/flash | 40 GB CFast card |
| Interfaces | 1 x USB 3.0 with screw-on cap IP65 in the bottom, 1 x M23 socket for power supply, 1 x Ethernet 100/1000/2500BASE-T push-pull |
| Power supply | 24 V DC |
| Operating system | – |
