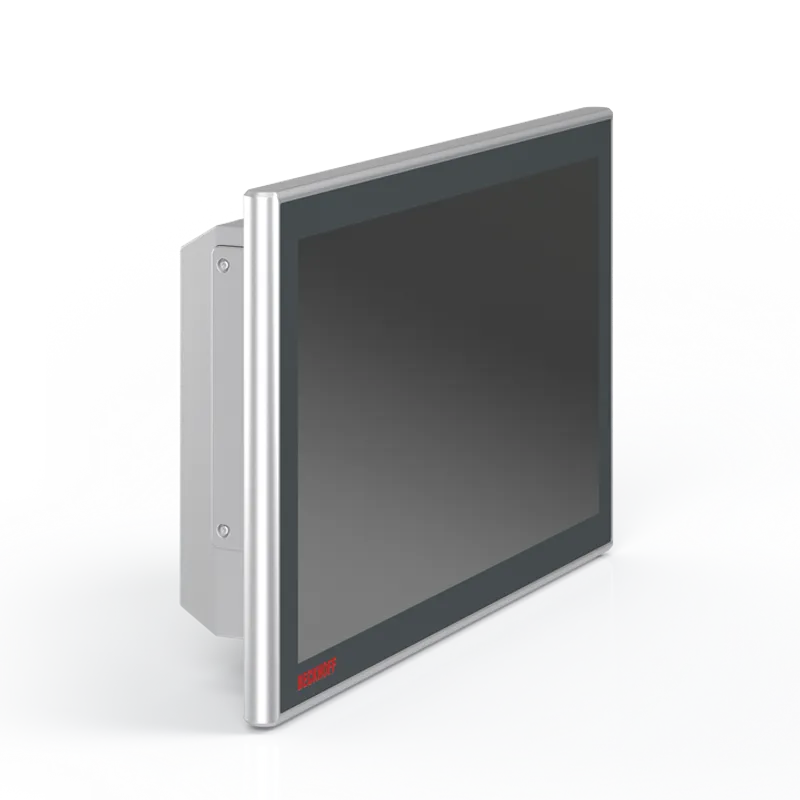

Multi-touch Panel PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP32xx-1600 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP32xx-1600-0040 be shipped?
CP32xx-1600-0040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP32xx-1600-0040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP32xx-1600-0040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP32xx-1600-0040, subject to availability and destination.
Multi-touch can be used directly in the field with the CP32xx-1600 Panel PC series. The devices in robust aluminum housing feature complete IP65 protection and are designed for mounting arm installation. The Panel PCs offer maximum computing power with
Specifications
Specifications
| Device type | Multi-touch Panel PC |
| Housing | aluminum housing for mounting arm installation |
| Mounting arm adapter | 4 M6 threaded holes with a distance of 100 x 100 mm and 4 M6 threaded holes with a distance of 70 x 130 mm for connection to a mounting arm system |
| Wiring area | for up to 6 IP65 connectors, 4 of these are free |
| Slots for hard disk/flash | 1 slot for 2½-inch hard disk/SSD, 1 slot for CFast |
| Cooling | passive through heat sink structure, internal fan for equal heat distribution to all housing walls |
| Free space for air circulation | 20 cm (7.9") around the PC required |
| Extensions | 3 M5 threaded holes on the underside of the Control Panel for mounting mechanical extensions |
| Protection rating | IP65 |
| Operating temperature | 0…45°C |
| Display size/resolution | 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 |
| Touch screen | multi-finger touch screen |
| Processor | Intel® Celeron® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7 |
| Memory | 4 GB DDR4 RAM |
| Ethernet | 1 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 2½-inch, 320 GB |
| Interfaces | 1 x USB 3.0 with screw-on cap IP65 in the bottom 1 x M23 socket for power supply 1 x Ethernet 100/1000BASE-T push-pull |
| Power supply | 24 V DC |
| Operating system | – |
