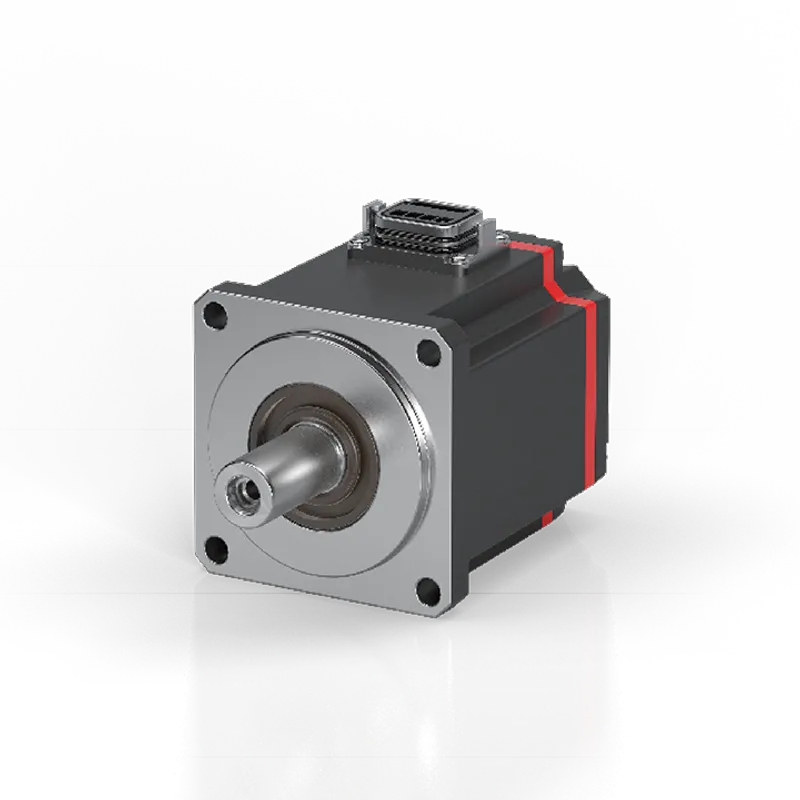

Economy servomotor 0.64 Nm (M0), 200 W (Pn), I2 (60 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AM1021 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AM1021-wDyz be shipped?
AM1021-wDyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AM1021-wDyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AM1021-wDyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM1021-wDyz, subject to availability and destination.
The AM1021 economy servomotor is suitable for drive solutions that have very high demands in terms of dynamics and performance in the 110…480 V AC voltage range. The motor's standstill torque is 0.64 Nm and it can be combined with the AX1101-1xxx
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Standstill torque | 0.64 Nm |
| Nominal voltage | 110…480 V AC |
| Rated torque | 0.64 Nm |
| Peak torque | 2.00 Nm |
| Rated speed | 3000 min-1 |
| Rated power | 0.20 kW |
| Standstill current | 1.65 A |
| Peak current | 5.4 A |
| Torque constant | 0.388 Nm/A |
| Motor feedback | OCT, single-turn or multi-turn absolute encoder, electronic nameplate |
| Cooling | convection |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | CDC, black, similar to RAL9005 |
| Motor length without shaft (without brake) | 70.5 mm |
| Motor length without shaft (with brake) | 100.0 mm |
