Beckhoff AG3210-+NP015S-MF2-100

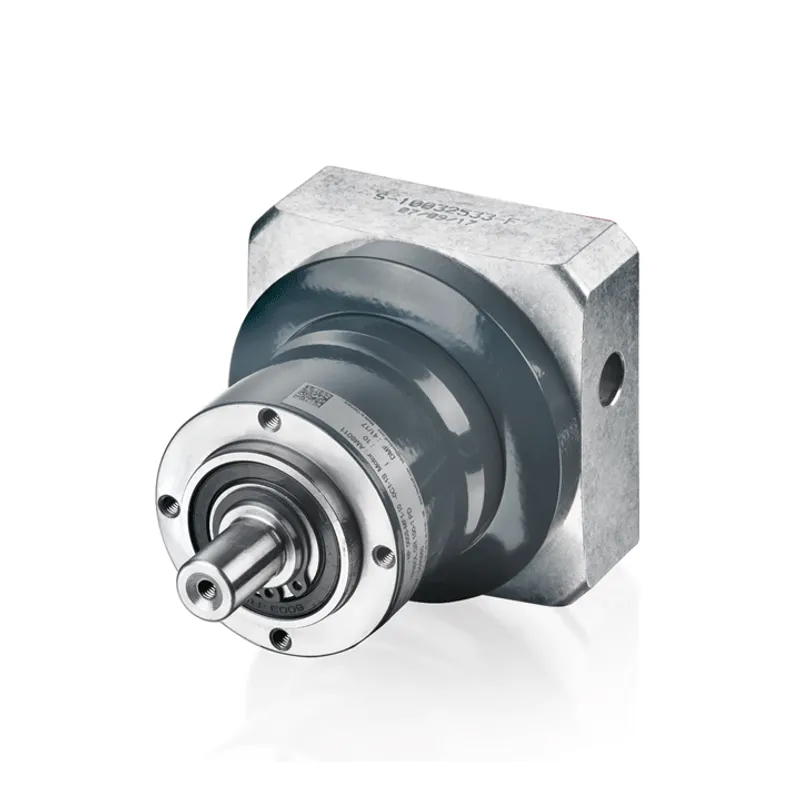

Economy planetary gear units, size 015

MPN: AG3210-+NP015S-MF2-100
Category: AG3210-+NP015S

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AG3210-+NP015S-MF2-100?

The planetary gear units of the AG3210 economy series with output shaft are a cost-efficient alternative to the high-end gears. The gears, which are available in 1-stage and 2-stage versions offering added value with regard to the transmittable torque as

Specifications

Design	straight
Variant	economy
Type	standard MF
Nominal output torque	19 Nm
Max. acceleration torque	35 Nm
Gear stages	2
Gear ratio	100
Max. torsional backlash standard/reduced	≤ 10 arcmin
Ambient temperature (operation)	-15…+40°C
Protection rating	IP64
Design form	flange-mounted according to B14
Coating/surface	coated
