Beckhoff AG2300-+SP100S-MC1-5

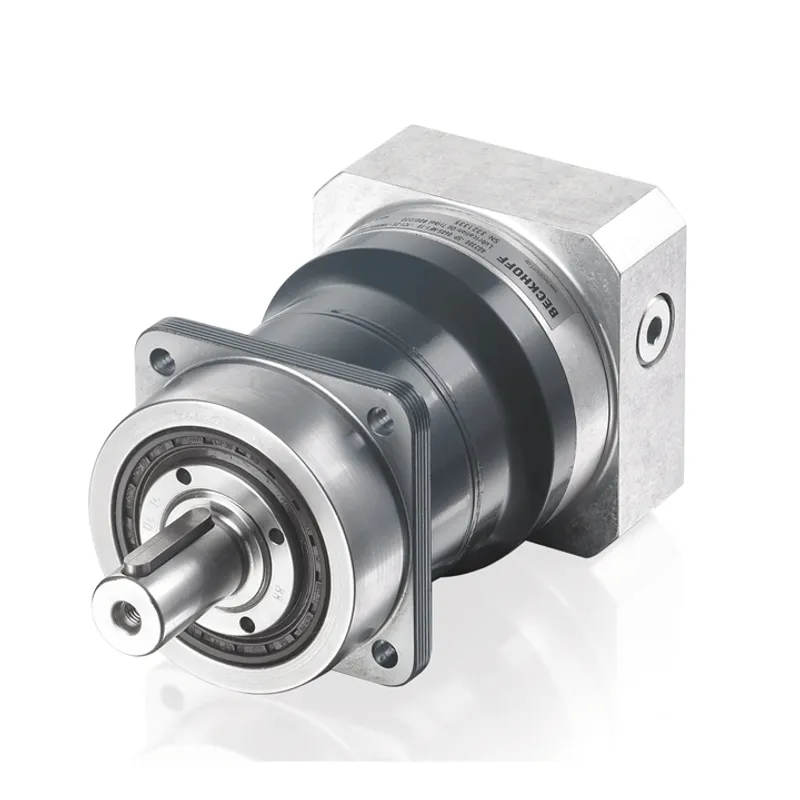

High-end gear series for rotary servomotors

MPN: AG2300-+SP100S-MC1-5
Category: AG2300-+SP100S

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AG2300-+SP100S-MC1-5?

The low-backlash, high-performance planetary gear units of the AG2300 series offer high torque, low torsional backlash and a very low noise level in various gear ratios. The high-end gear units for the rotary servomotors have a high power density and are

Specifications

Design	straight
Variant	high-end
Type	high-speed MC
Nominal output torque	91 Nm
Max. acceleration torque	240 Nm
Gear stages	1
Gear ratio	5
Max. torsional backlash standard/reduced	≤ 4/2 arcmin
Ambient temperature (operation)	-15…+40°C
Protection rating	IP65
Design form	flange-mounted according to B5
Coating/surface	coated
