Beckhoff AG2250-+WPLE80-M01-4

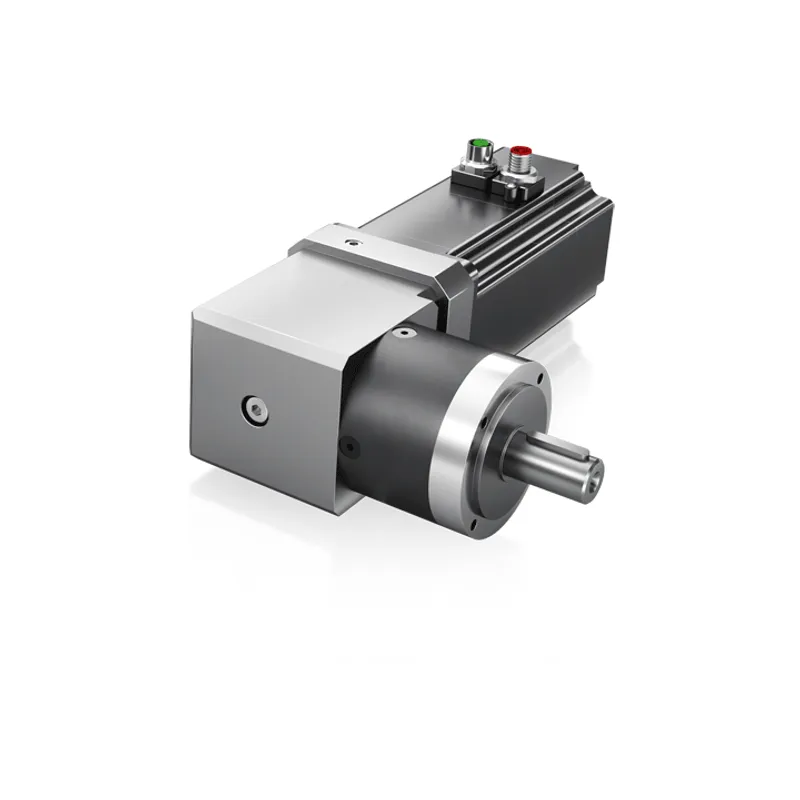

1-stage angled planetary gear units for rotary servomotors

MPN: AG2250-+WPLE80-M01-4
Category: AG2250-+WPLE80

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AG2250-+WPLE80-M01-4?

The AG2250 planetary gears are especially matched to the rotary motor series and have been expanded by 2- or 3-stage version. For better design, planetary and angled planetary gears are available with different transmission ratios. The 1-stage variants

Specifications

Design	angled
Variant	economy
Type	economy
Nominal output torque	53 Nm
Max. acceleration torque	85 Nm
Gear stages	1
Gear ratio	4
Max. torsional backlash standard/reduced	≤ 13/– arcmin
Ambient temperature (operation)	-25…+40°C
Protection rating	IP54
Design form	flange-mounted according to B14
Coating/surface	post-oxidized, heat-treated steel
