Beckhoff AG2250-+PLE40-M01-10

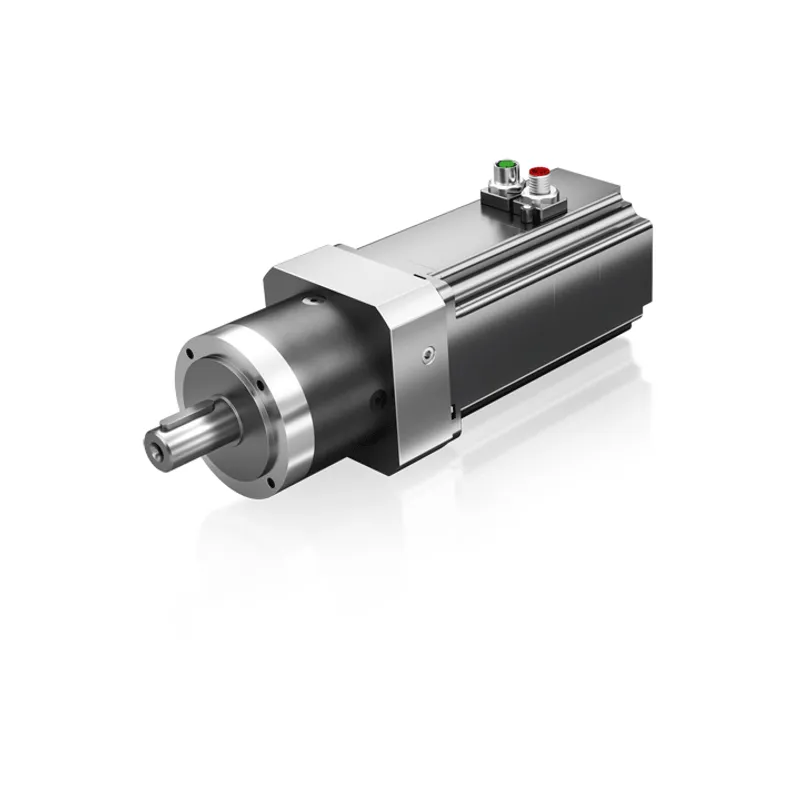

1-stage planetary gear units for rotary servomotors

MPN: AG2250-+PLE40-M01-10
Category: AG2250-+PLE40

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AG2250-+PLE40-M01-10?

The AG2250 planetary gears are especially matched to the rotary motor series and have been expanded by 2- or 3-stage version. For better design, planetary and angled planetary gears are available with different transmission ratios. The 1-stage variants

Specifications

Design	straight
Variant	economy
Type	economy
Nominal output torque	5 Nm
Max. acceleration torque	8 Nm
Gear stages	1
Gear ratio	10
Max. torsional backlash standard/reduced	≤ 15/– arcmin
Ambient temperature (operation)	-25…+40°C
Protection rating	IP54
Design form	flange-mounted according to B14
Coating/surface	post-oxidized, heat-treated steel
