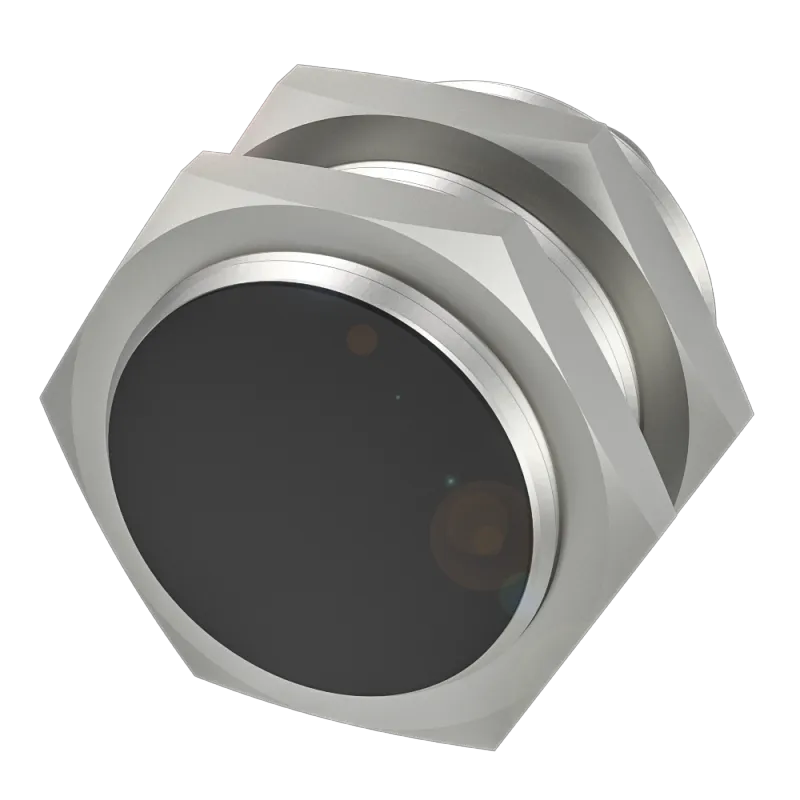

Balluff BES03TA

BES M30ME-NOC10B-S04G-003 – Inductive proximity switches and proximity sensors

MPN: BES03TA
Category: Inductive proximity switches and proximity sensors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BES03TA?

Balluff BES03TA (BES M30ME-NOC10B-S04G-003) — Inductive proximity switches and proximity sensor. Dimension: Ø 30 x 44.5 mm; Style Housing: M30x1.5; Installation: for flush mounting; Range: 10 mm; Switching output: NPN normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BES M30ME-NOC10B-S04G-003
Product group	Inductive proximity switches and proximity sensors

Key features

Dimension	Ø 30 x 44.5 mm
Style Housing	M30x1.5
Installation	for flush mounting
Range	10 mm
Switching output	NPN normally closed (NC)
Switching frequency	150 Hz
Housing material	Brass, nickel-plated
Material sensing surface	PA 12
Connection	Connector, M12x1-Male, 4-pin
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP67
Approval/Conformity	cULus CE UKCA WEEE
Principle of operation	Inductive sensor

Classifications

ECLASS 14.0	27-27-40-01
ETIM 9.0	EC002714
UNSPSC 11	41111926

BES03TA: frequently asked questions

When can BES03TA be shipped?

BES03TA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BES03TA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BES03TA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES03TA, subject to availability and destination.
