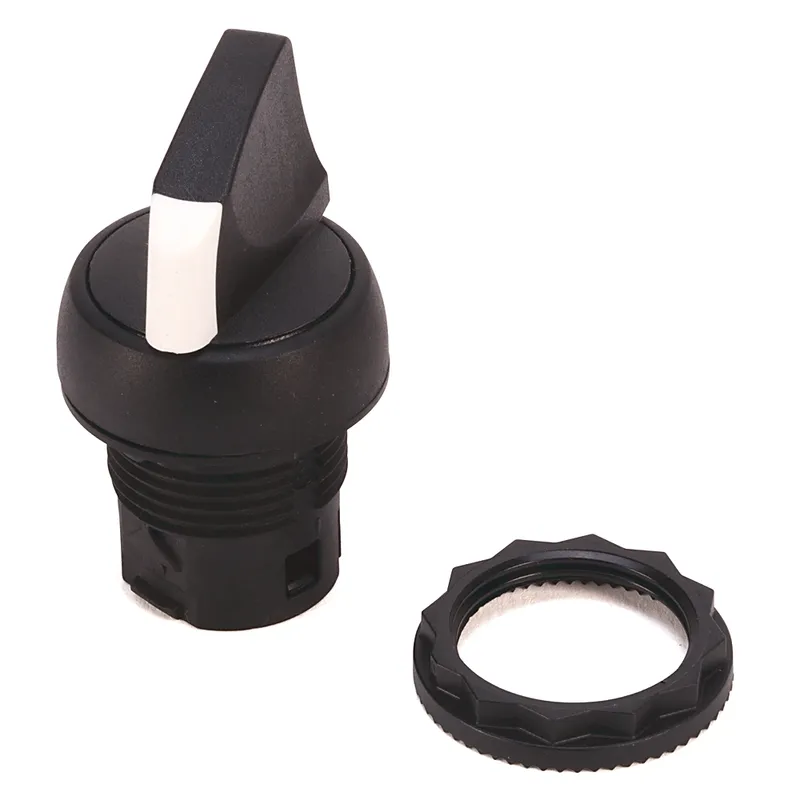

Allen-Bradley 800FM-SM42MX50

22mm Selector Switch 800F PB

MPN: 800FM-SM42MX50
Category: 800F 22 mm Round Operators

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800FM-SM42MX50?

Allen-Bradley 800FM-SM42MX50 — 22mm Selector Switch 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Contact block configuration	5 NO
Contact block durability	1.0E7
Contact block mounting style	Latch
Contact block operational voltage, max	600V (A600, Q600) - Screw Termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	10 A
Contact block type	Standard
Contact block utilization category (AC)	A600, AC 15 - Screw Termination
Contact block utilization category (DC)	Q600, DC-13 - Screw Termination
Enclosure compatibility	IP66, Type 4/13 (Round metal operator)
Hazardous location rating	false
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Latch material	Metal
Material front ring	Metal
Number of contacts as normally open contact	5
Number of switch positions	4
Operating temperature	-25 °C
Operator cap/button material	Metal
Operator cap color	Black
Operator construction/material	Metal
Operator function	Maintained, 4 position
Operator mechanical design life (cycles, min.)	1000000
Operator type	Selector switch - standard knob
Packaging	Standard pack (1 per package)
Shock	100 G
Spring-return	false
Storage temperature	-40 °C
Suitable for illumination	false
Switching function latching	true
Switch orientation	Standard
Termination style	Screw
Type of control element	Short thumb-grip
Type of electric connection	Screw connection
Vibration	10 G
With light source	false
Environmental Compliance	<a href='https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html'>See Details</a> \| <a href='#modal-submit-inquiry'>Submit Inquiry</a>
Product Series	A
