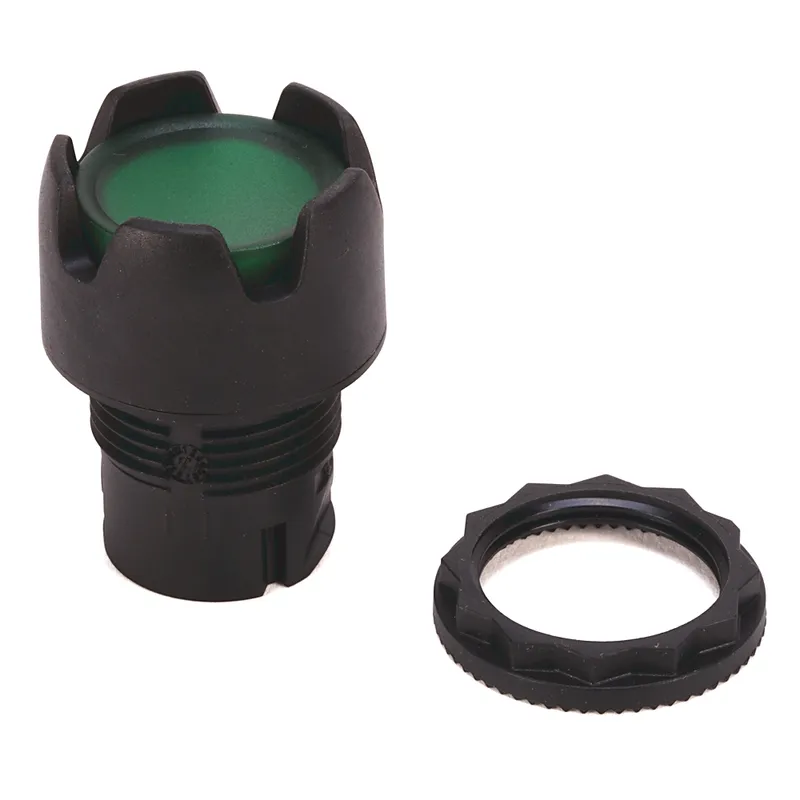

Allen-Bradley 800FM-LG3PN5GX10

22mm Momentary Push Button 800F PB

MPN: 800FM-LG3PN5GX10
Category: 800F 22 mm Round Operators

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800FM-LG3PN5GX10?

Allen-Bradley 800FM-LG3PN5GX10 — 22mm Momentary Push Button 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Type	22mm Momentary Push Button
Contact block configuration	1 NO
Contact block durability	1.0E7
Contact block mounting style	Latch
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	10 A
Contact block type	Standard
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Enclosure compatibility	IP66, Type 4/13 (Round metal operator)
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp type	Green LED
Illumination module input voltage	120V AC (LED)
Illumination module mounting style	Latch
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	#18...12 AWG (0.75...2.5 mm²)
Illumination module type	Integrated LED module
Latch material	Plastic
Operating temperature	-25 °C
Operator cap/button material	Plastic
Operator cap/button shape	Round
Operator cap color (lens)	Green
Operator cap text/symbol	Optional
Operator cap type	Illuminated guarded
Operator construction/material	Metal
Operator function	22 mm momentary push button
Operator mechanical design life (cycles, min.)	1.0E7
Operator type	Push button
Shock	100 G
Storage temperature	-40 °C
Suitable for illumination	true
Termination style	Screw contact block
Vibration	10 G

800FM-LG3PN5GX10: frequently asked questions

When can 800FM-LG3PN5GX10 be shipped?

800FM-LG3PN5GX10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FM-LG3PN5GX10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FM-LG3PN5GX10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FM-LG3PN5GX10, subject to availability and destination.
