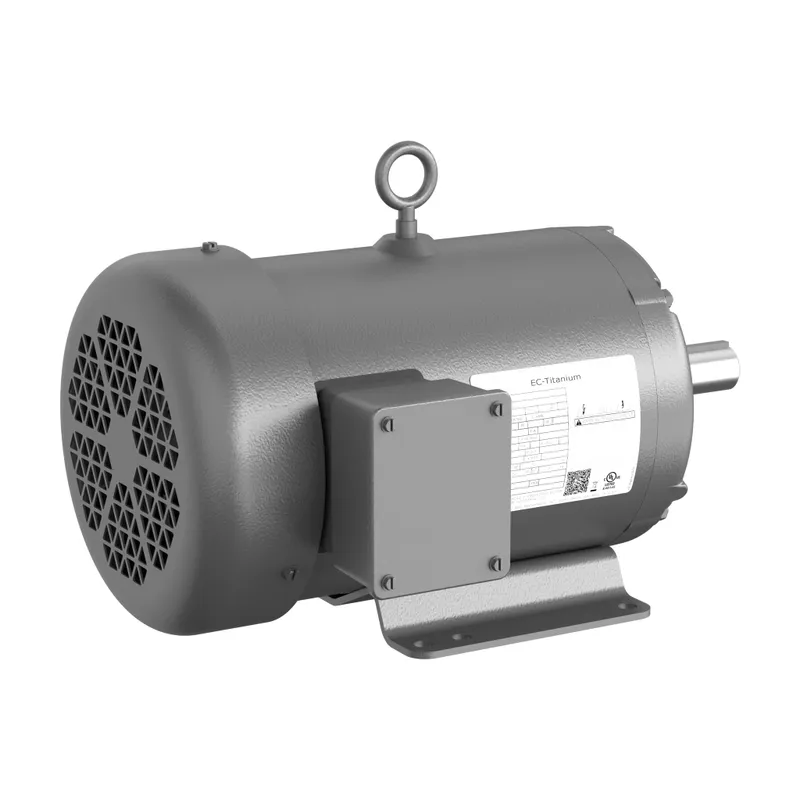

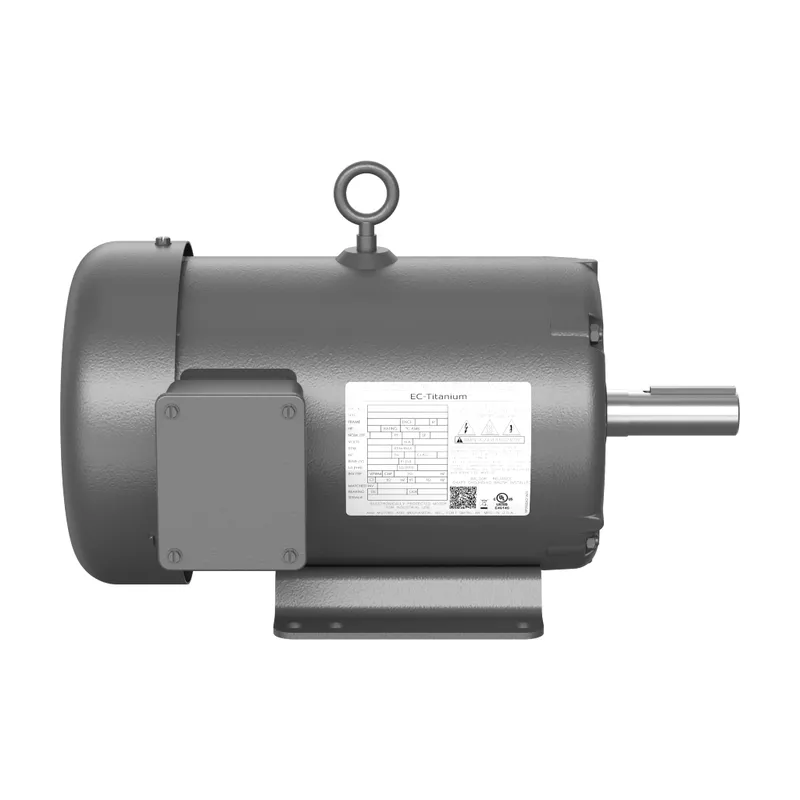

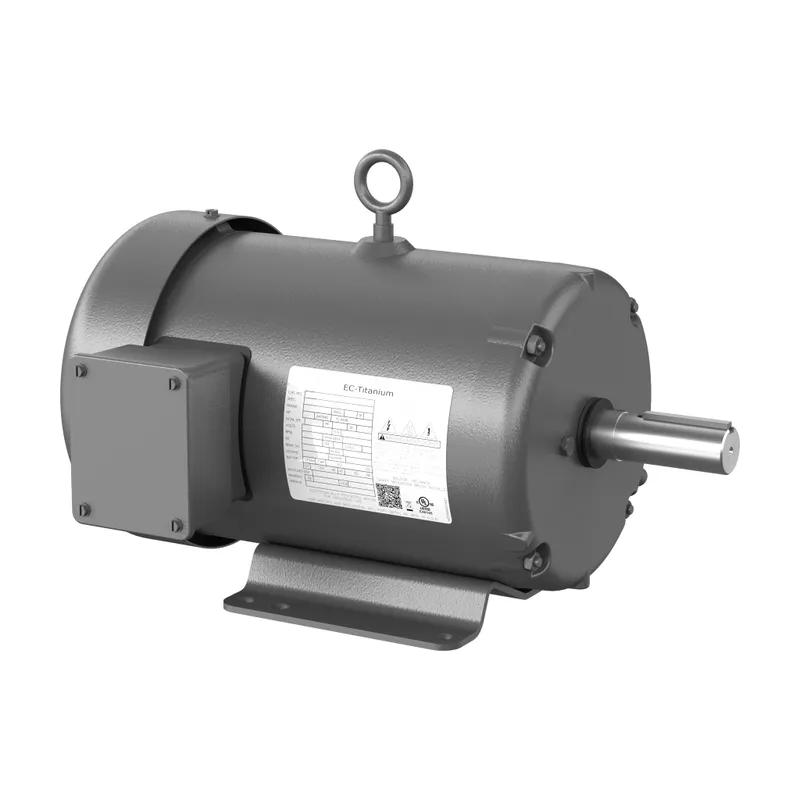

7.5HP,1800RPM,3PH,60HZ,184T,TEFC,N

Name: 7.5HP,1800RPM,3PH,60HZ,184T,TEFC,N
Brand: ABB
SKU: ECS101M0H7EF4

MPN: ECS101M0H7EF4 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	EC Titanium™ (General Purpose SP5+)
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ECS101M0H7EF4 be shipped?

ECS101M0H7EF4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECS101M0H7EF4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECS101M0H7EF4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECS101M0H7EF4, subject to availability and destination.

ECM 7.5 Hp 230 V (ECS101M0H7EF4)

Specifications

Ordering

Catalog Number	ECS101M0H7EF4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE1
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Rated Efficiency	94 %
Type of Duty	Continuous
Starting of Motor	INVERTER SPECIAL
Synchronous Speed (vsyn)	1800 r/min
Output Power	7.5 Hp
