Home / ABB / XP general purpose / ABB CXM21122T
ABB

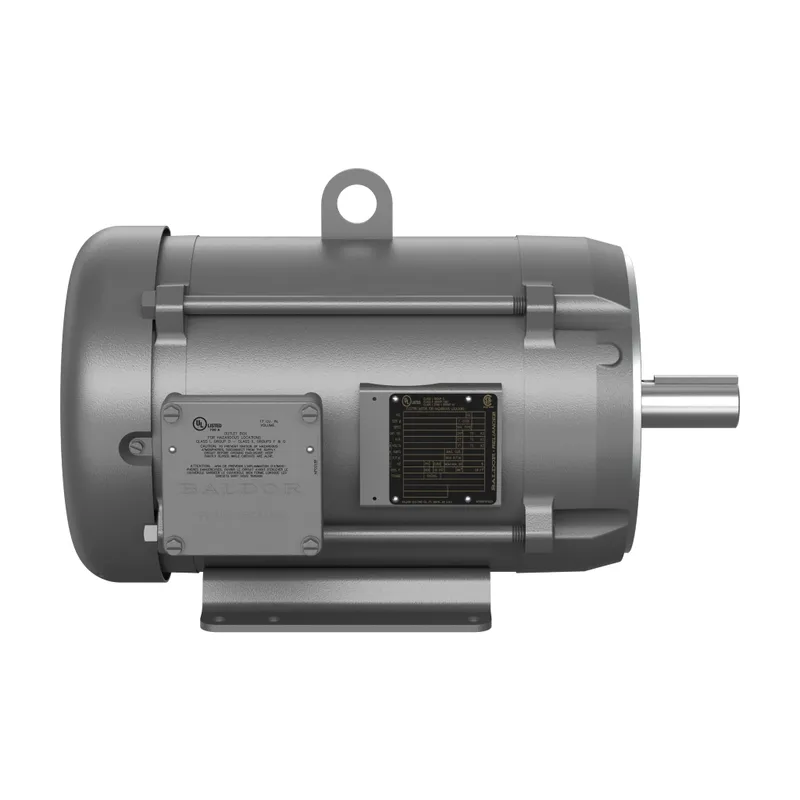

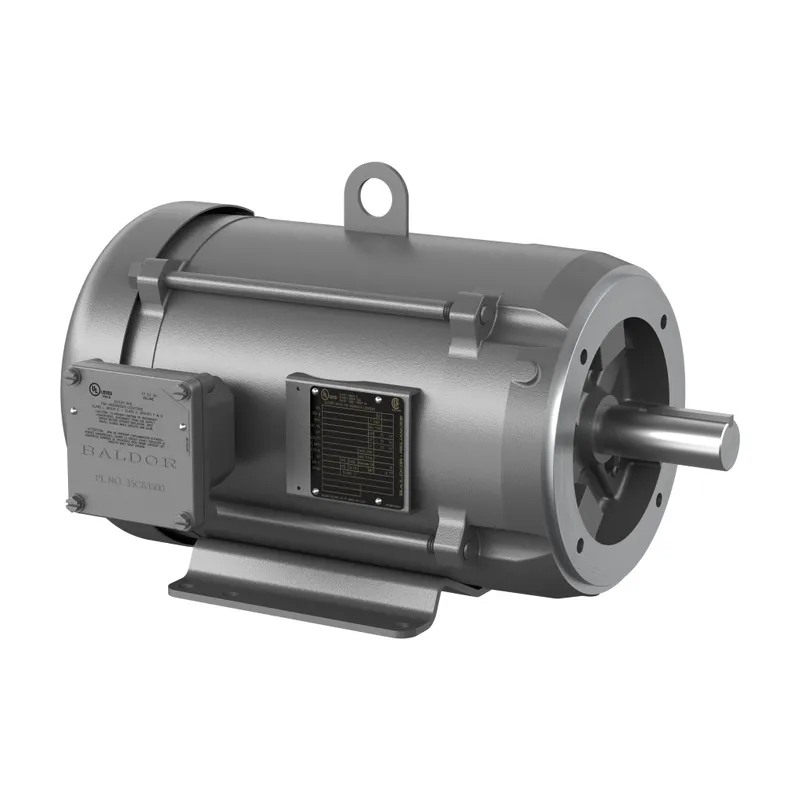

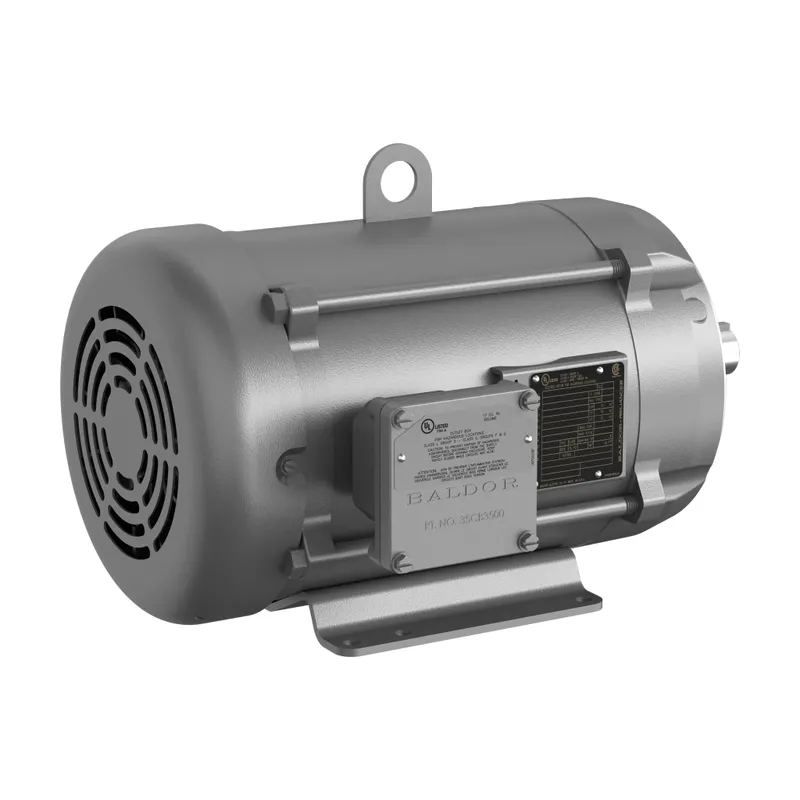

ABB CXM21122T

10//7.5HP,3510//2915RPM,3PH,60//50H

MPN
CXM21122T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CXM21122T?

Explosion Proof General Purpos 10 Hp 190 V (CXM21122T)

Specifications

Ordering

Catalog NumberCXM21122T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor90 %
Rated Efficiency90.20 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power10 Hp, 7.500 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size215TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.625 in
Product Net Weight165 lb
Product Net Width18.125 in
Dimension Diagram37LYL772

Certificates and Declarations

Certification AgencyCSA EEV, UL
ETIM 7EC001851 - Electric motor

CXM21122T: frequently asked questions

When can CXM21122T be shipped?

CXM21122T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CXM21122T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CXM21122T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CXM21122T, subject to availability and destination.

More ABB parts

ABB CXM18322T – 3//2HP,3450//2890RPM,3PH,60//50HZ,1
ABB
CXM18322T

3//2HP,3450//2890RPM,3PH,60//50HZ,1

ABB CXM18342T – 3//2HP,1760//1460RPM,3PH,60//50HZ,1
ABB
CXM18342T

3//2HP,1760//1460RPM,3PH,60//50HZ,1

ABB CXM18522T – 5//3HP,3450//2900RPM,3PH,60//50HZ,1
ABB
CXM18522T

5//3HP,3450//2900RPM,3PH,60//50HZ,1

ABB CXM18542T – 5//3HP,1750//1460RPM,3PH,60//50HZ,1
ABB
CXM18542T

5//3HP,1750//1460RPM,3PH,60//50HZ,1

ABB CXM21142T – 10//7.5HP,1770//1475RPM,3PH,60//50H
ABB
CXM21142T

10//7.5HP,1770//1475RPM,3PH,60//50H

ABB CXM21722T – 7.5//5HP,3520//2920RPM,3PH,60//50HZ
ABB
CXM21722T

7.5//5HP,3520//2920RPM,3PH,60//50HZ

ABB CXM21742T – 7.5//5HP,1770//1470RPM,3PH,60//50HZ
ABB
CXM21742T

7.5//5HP,1770//1470RPM,3PH,60//50HZ

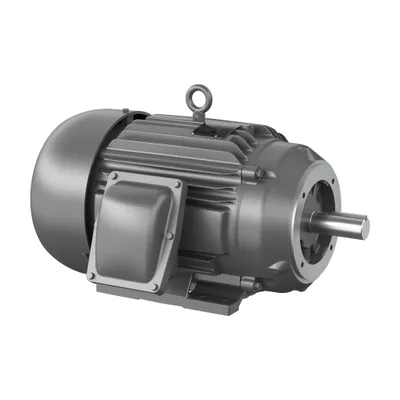

ABB CXM251522T – 15//10HP,3520//2930RPM,3PH,60//50HZ
