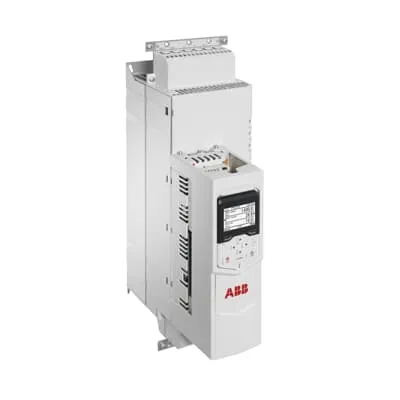

ABB ACS880-M04-030A-5

LV AC machinery drive module, IEC: Pn 15 kW, 30 A, 400 V, UL: Pld 20 Hp, 28 A, 480 V ( )

MPN: ACS880-M04-030A-5
Category: ACS880-M04

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ACS880-M04-030A-5?

LV AC machinery drive module, IEC: Pn 15 kW, 30 A, 400 V, UL: Pld 20 Hp, 28 A, 480 V (ACS880-M04-030A-5)

Specifications

Ordering

Customs Tariff Number	85044087
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS880-M04-030A-5 PN: 15 kW, IN: 30 A kW
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	15.8 kg, 34.8 lb kg
Product Net Depth / Length	235 mm, 9.25 in mm
Product Net Height	658 mm, 25.91 in mm
Product Net Width	165 mm, 6.50 in mm
Package Level 1 Depth / Length	700 mm, 27.56 in mm
Package Level 1 Height	360 mm, 14.17 in mm
Package Level 1 Width	260 mm, 10.24 in mm
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	1000 m m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	71 dB(A) A
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g V
Frequency (f)	47.5 ... 63 Hz Hz
Frame Size	R3
Input Voltage (Uin)	380 ... 500 V V
Mounting Type	Module
Communication Protocol	CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 3, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 5
Output Current, Normal Use (In)	30 A A
Output Current, Light-Overload Use (ILD)	28 A A
Output Current, Heavy-Duty Use (IHD)	24 A A
Output Power, Normal Use (Pn)	15 kW kW
Output Power, Light-Overload Use (PLD)	15 kW kW
Output Power, Heavy-Duty Use (PHD)	11 kW kW
Apparent Power Output	21 kV·A A
Efficiency Level	IE2
Standby Loss	34 W W
Temperature Rating	Maximum 40 °C

Technical UL

Output Current, Heavy-Duty Use (UL)	24 A A
Output Current, Light-Overload Use (UL)	28 A A
Output Power, Heavy-Duty Use (UL)	15 Hp
Output Power, Light-Overload Use (UL)	20 Hp

Certificates and Declarations

REACH Date	20250905
REACH Declaration	9AKK107992A7060
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	3AXD10000497831
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental

SCIP	056afa37-4c9d-45a8-b6fa-8011be013b84 Finland
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001

ACS880-M04-030A-5: frequently asked questions

When can ACS880-M04-030A-5 be shipped?

ACS880-M04-030A-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS880-M04-030A-5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS880-M04-030A-5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-M04-030A-5, subject to availability and destination.
