ABB ACS880-34-271A-7
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ACS880-34 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 365 kg |
Shipping & availability
When can ACS880-34-271A-7 be shipped?
ACS880-34-271A-7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS880-34-271A-7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS880-34-271A-7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-34-271A-7, subject to availability and destination.

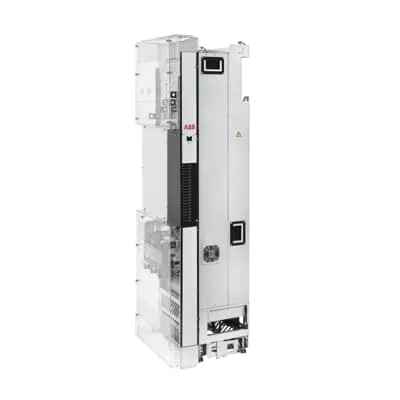

The ACS880-34 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-34 ultra-low harmonic drive module produces exceptionally low harmonic content and exceeds the requirements set by low harmonic requirements. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. These modules are specifically designed for machine builders and systems integrators. Bookshelf variants can easily be pushed inside the cabinet using a pedestal on wheels
Specifications
Ordering
| Customs Tariff Number | 85044087 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS880-34-271A-7 PN: 250 kW, IN: 271 A kW |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 365 kg, 805 lb kg |
| Product Net Depth / Length | 512 mm, 20.157 in mm |
| Product Net Height | 1741 mm, 68.543 in mm |
| Product Net Width | 713 mm, 28.071 in mm |
| Package Level 1 Depth / Length | 1077.0 mm, 42.402 in mm |
| Package Level 1 Height | 2050.0 mm, 80.709 in mm |
| Package Level 1 Width | 650.0 mm, 25.591 in mm |
| Package Level 1 Units | 1 case |
Technical
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Altitude | 4000 m m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Power Factor | 1.0 |
| Sound dB (A) | 75 dB(A) A |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g V |
| Frequency (f) | 47.5 ... 63 Hz Hz |
| Frame Size | R11 |
| Input Voltage (Uin) | 525 ... 690 V V |
| Mounting Type | Module |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 6, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 2 |
| Output Current, Normal Use (In) | 271 A A |
| Output Current, Light-Overload Use (ILD) | 257 A A |
| Output Current, Heavy-Duty Use (IHD) | 210 A A |
| Output Power, Normal Use (Pn) | 250 kW kW |
| Output Power, Light-Overload Use (PLD) | 250 kW kW |
| Output Power, Heavy-Duty Use (PHD) | 200 kW kW |
| Power Consumption (@Pcons) | 4854 W W |
| Apparent Power Output | 325 kV·A A |
| Efficiency Level | IE2 |
| Standby Loss | 214 W W |
| Temperature Rating | Maximum +55 °C, Minimum -15 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The low-harmonic drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d). |
Technical UL
| Output Current, Heavy-Duty Use (UL) | 192 A A |
| Output Current, Light-Overload Use (UL) | 242 A A |
| Output Power, Heavy-Duty Use (UL) | 200 Hp |
| Output Power, Light-Overload Use (UL) | 250 Hp |
Certificates and Declarations
| Declaration of Conformity - CE | 3AXD10000497831 |
| REACH Date | 20250905 |
| REACH Declaration | 9AKK107992A7060 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | 3AXD10000497831 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Environmental
| SCIP | 321d4ecf-abf4-4407-8959-f1db7a9ec077 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
External Classifications and Standards
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
