Home / ABB / ACS550 / ABB ACS800-07-0750-7

ABB

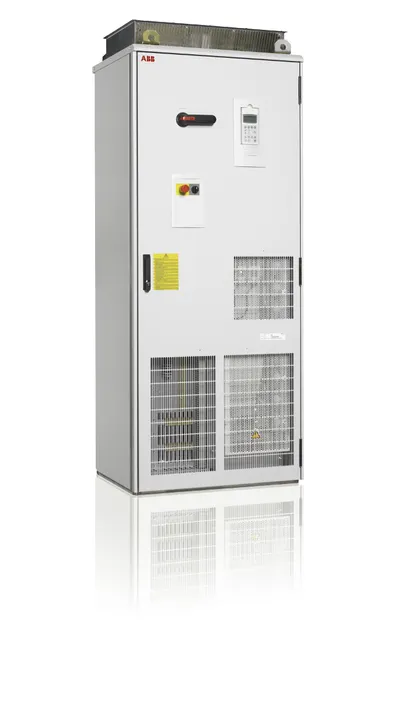

ABB ACS800-07-0750-7

Pcont.max:630kW, Icont.max:628A

MPN: ACS800-07-0750-7
Category: ACS550

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACS800-07-0750-7?

ACS800-07-0750-7 Pcont.max:630kW, Icont.max:628A

Specifications

Ordering

Customs Tariff Number	85044088
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS800-07-0750-7 Pcont.max:630kW, Icont.max:628A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	1100 kg kg
Product Net Depth / Length	646 mm mm
Product Net Height	2130 mm mm
Product Net Width	1330 mm mm

Technical

Number of Phases	3-phase
Frequency (f)	48 ... 63 Hz Hz
Frame Size	1xD4+2xR8i
Input Voltage (Uin)	525 … 690 V V
Mounting Type	Cabinet built
Output Current, Normal Use (In)	628 A A
Output Current, Light-Overload Use (ILD)	603 A A
Output Current, Heavy-Duty Use (IHD)	470 A A
Output Power, Normal Use (Pn)	630 kW kW
Output Power, Light-Overload Use (PLD)	630 kW kW
Output Power, Heavy-Duty Use (PHD)	500 kW kW

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001

ACS800-07-0750-7: frequently asked questions

When can ACS800-07-0750-7 be shipped?

ACS800-07-0750-7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS800-07-0750-7 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS800-07-0750-7 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS800-07-0750-7, subject to availability and destination.
