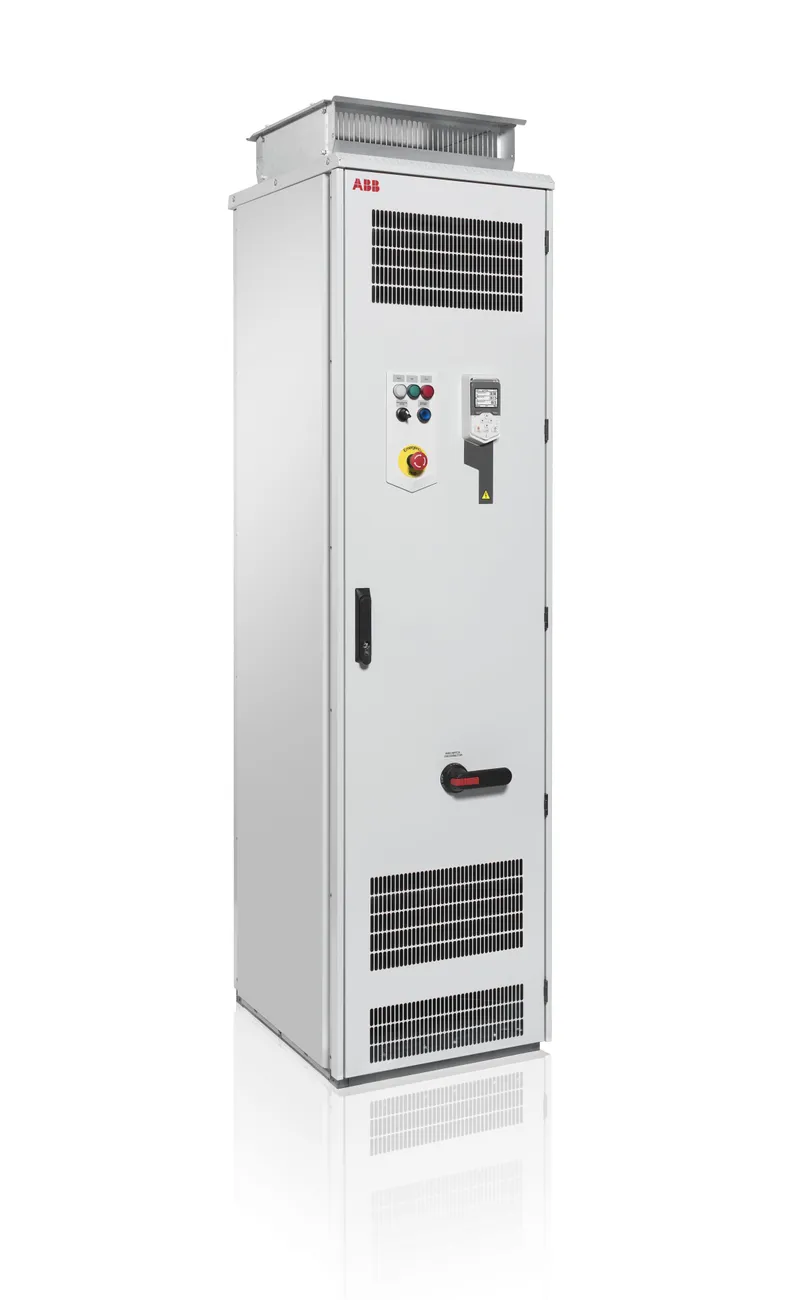

ABB ACS580-07-0246A-4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ACS580-07 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 255 kg |
Shipping & availability
When can ACS580-07-0246A-4 be shipped?
ACS580-07-0246A-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS580-07-0246A-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS580-07-0246A-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS580-07-0246A-4, subject to availability and destination.
The ACS580-07 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The ready-made standalone cabinet-built ACS580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Specifications
Ordering
| Customs Tariff Number | 85044087 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS580-07-0246A-4 PN: 132 kW, IN: 246 A kW |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 255 kg, 562.179 lb kg |
| Product Net Depth / Length | 673 mm, 26.496 in mm |
| Product Net Height | 2145 mm, 84.449 in mm |
| Product Net Width | 530 mm, 20.866 in mm |
| Package Level 1 Depth / Length | 2520 mm, 99.213 in mm |
| Package Level 1 Height | 900 mm, 35.433 in mm |
| Package Level 1 Width | 820 mm, 32.283 in mm |
| Package Level 1 Units | 1 case |
Technical
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Operating Humidity (RHamb) | 5 to 95% |
| Sound dB (A) | 65 dB(A) A |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g V |
| Frequency (f) | 47.5 ... 63 Hz Hz |
| Frame Size | R8 |
| Input Voltage (Uin) | 380 ... 480 V V |
| Mounting Type | Cabinet-built |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 3 |
| Output Current, Normal Use (In) | 246 A A |
| Output Current, Light-Overload Use (ILD) | 234 A A |
| Output Current, Heavy-Duty Use (IHD) | 206 A A |
| Output Power, Normal Use (Pn) | 132 kW kW |
| Output Power, Light-Overload Use (PLD) | 132 kW kW |
| Output Power, Heavy-Duty Use (PHD) | 110 kW kW |
| Power Consumption (@Pcons) | 3806 W W |
| Apparent Power Output | 170 kV·A A |
| Temperature Rating | Maximum 40 °C, Minimum 0 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for this cabinet-based drive. Cabinet built drives, with already conform modules, are excluded from the scope of the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.e). |
Technical UL
| Output Current, Heavy-Duty Use (UL) | 180 A A |
| Output Current, Light-Overload Use (UL) | 240 A A |
| Output Power, Heavy-Duty Use (UL) | 150 Hp |
| Output Power, Light-Overload Use (UL) | 200 Hp |
Certificates and Declarations
| Declaration of Conformity - CE | 3AXD10001818627 |
| REACH Date | 20250905 |
| REACH Declaration | 9AKK107992A7060 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | 3AXD10001818627 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Environmental
| SCIP | 182c528b-29d6-4b33-89d3-2ec8b482ca1d Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
External Classifications and Standards
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
