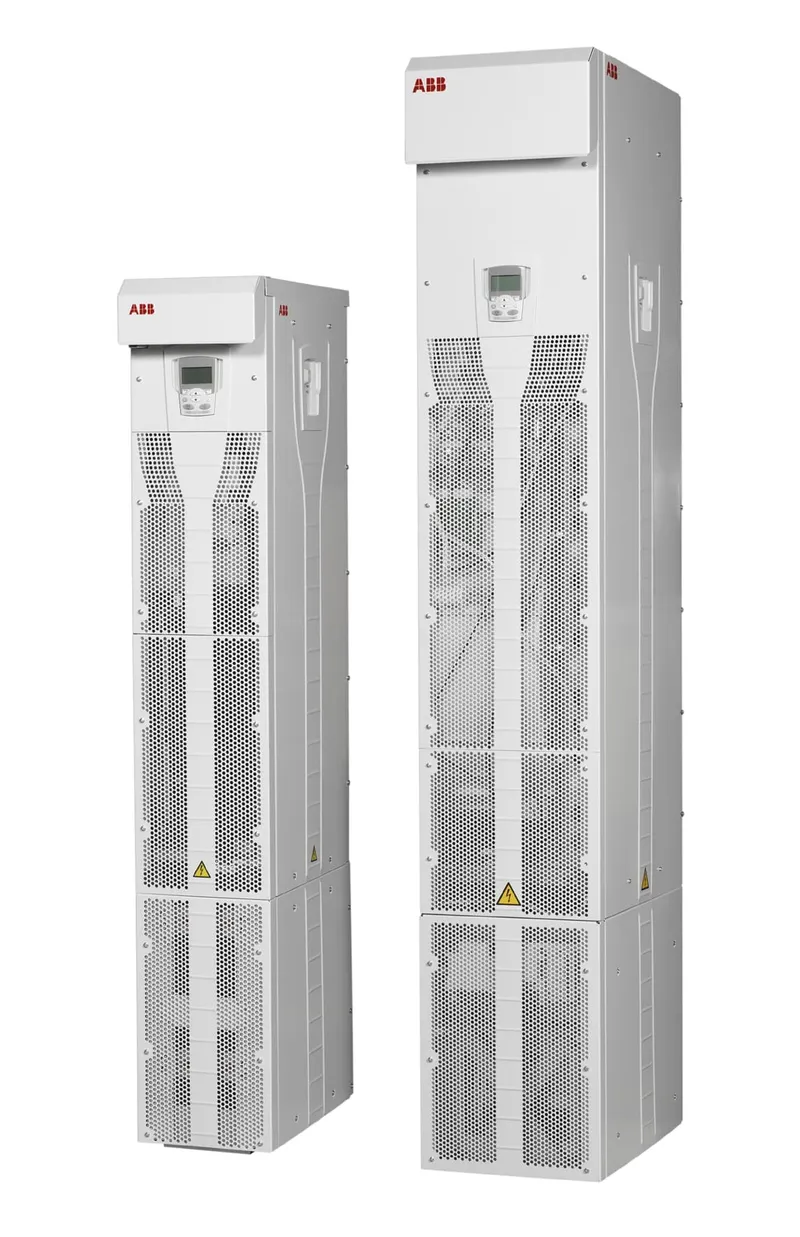

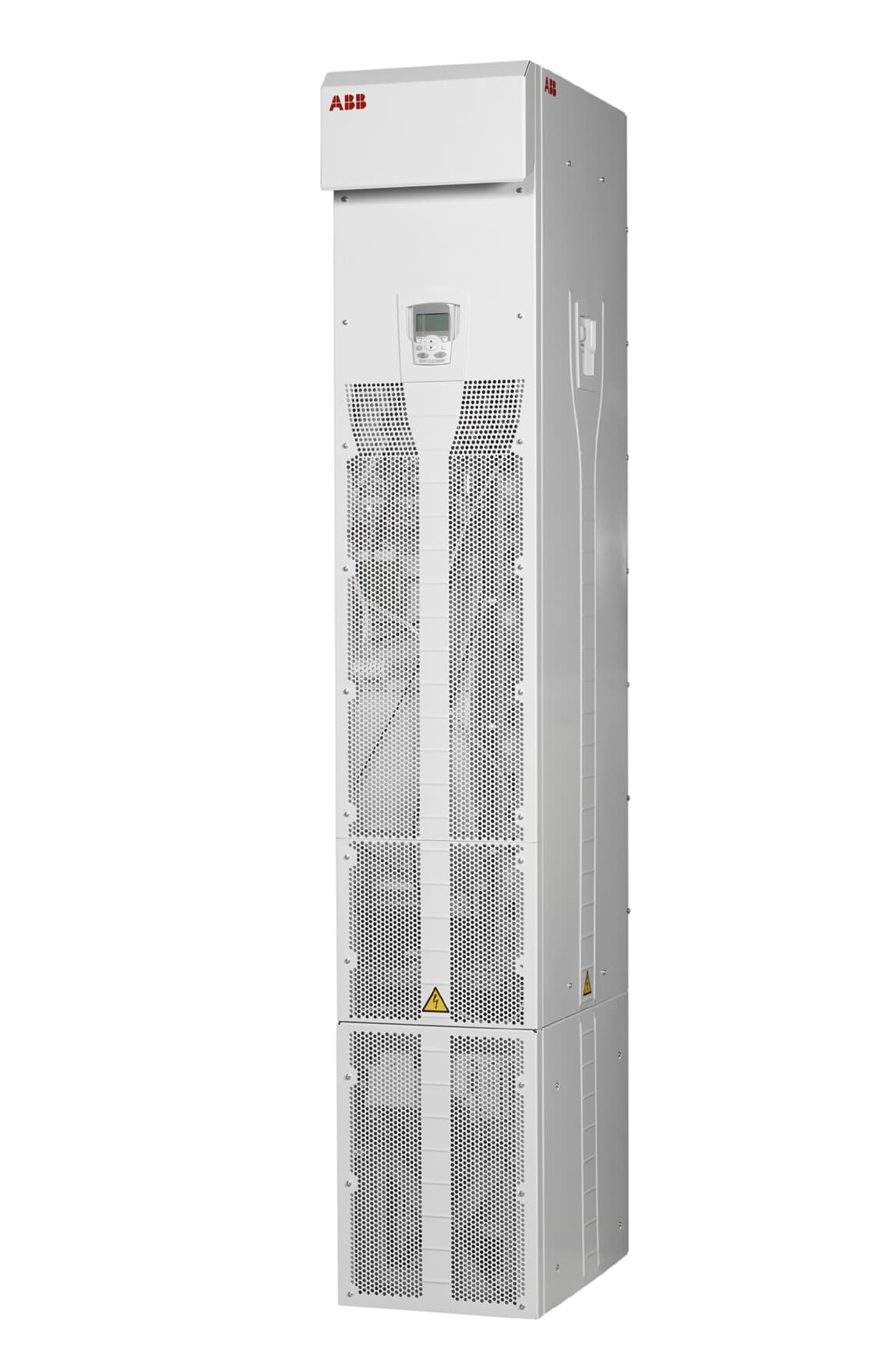

What is the ABB ACS550-02-645A-4?

ACS550 ACS550-02-645A-4 Pn 355kW, I2n 645 A IP21

Specifications

Ordering

Customs Tariff Number	85044088
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS550 ACS550-02-645A-4 Pn 355kW, I2n 645 A IP21 A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	249 kg kg
Product Net Depth / Length	730 mm mm
Product Net Height	2120 mm mm
Product Net Width	510 mm mm

Technical

Number of Phases	3-phase
Frequency (f)	48 ... 63 Hz Hz
Frame Size	R8
Input Voltage (Uin)	380 ... 480 V V
Mounting Type	Free standing units
Output Current, Normal Use (In)	645 A A
Output Current, Heavy-Duty Use (IHD)	590 A A
Output Power, Normal Use (Pn)	355 kW, 600 Hp kW
Output Power, Heavy-Duty Use (PHD)	315 kW, 500 Hp kW

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001
