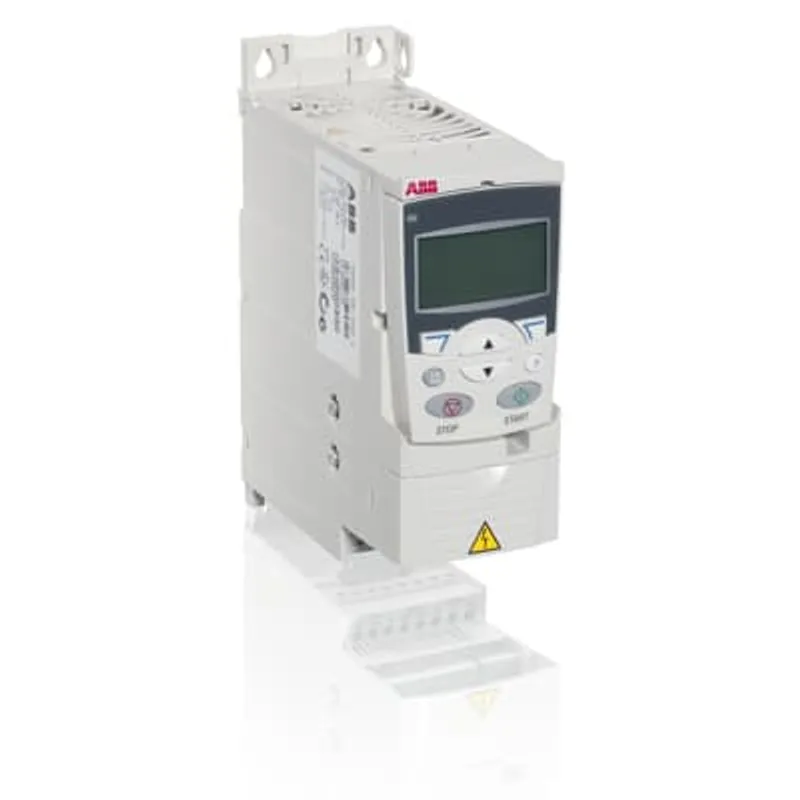

ABB ACS355-01E-02A4-2
LV AC machinery drive module, IEC: Pn 0.37 kW, 2.4 A ( )
- MPN
- ACS355-01E-02A4-2
- Category
- Machinery Drive
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB ACS355-01E-02A4-2?
The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications.
The drive is user-friendly, yet it provides a wide range of built-in technology such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.
Specifications
Specifications
| Customs Tariff Number | 85044085 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS355-01E-02A4-2 Pn 0,37kW, I2n 2,4A IP20 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 1.7 kg |
| Product Net Depth / Length | 161 mm |
| Product Net Height | 239 mm |
| Product Net Width | 70 mm |
| Package Level 1 Depth / Length | 348 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Width | 220 mm |
| Package Level 1 Units | 1 carton |
| Number of Phases | 1-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Multiple Battery Information | No battery / cell included |
| Frequency (f) | 50/60 Hz |
| Frame Size | R1 |
| Input Voltage (Uin) | 200 … 240 V |
| Mounting Type | Module for cabinet building |
| Communication Protocol | MODBUS, LON, DeviceNet, PROFIBUS, CAN, EtherNet/IP, PROFINET IO, TCP/IP, Other Bus Systems |
| Number of Hardware Interfaces | Industrial Ethernet 0, PROFINET 0, RS-232 1, RS-422 0, RS-485 1, Serial TTY 0, USB 0, Parallel 0, Other 1 |
| Includes | Without control unit, Without optical interface, With PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Number of Digital In/Outputs | 5/1 |
| Output Current, Normal Use (In) | 2.4 A |
| Output Power, Normal Use (Pn) | 0.37 kW |
| Output Power, Light-Overload Use (PLD) | 0.37 kW |
| Power Consumption (@Pcons) | 27 W |
| Ecodesign Exemption | Energy efficiency data is not provided for the 1~230 V drives. The drives with one phase input are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781). |
| Declaration of Conformity - CE | EU Declaration of Conformity for ACS355 and ACS150 |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20230303 |
| RoHS Declaration | EU Declaration of Conformity for ACS355 and ACS150 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 05ed5d6e-fe6f-487e-948e-6f52b565aade Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
ACS355-01E-02A4-2: frequently asked questions
When can ACS355-01E-02A4-2 be shipped?
ACS355-01E-02A4-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS355-01E-02A4-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS355-01E-02A4-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS355-01E-02A4-2, subject to availability and destination.
