Home / ABB / ACQ580 / ABB ACQ580-PD-06A6-2+B056

ABB

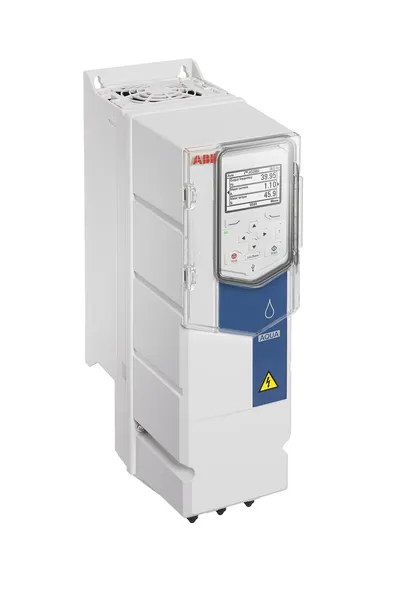

ABB ACQ580-PD-06A6-2+B056

LV AC Packaged drive with disconnect and fuses, UL: Pld 2 Hp, 6.6 A, 460 V ( )

MPN: ACQ580-PD-06A6-2+B056
Category: ACQ580

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACQ580-PD-06A6-2+B056?

The ACQ580-PD drives deliver the ACQ580 Product Series features delivering innovative pump features for the water and wastewater industry, securing energy-efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted packaged drive has built-in pump application functionality such as sensorless flow calculation, multi-pump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer, an optional Bluetooth® control panel, and a UL-approved electronic motor overload. The built-in energy calculator visualizes the energy savings achieved with the use of the drive.

Specifications

Ordering

Customs Tariff Number	85044080
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACQ580-PD-06A6-2+B056, PLD 1.5 HP, I2LD 6.6 A A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	19 lb
Product Net Depth / Length	12.4 in
Product Net Height	26.5 in
Product Net Width	6.5 in

Technical

Number of Phases	3-phase
Degree of Protection	IP55
Enclosure Type NEMA	Type12
Frequency (f)	50/60 Hz Hz
Frame Size	Undefined
Input Voltage (Uin)	208 … 240 V V

Technical UL

Output Current, Light-Overload Use (UL)	6.6 A A
Output Power, Light-Overload Use (UL)	2 Hp

External Classifications and Standards

UNSPSC

39121007
