Home / ABB / ACQ580 / ABB ACQ580-PD-011A-6+B058

ABB

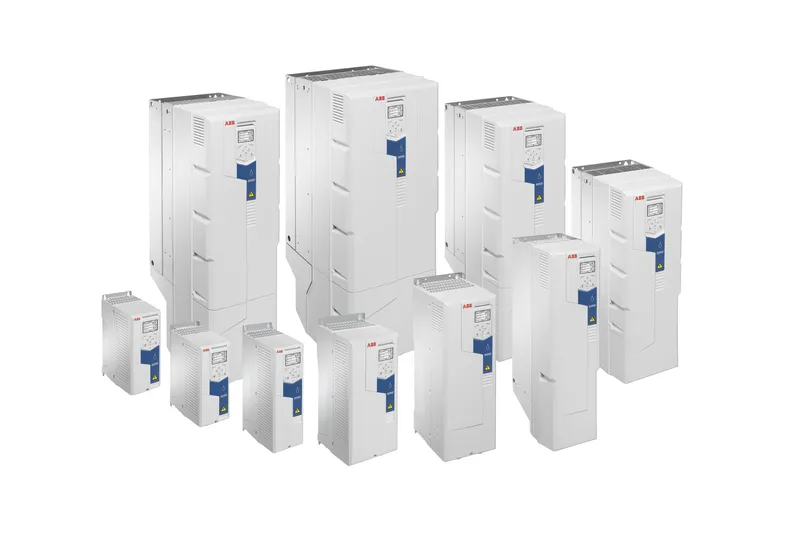

ABB ACQ580-PD-011A-6+B058

LV AC Packaged drive with disconnect and fuses, UL: Pld 10 Hp, 11 A, 575 V ( )

MPN: ACQ580-PD-011A-6+B058
Category: ACQ580

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACQ580-PD-011A-6+B058?

The ACQ580-PD drives deliver the ACQ580 Product Series features delivering innovative pump features for the water and wastewater industry, securing energy-efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted packaged drive has built-in pump application functionality such as sensorless flow calculation, multi-pump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer, an optional Bluetooth® control panel, and a UL-approved electronic motor overload. The built-in energy calculator visualizes the energy savings achieved with the use of the drive.

Specifications

Ordering

Customs Tariff Number	85044080
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACQ580-PD-011A-6+B058, PLD 10 HP, I2LD 11 A A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	77 lb
Product Net Depth / Length	14 in
Product Net Height	33.35 in
Product Net Width	17.7 in

Technical

Number of Phases	3-phase
Enclosure Type NEMA	Type3R
Frequency (f)	50/60 Hz Hz
Frame Size	Undefined
Input Voltage (Uin)	525 … 600 V V

Technical UL

Output Current, Light-Overload Use (UL)	11 A A
Output Power, Light-Overload Use (UL)	10 Hp

External Classifications and Standards

UNSPSC

39121007
