ABB

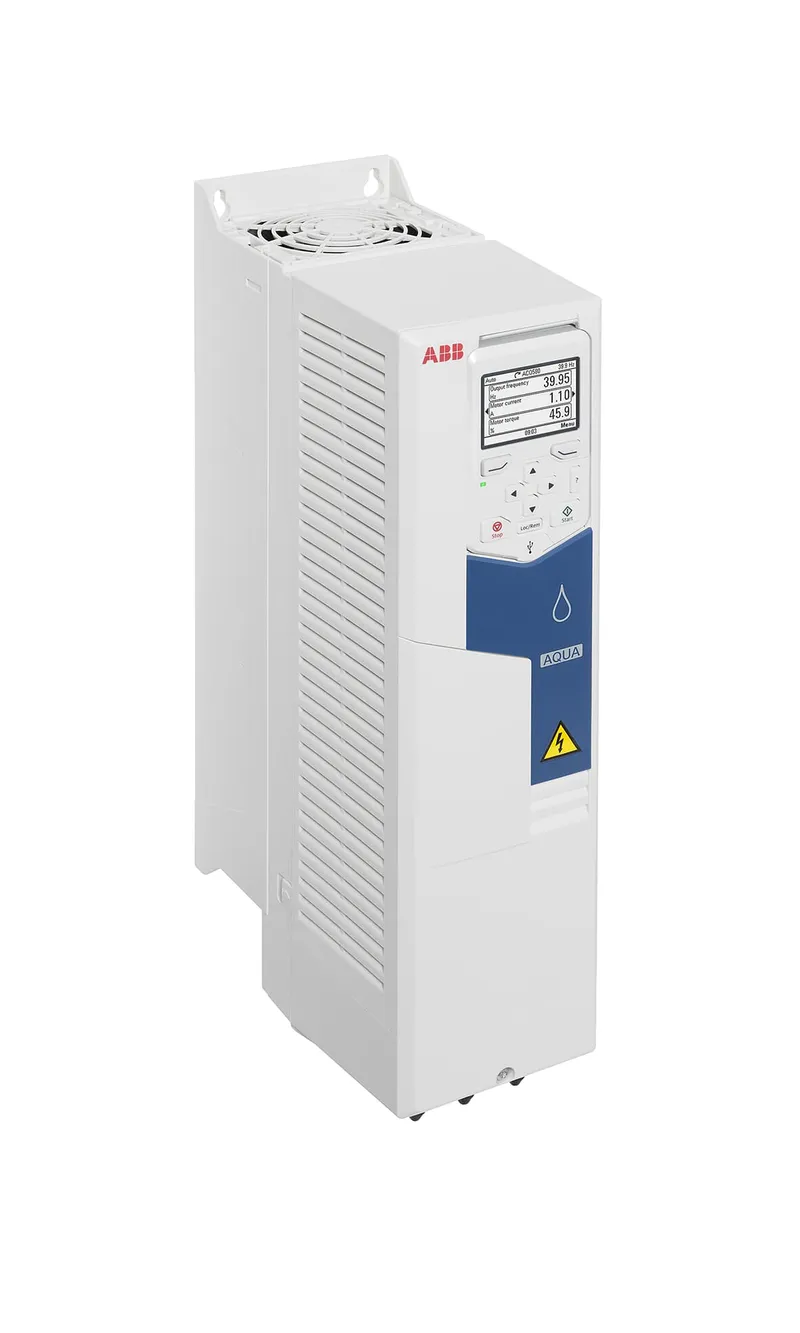

ABB ACQ580-01-024A-2+B056

LV AC wall-mounted drive for water and wastewater, UL: Pld 8 Hp, 24 A, 460 V ( )

MPN: ACQ580-01-024A-2+B056
Category: ACQ580-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACQ580-01-024A-2+B056?

The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.

Specifications

Ordering

Customs Tariff Number	85044080
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACQ580-01-024A-2+B056, PLD 7.5 HP, I2LD 24 A A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	15 lb
Product Net Depth / Length	9.4 in
Product Net Height	19.8 in
Product Net Width	5.06 in

Technical

Number of Phases	3-phase
Degree of Protection	IP55
Enclosure Type NEMA	Type12
Frequency (f)	50/60 Hz Hz
Frame Size	Undefined
Input Voltage (Uin)	208 … 240 V V

Technical UL

Output Current, Heavy-Duty Use (UL)	5 A A
Output Current, Light-Overload Use (UL)	24 A A
Output Power, Heavy-Duty Use (UL)	5 Hp
Output Power, Light-Overload Use (UL)	8 Hp

External Classifications and Standards

UNSPSC

39121007
