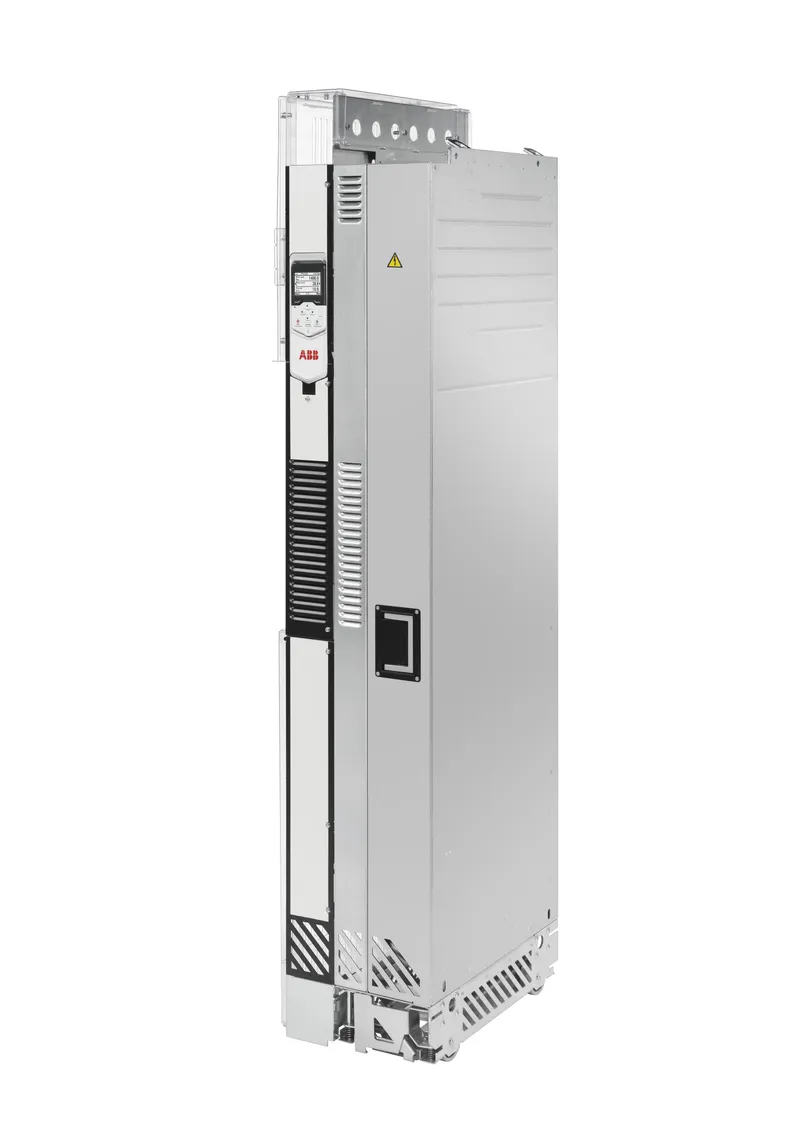

ACS880-04-820A-5
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ACS880-04 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 165 kg |
Shipping & availability
When can 3AUA0000139080 be shipped?
3AUA0000139080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3AUA0000139080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3AUA0000139080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3AUA0000139080, subject to availability and destination.
The ACS880-04 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The ACS880-04 modules have all the essential features built-in including a choke for harmonic filtering as standard, and options such as a brake chopper, EMC filter and communication protocol adapter, functional safety and I/O extension modules. The all built-in design combined with IP20 protection significantly simplifies engineering. The drive’s compact size, flexible cabling directions and versatile mounting possibilities from narrow bookshelf to flat mounting and horizontal mounting make it an ideal fit for almost any enclosure. The control unit with I/O and communication connections can be mounted outside the power module or integrated into it.
Specifications
Ordering
| Customs Tariff Number | 85044087 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS880-04-820A-5 PN: 560 kW, IN: 820 A kW |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 165 kg, 363.763 lb kg |
| Product Net Depth / Length | 506 mm, 19.921 in mm |
| Product Net Height | 1741 mm, 68.543 in mm |
| Product Net Width | 350 mm, 13.780 in mm |
| Package Level 1 Depth / Length | 2050 mm, 80.709 in mm |
| Package Level 1 Height | 500 mm, 19.69 in mm |
| Package Level 1 Width | 650 mm, 25.591 in mm |
| Package Level 1 Units | 1 case |
Technical
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Altitude | 4000 m m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Sound dB (A) | 71 dB(A) A |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g V |
| Frequency (f) | 47.5 ... 63 Hz Hz |
| Frame Size | R11 |
| Input Voltage (Uin) | 380 ... 500 V V |
| Mounting Type | Module |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 4, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 2 |
| Output Current, Normal Use (In) | 820 A A |
| Output Current, Light-Overload Use (ILD) | 807 A A |
| Output Current, Heavy-Duty Use (IHD) | 625 A A |
| Output Power, Normal Use (Pn) | 560 kW kW |
| Output Power, Light-Overload Use (PLD) | 560 kW kW |
| Output Power, Heavy-Duty Use (PHD) | 450 kW kW |
| Power Consumption (@Pcons) | 9995 W W |
| Apparent Power Output | 710 kV·A A |
| Efficiency Level | IE2 |
| Standby Loss | 625 W W |
| Temperature Rating | Maximum 40 °C |
Technical UL
| Output Current, Heavy-Duty Use (UL) | 625 A A |
| Output Current, Light-Overload Use (UL) | 807 A A |
| Output Power, Heavy-Duty Use (UL) | 500 Hp |
| Output Power, Light-Overload Use (UL) | 700 Hp |
Certificates and Declarations
| Declaration of Conformity - CE | 3AXD10000497831 |
| REACH Date | 20250905 |
| REACH Declaration | 9AKK107992A7060 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | 3AXD10000497831 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Environmental
| SCIP | d55d9897-364b-417a-a3f9-8b6eee5010b6 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
External Classifications and Standards
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
