ABB 1SVM320010R0000

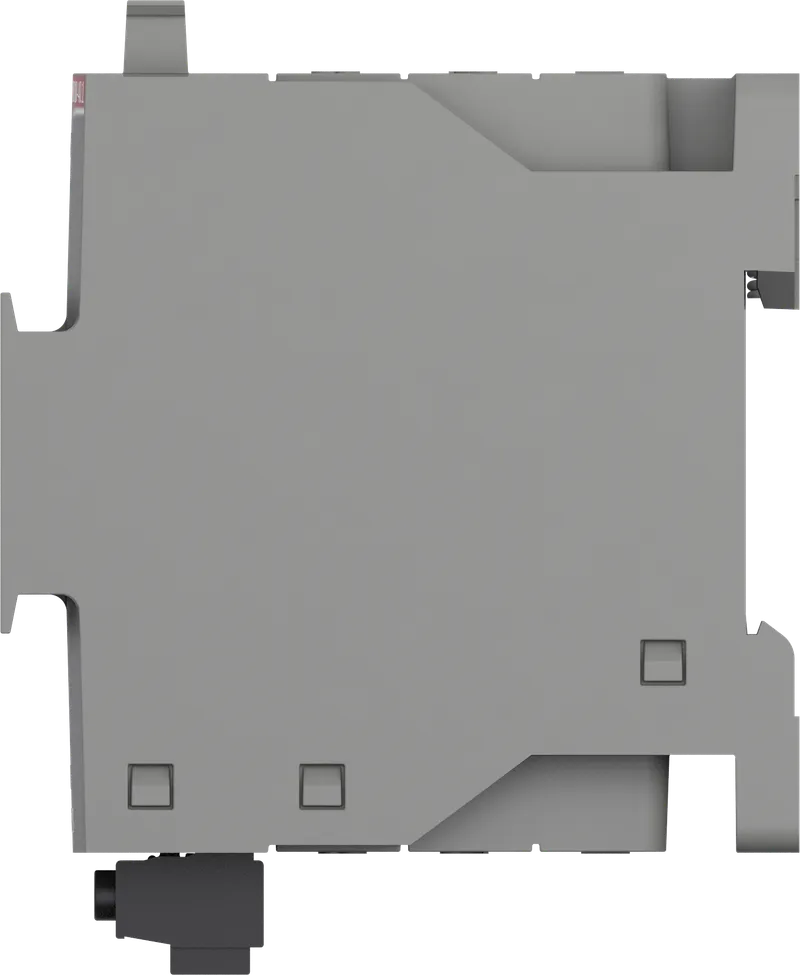

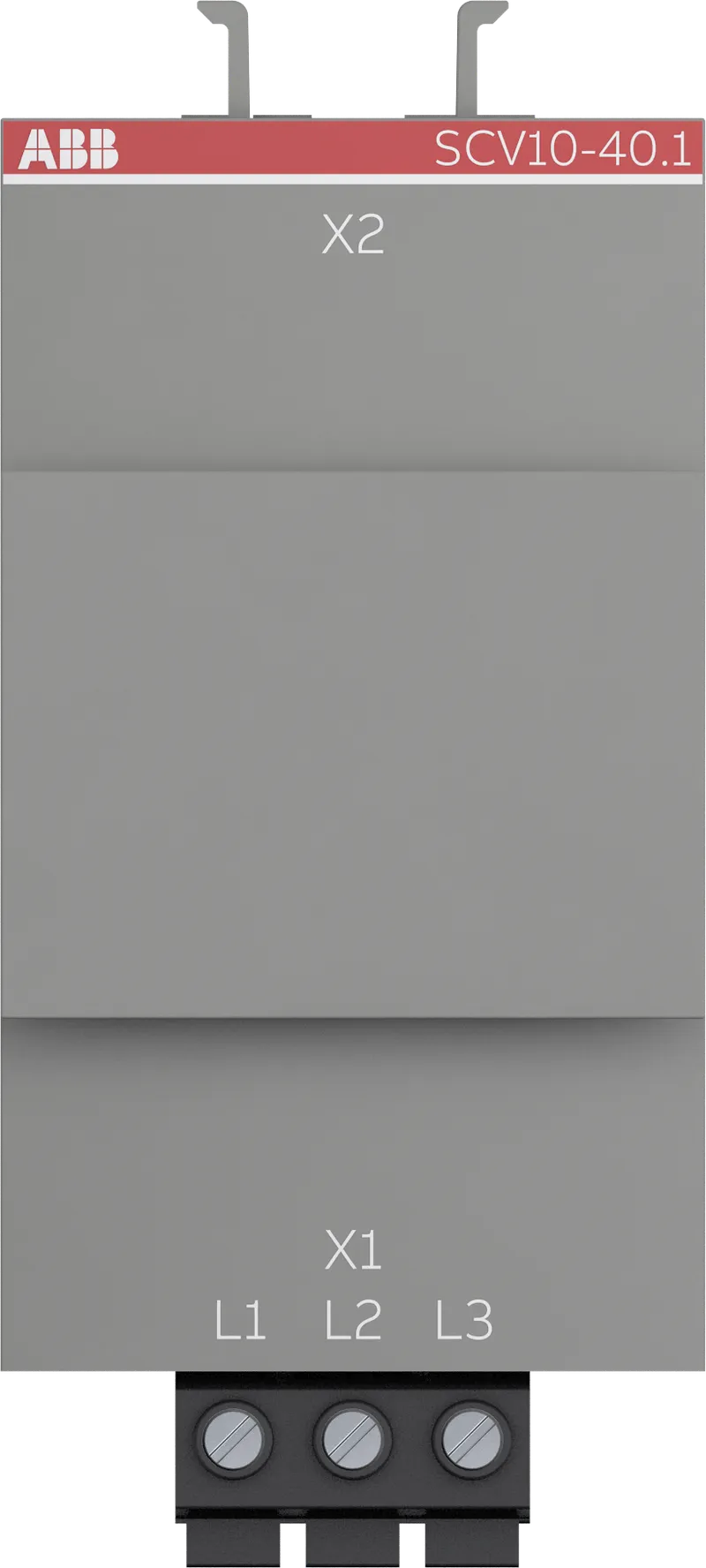

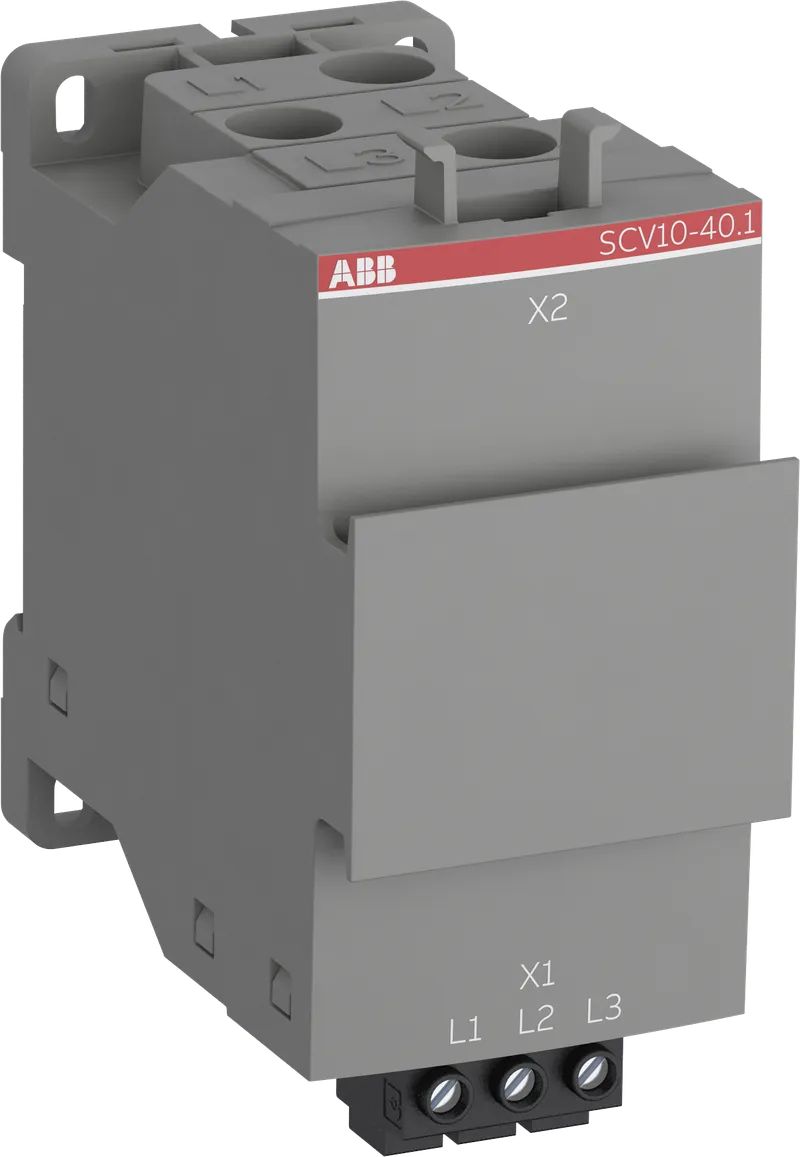

SCV10-40 Current - Voltagesensor 40 A, 690 V AC
- MPN
- 1SVM320010R0000
- EAN
- 4053546041828
- Category
- ABB Block Contactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SVM320010R0000?
The SCV10-40 is an intelligent sensor unit for measuring voltage, current, frequency and further derived physical quantities such as cos phi, real power, etc. It is equipped with feed through current sensors to measure the current in all three phases of the connected load. It also offers the option to measure the line to line voltage of the three phases up to 690 V AC.A ribbon cable connects the SCV10
with the SFM1 module and is also supplied from there. The SCV10-40 offers thermal overload protection according to IEC/EN 60947 for 1/3 phase induction motors. Relevant parameters like the trip class and nominal current can be configured from within the PLC.
Specifications
General
| Order code (ABB product ID) | 1SVM320010R0000 |
| Type | SCV10-40.1 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Height | 82 mm |
| Product Net Weight | 0.23 kg |
Technical
| Number of Poles | 3P |
| Standards | IEC/EN 60947-4-1, IEC/EN 60947-1 |
| Rated Operational Voltage | 690 V AC, 400 V AC, 480 V AC, 277 V AC |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Rated Operational Current (I<sub>e</sub>) | 40 A |
| Power Loss | Approximately 0.48 W |
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Wire Stripping Length | 8 mm |
| Degree of Protection | IP20 |
| Tightening Torque | 0.5 ... 0.6 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | 1SVM120012R0000 |
| Product Name | Current - Voltagesensor |
Technical UL/CSA
| Connecting Capacity UL/CSA | 24 ... 12 AWG |
Environmental
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
| Pollution Degree | 3 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | B |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121552 |
| IDEA Granular Category Code (IGCC) | 4776 >> Electronic motor control and protection device |
