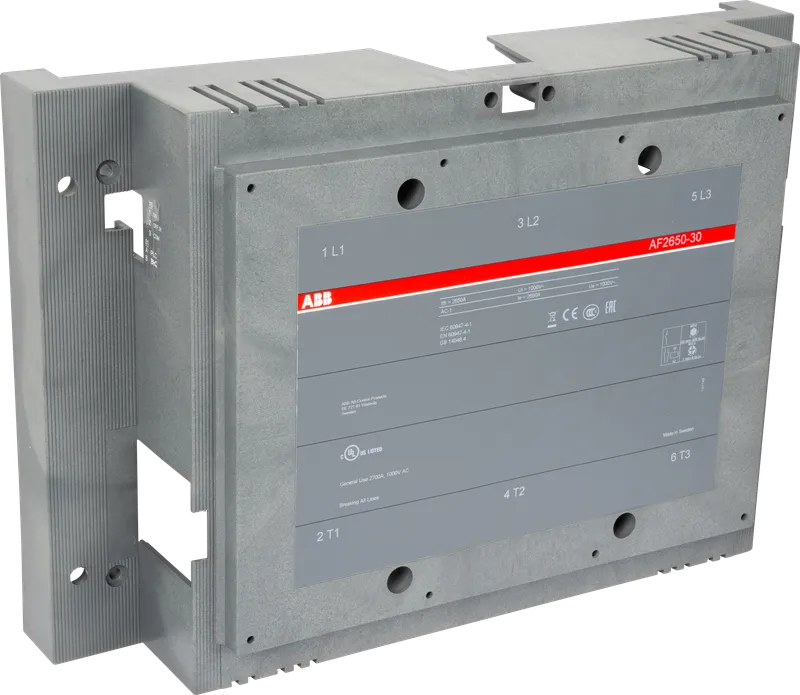

ABB 1SFN165503R9222
AF2650 Cover Replacement Part
- MPN
- 1SFN165503R9222
- EAN
- 7320500493090
- Category
- ABB Block Contactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SFN165503R9222?
AF2650 Cover Replacement Part
Specifications
General
| Order code (ABB product ID) | 1SFN165503R9222 |
| Type | Spare Part Cover AF2650 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Dimensions
| Product Net Width | 438 mm |
| Product Net Depth / Length | 122 mm |
| Product Net Height | 392 mm |
| Product Net Weight | 2.48 kg |
Technical
| Rated Operational Current DC-1 (I<sub>e</sub>) | (110 V) 2 Poles in Series, 40 °C 2650 A, (220 V) 3 Poles in Series, 40 °C 2650 A, (220 V) 3 Poles in Series, 70 °C 2650 A, (600 V) 3 Poles in Series, 40 °C 2650 A, (850 V) 3 Poles in Series, 40 °C 2650 A |
| Suitable For | AF2650 |
| Product Name | Replacement Part |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
1SFN165503R9222: frequently asked questions
When can 1SFN165503R9222 be shipped?
1SFN165503R9222 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFN165503R9222 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFN165503R9222 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN165503R9222, subject to availability and destination.
