ABB 1SBN050500R1003

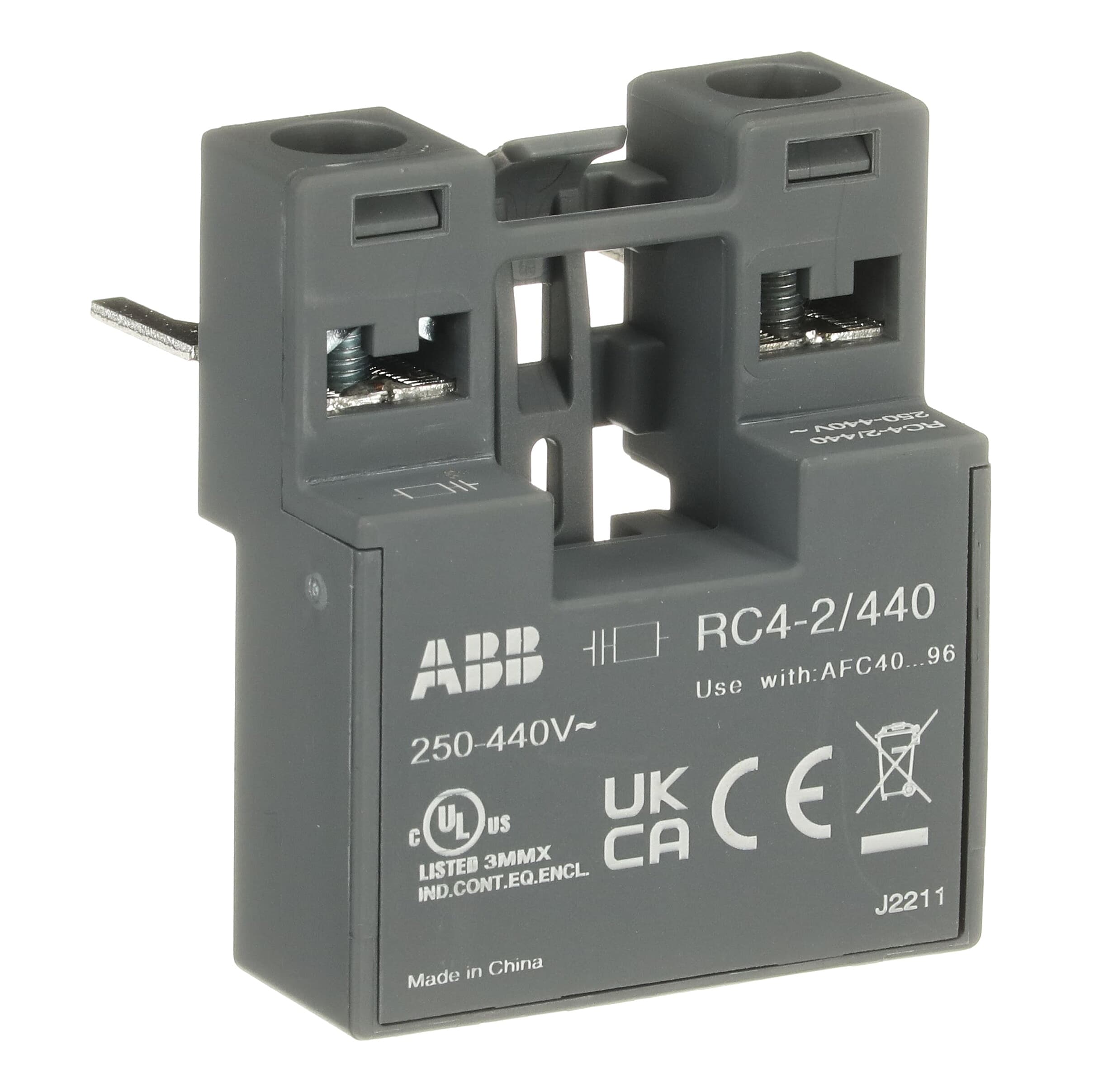

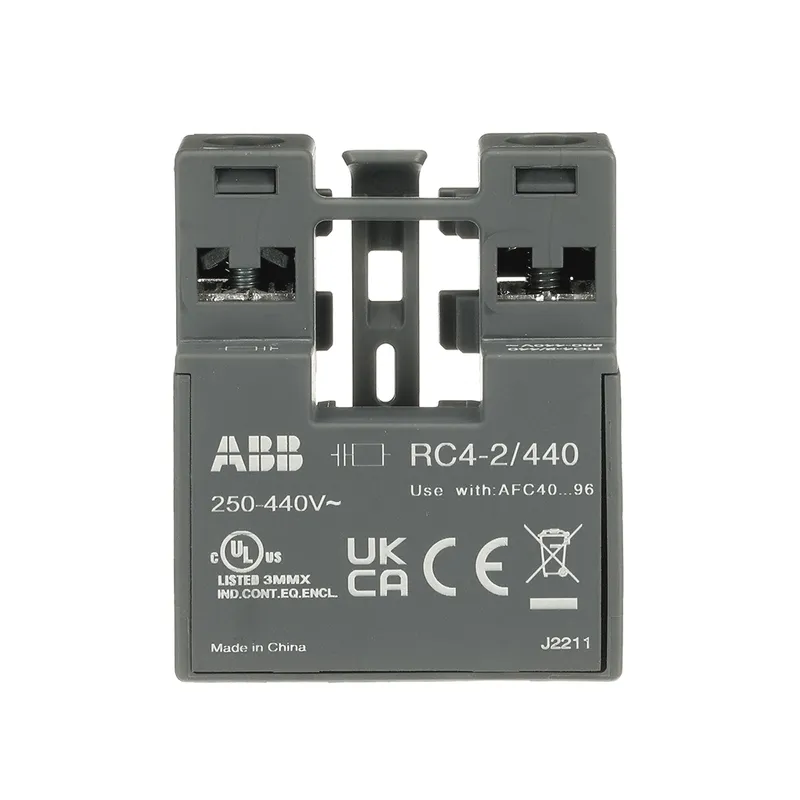

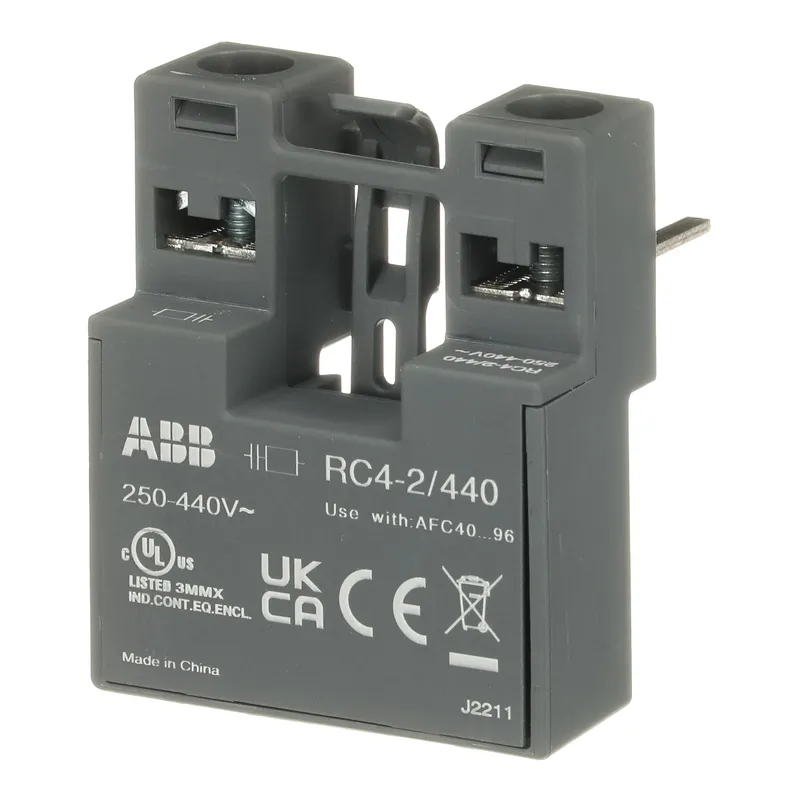

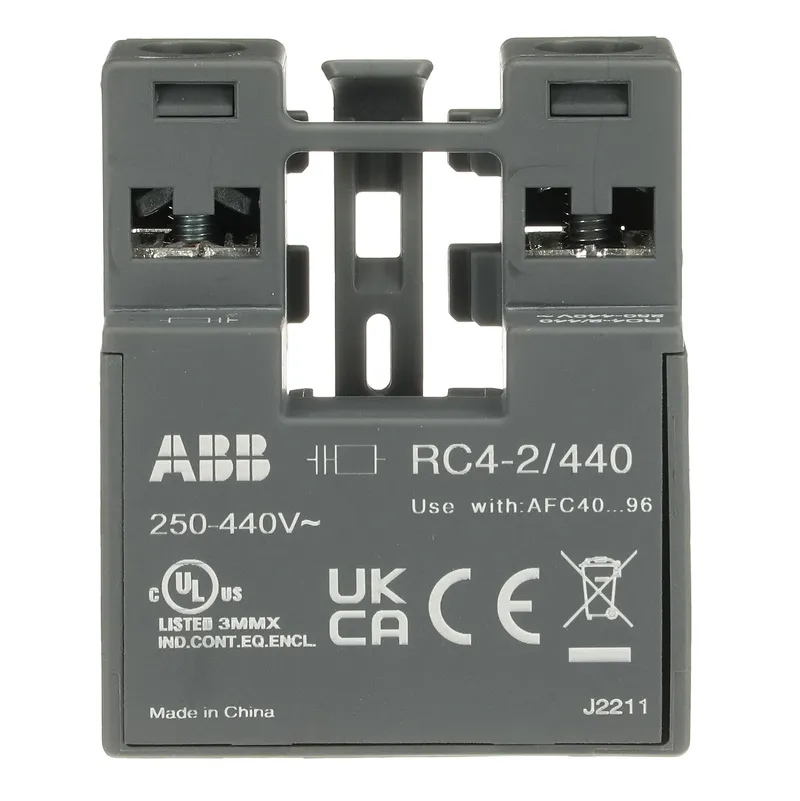

RC4-2/440 Surge Suppressor
- MPN
- 1SBN050500R1003
- EAN
- 3471523020528
- Category
- ABB Block Contactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SBN050500R1003?
RC4-2/440 is a RC type surge suppressor designed to reduce the maximum overvoltage peak value and to limit the high pre-damping voltage frequencies that occurs on the control circuit when operating a contactor. The opening of a contactor coil can causes high voltage surges of several kV that can cause interferences and damages to sensitives electronic in the installation. The RC4-2/440 can operate une control voltage within 250 ... 440 V AC 50/60 Hz. The RC4 surge suppressor is mounted directly on the AFC contactor, either on top or bottom, and is including the coil connection terminals. RC4 are designed specifically for AFC40 ... AFC96 contactors.
Specifications
General
| Order code (ABB product ID) | 1SBN050500R1003 |
| Type | RC4-2/440 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85363030 |
Dimensions
| Product Net Width | 36 mm |
| Product Net Depth / Length | 44 mm |
| Product Net Height | 32 mm |
| Product Net Weight | 0.015 kg |
Technical
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz / 60 Hz 250 ... 440 V AC |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Control Circuit 10 mm |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AFC40, AFC52, AFC65 |
| Suitable for Product Class | Block Contactors |
| Product Name | Surge Suppressor |
Technical UL/CSA
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
Environmental
| Ambient Air Temperature | Operation -20 ... +70 °C, Storage -40 ... +80 °C |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121610 |
| IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
1SBN050500R1003: frequently asked questions
When can 1SBN050500R1003 be shipped?
1SBN050500R1003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN050500R1003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN050500R1003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN050500R1003, subject to availability and destination.
