ABB 1SBN020114R1000

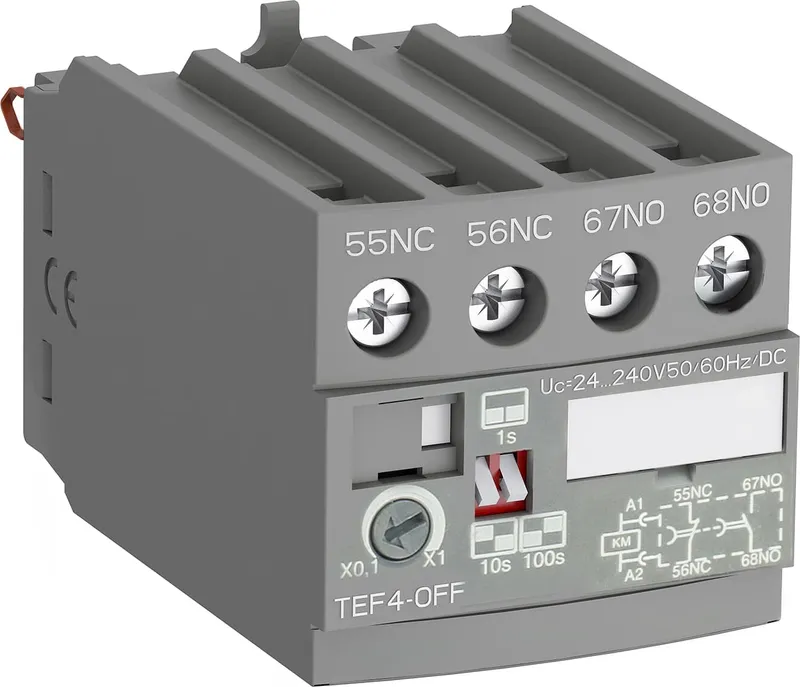

TEF4-OFF Frontal Electronic Timer
- MPN
- 1SBN020114R1000
- EAN
- 3471523130654
- Category
- ABB Block Contactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SBN020114R1000?
TEF4-OFF is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4 electronic timers are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays. A mechanical indicator allows to show the state of the contactor. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4 is available for a wide control voltage range 24...240 V AC/DC. TEF4 allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4-OFF is activated by opening the device on which the timer is mounted. The OFF-delay version operates without additional control supply.
Specifications
General
| Order code (ABB product ID) | 1SBN020114R1000 |
| Type | TEF4-OFF |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
Dimensions
| Product Net Width | 43 mm |
| Product Net Depth / Length | 67.7 mm |
| Product Net Height | 41.6 mm |
| Product Net Weight | 0.065 kg |
Technical
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, UL 60335-2-40 LZGH2 A2L, CSA C22-2 No. 14-18, CSA C22.2 No. 60335-2-40 LZGH2 A2L |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC, Auxiliary Circuit 24 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (24 / 127 V) 3 A, (220 / 240 V) 1.5 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 1 A / 24 W |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 8 A, for 1 s 8 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 400 V, acc. to UL/CSA 300 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Power Loss | at 3 A per Pole 0.1 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Timer Relay Type | OFF-Delay |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NFC22E, NFC31E, NFC40E |
| Product Name | Electronic Timer |
Technical UL/CSA
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
Environmental
| Ambient Air Temperature | Close to Contactor for Storage -40 ... +80 °C, Operation -25 ... +70 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Vibrations | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | K |
| ETIM 7 | EC002060 - Timer block |
| ETIM 8 | EC002060 - Timer block |
| ETIM 9 | EC002060 - Timer block |
| eClass | V11.0 : 27371308 |
| UNSPSC | 39121523 |
| IDEA Granular Category Code (IGCC) | 4746 >> Timer controls |
| E-Number (Finland) | 3706000 |
| E-Number (Sweden) | 3210257 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (10)
- REACH Declaration (2CMT2021-006202)
- RoHS Declaration (2CMT2021-006277)
- A2L Certificate – UL (9AKK108469A4895)
- A2L Certificate – UL (9AKK108469A4896)
- CQC Certificate (CQC2012010303572179)
- Declaration of Conformity - CCC (2020980303000172)
- Declaration of Conformity - CE (1SBD250008U1000)
- Declaration of Conformity - UKCA (1SBD250039U1000)
- UL Certificate (UL-US-L252354-192-31702102-2)
- UL Certificate (UL-CA-L252354-392-31702102-2)
