WAT100-R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SAF900600R0001 be shipped?
1SAF900600R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAF900600R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAF900600R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAF900600R0001, subject to availability and destination.

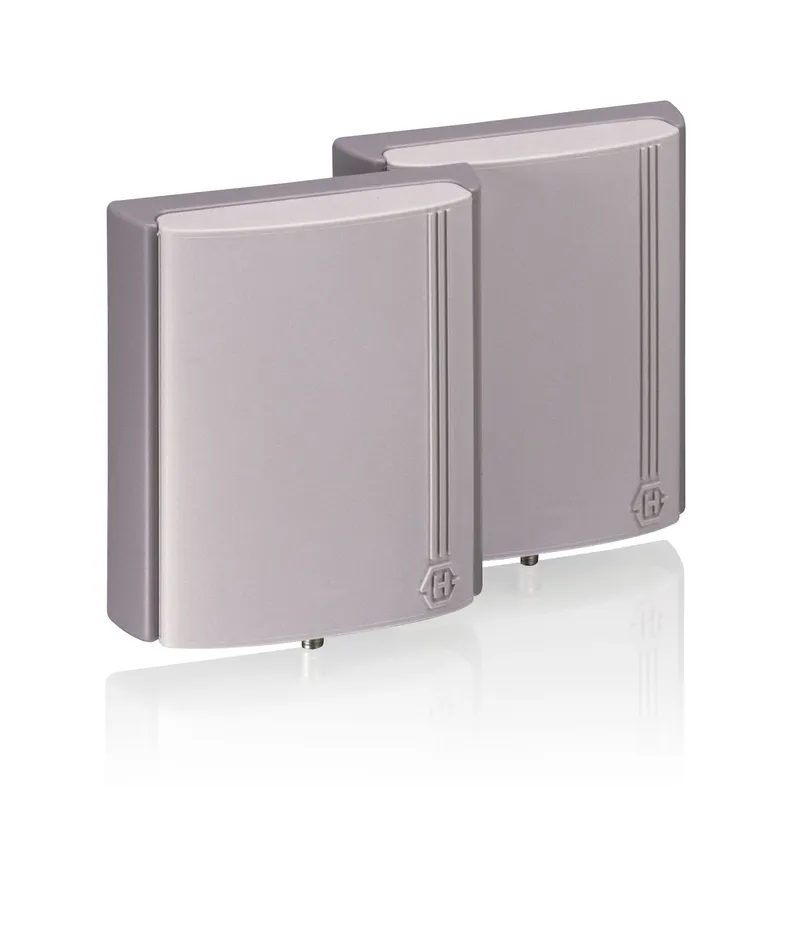

WAT100-R, antenna transmits and receives the signals exchanged betweeN, the input module and the wireless proximity switches. Two antennas with different polarizatioN, (WAT100-L / WAT100-R) are connected to each input module.
Specifications
Additional Information
| ABB Type Designation | WAT100-R |
| CN8 | 85177011 |
| Country or Territory of Origin | Germany, Switzerland |
| Customs Tariff Number | 85177000 |
| Data Sheet, Technical Information | 2CDC142007D0204 |
| Declaration of Conformity - CE | 1SAD938501-0069 |
| Degree of Protection | acc. to IEC 60529 IP54 |
| eClass | 27-24-22-92 |
| Environmental Information | 1SAA952009-2401 |
| Frame Size | Spare_Parts_Sc |
| Gross Weight | 0.11 kg kg |
| Instructions and Manuals | 2CDC142010D0205 |
| Invoice Description | WAT100-R Antenna for input module |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Object Classification Code | B |
| Order Multiple | 1 piece |
| Product Depth | 32 mm mm |
| Product Main Type | WAT100 |
| Product Name | Antenna |
| Product Net Depth / Length | 37 mm mm |
| Product Net Height | 100 mm mm |
| Product Net Weight | 0.1 kg kg |
| Product Net Width | 105 mm mm |
| Product Type | PLC-Wireless |
| Quote Only | No |
| RoHS Declaration | 1SAA952008-4401 |
| RoHS Information | No declaration needed |
| Selling Unit of Measure | piece |
| Short Description | WAT100-R, Antenna for input module |
| Stocked At (Warehouses) | Menden, Germany, Bairro Santo Antonio, Brazil |
| Two Speed Motor | No |
| UNSPSC | 32151703 |
| WEEE Category | Product Not in WEEE Scope |
