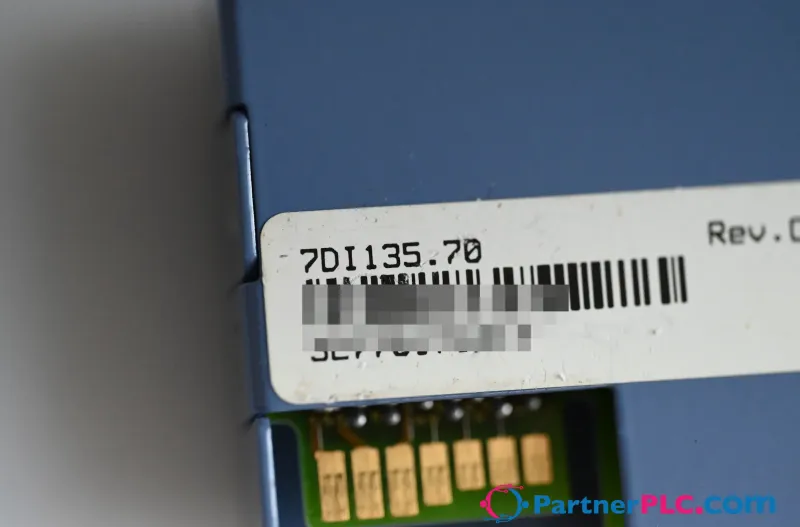

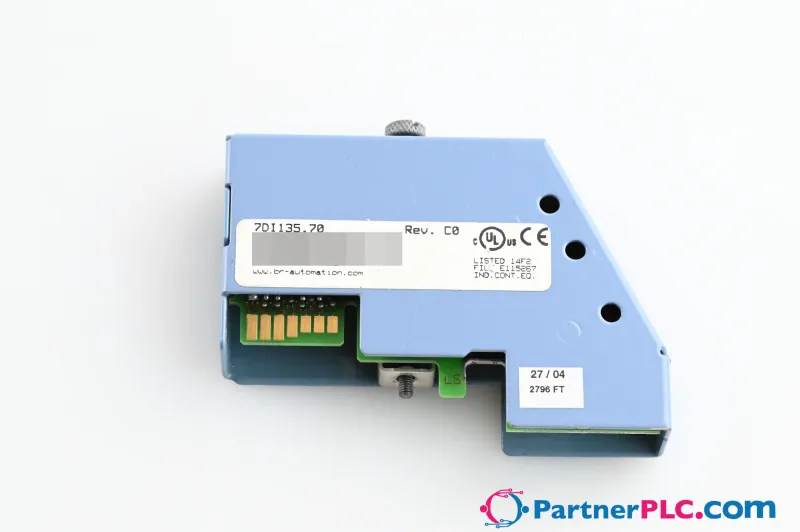

B&R 7DI135.70

MPN: 7DI135.70
Category: Digital I/O Modules

€62.54excl. VAT & shipping

In stock — 7 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 7DI135.70?

Material number: 5AC901.CSSD-03 Description: 60 GB solid-state drive MLC flash memory S.M.A.R.T. support Slide-in compact SATA 3.1 compatible 5AC901.CSSD-0x slide-in compact solid-state drives (SSD) are based on multi-level cell (MLC) technology and compatible with SATA 3.1. They can be used in APC910 and PPC900 system units.

Specifications

General Information

Short Description	2003 digital input module, 4 inputs 24 VDC, sink, incremental encoder operation: 50 kHz, event counter operation: 100 kHz, 1 comparator output 24 VDC, screw-in module, Order terminal block TB712 separately!
C-UL-US Listed	Yes
B&R ID Code	$12
Module Type	B&R 2003 screw-in module
Slot	AF101 adapter module, CP interface
Power Consumption	Max. 0.4 W
Wiring	Sink
Input Voltage – Minimum	18 VDC
Input Voltage – Nominal	24 VDC
Input Voltage – Maximum	30 VDC
Input Frequency – Incremental Encoder Operation	50 kHz
Input Frequency – Event Counter	100 kHz
Switching Threshold – LOW	<5 V
Switching Threshold – HIGH	>15 V
Input Delay	Max. 3 µs (at 18 - 30 V)
Input Current at Nominal Voltage	8 mA
Electrical Isolation	Input - PCC
Signal Form	Square wave pulse
Evaluation	4-fold
Input Frequency	50 kHz
Count Frequency	200 kHz
Phase Offset between Channel A and B	90° ±25°
Counter Size	32 Bit

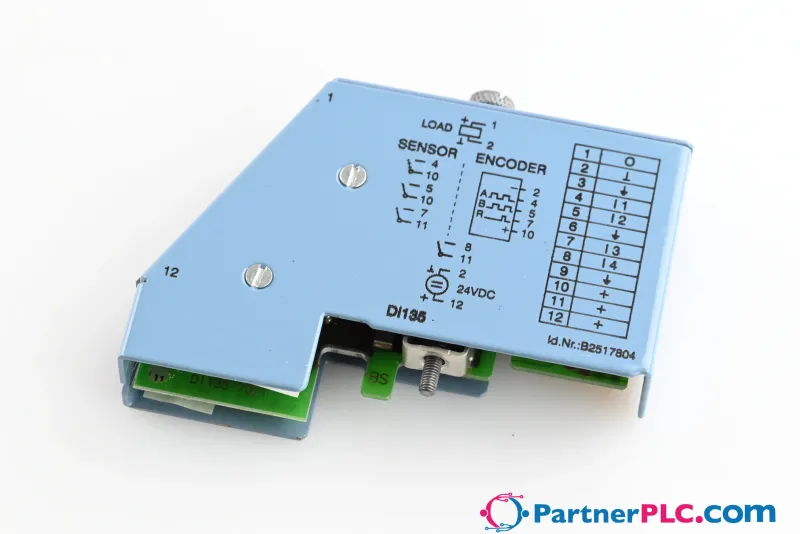

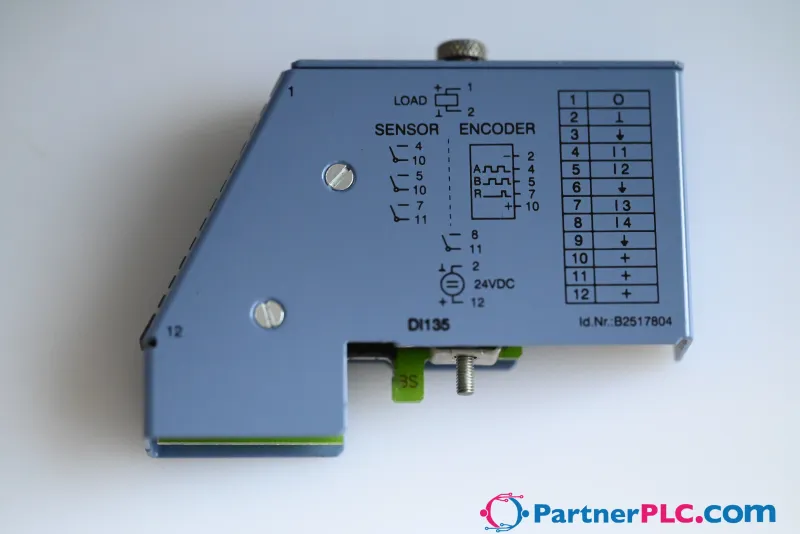

Inputs – Input 1	Channel A
Inputs – Input 2	Channel B
Inputs – Input 3	Reference pulse R
Inputs – Input 4	Reference enable switch ENR
Signal Form	Square wave pulse
Input Frequency	100 kHz
Counter Size	2 x 16 Bit
Inputs – Input 1	Counter 1
Inputs – Input 2	Counter 2
Operating Voltage – Minimum	18 VDC
Operating Voltage – Nominal	24 VDC
Operating Voltage – Maximum	30 VDC
Continuous Current	0.5 A
Maximum Switching Frequency	20 kHz with resistive load
Negative Anode Potential	45 V to 55 V
Diagnosis	Reverse polarity protection, short-circuit protection, software monitor status
Electrical Isolation	Output - PCC

Mechanical Characteristics

Dimensions	B&R 2003 screw-in module
Incremental encoder operation:	Module status in data word 0
Event Counter Operation:	Module status in data word 2

Accessories

Required accessories (order separately)

7TB712.91	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB712.9	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
