Home / B&R / Digital I/O Modules / B&R 3DI475.6

B&RUsed

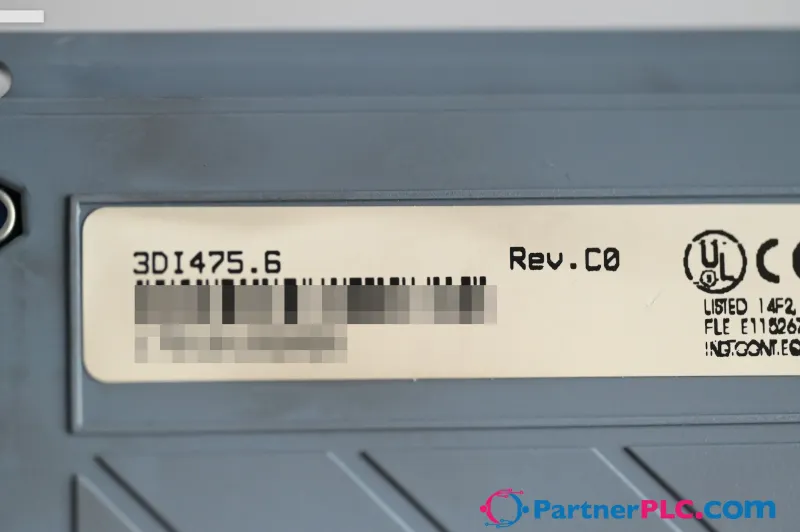

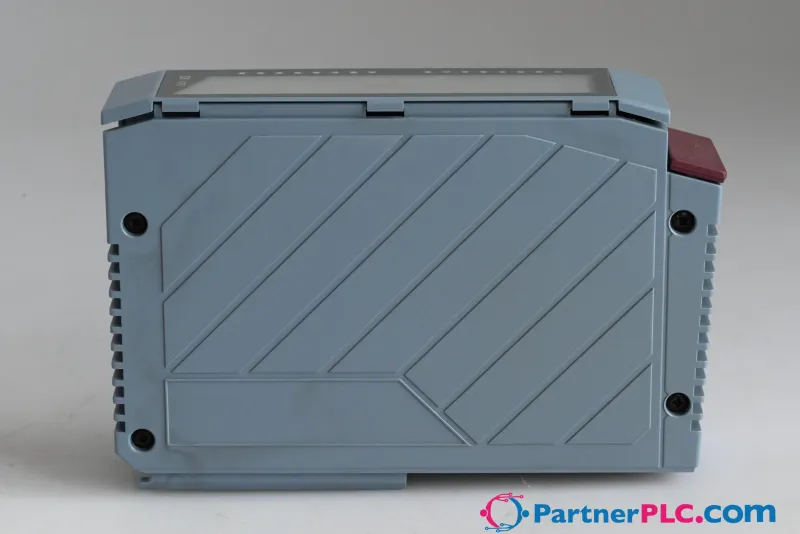

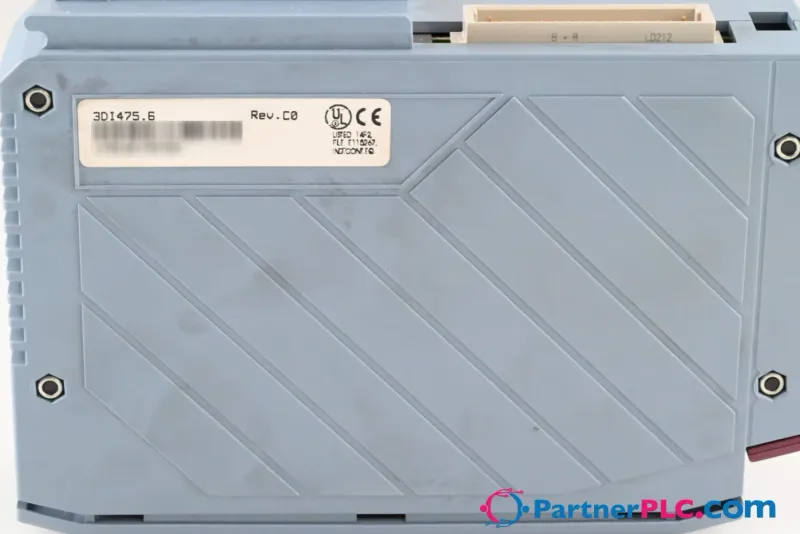

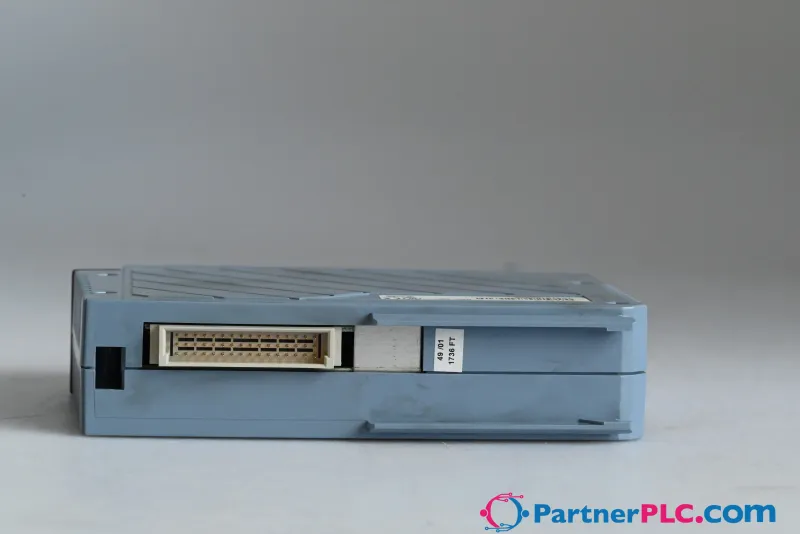

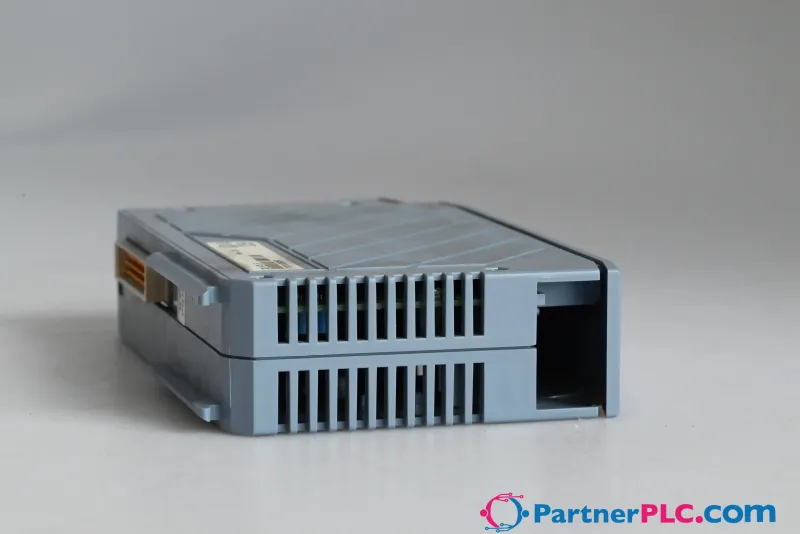

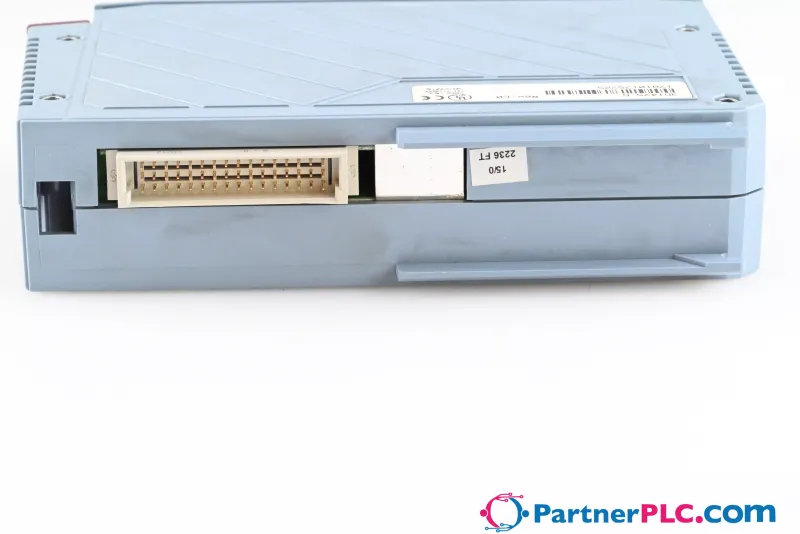

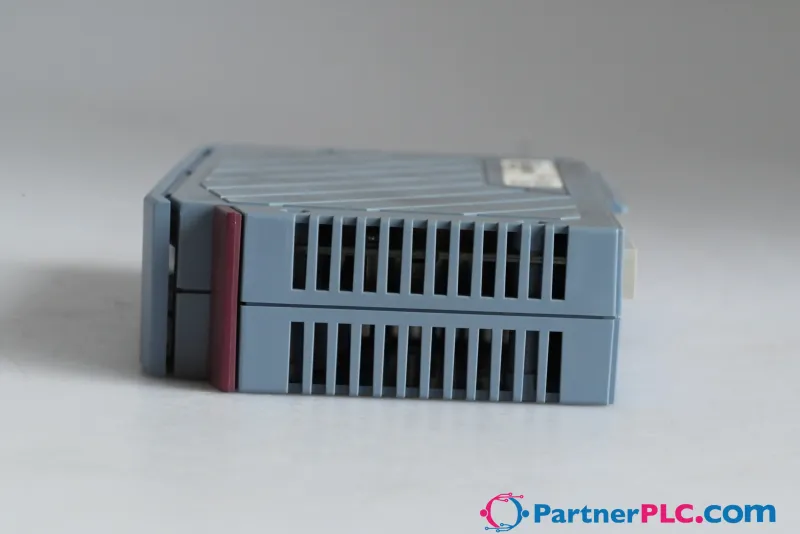

B&R 3DI475.6

MPN: 3DI475.6
Category: Digital I/O Modules

€21.20excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 3DI475.6?

Material number: X20TB72 Description: Tool-free wiring using push-in technology Simple wire release using a lever Labeling option for each terminal connection Plain text labeling possible Access for standard test probes Customized coding possible Own color 240 V encoding This terminal block is used to wire the 240 VAC X20 SafeIO modules with 12 connections.

Specifications

Short description

I/O module

16 digital inputs 24 VDC in 4 groups

General information

Power consumption – 24 VDC	-
Power consumption – 5 VDC	1.5 W
Power consumption – Total	1.5 W
Electrical isolation – Group - Group	Yes
Electrical isolation – Channel - Channel	No (same group)
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	I/O function per channel

Digital inputs

Input filter – Hardware	≤12 ms
Input filter – Software	-
Nominal voltage	24 VDC
Input circuit	Sink or source

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.

Accessories

Required accessories (order separately)

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3DI475.6PDF · 351 KB · 1.0 (06/08/2004) - EN
