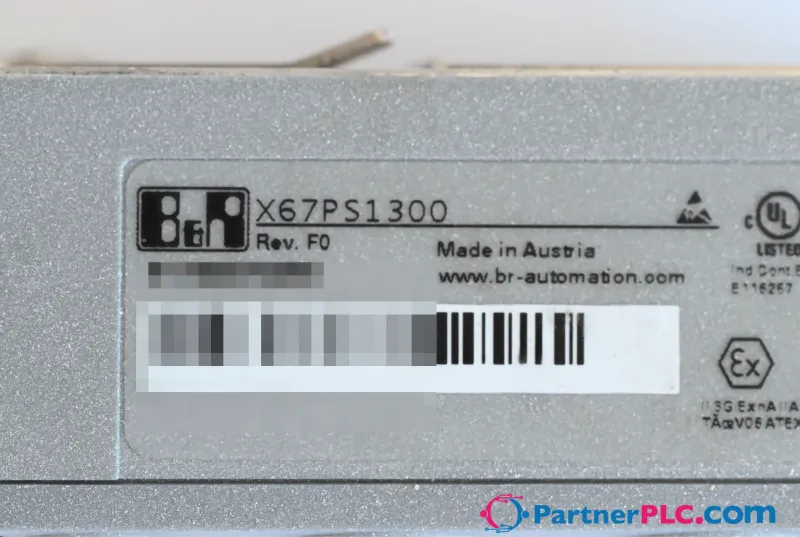

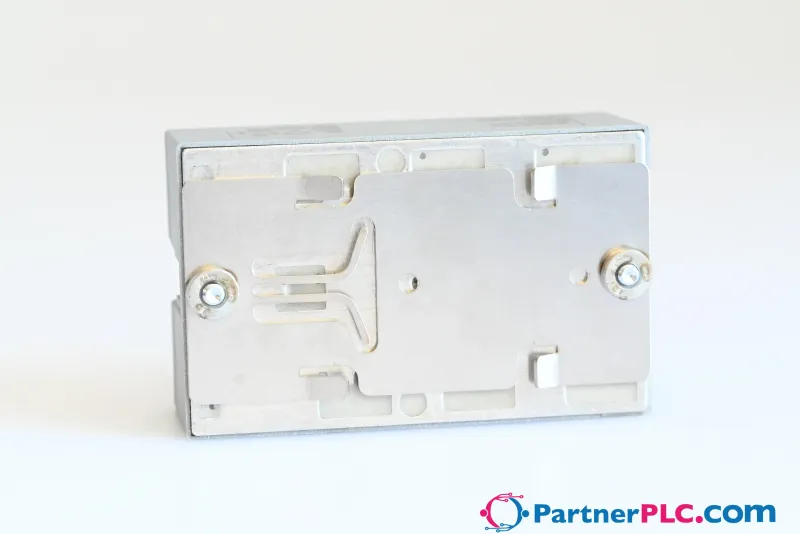

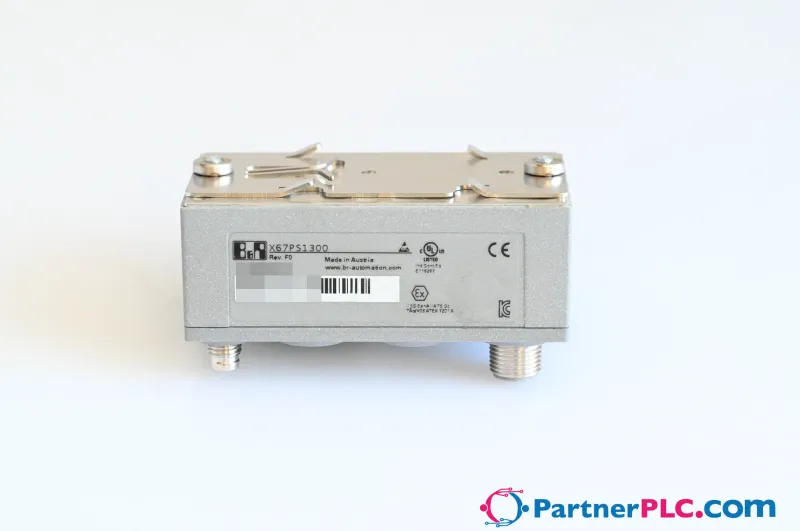

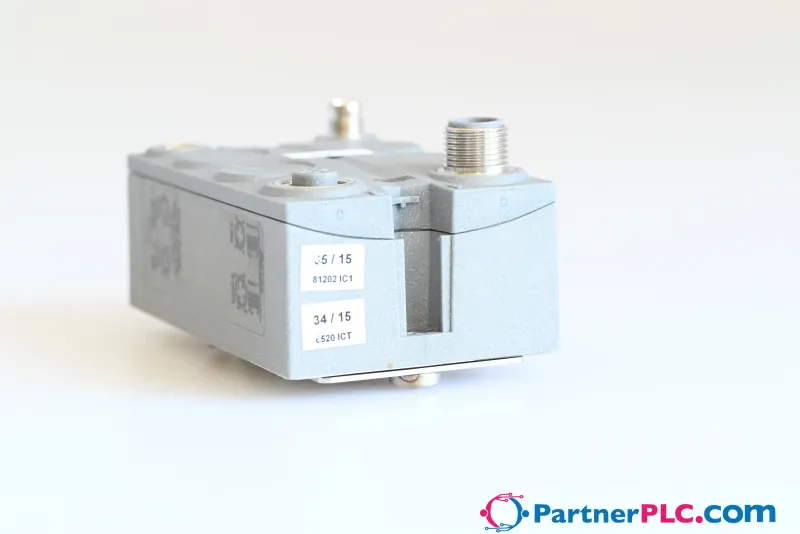

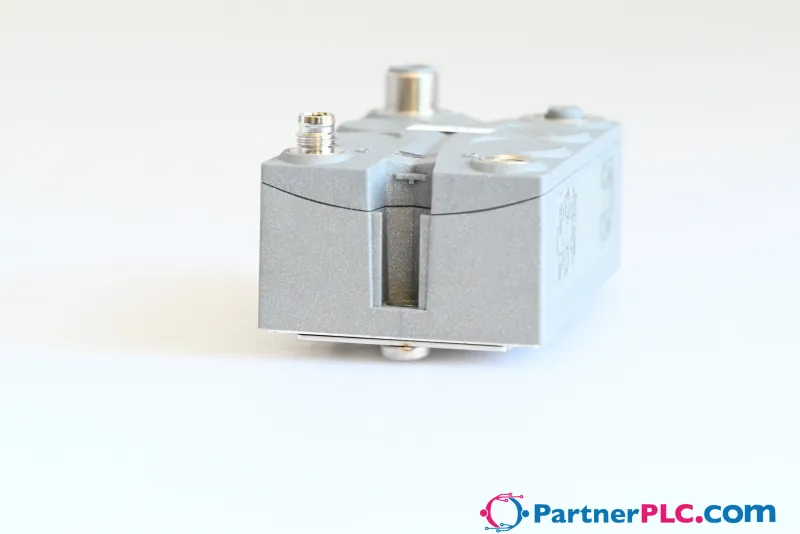

B&R X67PS1300 – Electrical isolation of supply and X2X Link power supply
Request a Quote
Quick facts
| Availability | In stock — 8 available |
| Category | Power Supplies |
| Warranty | 3-month |
| Weight | 0.2 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X67PS1300 be shipped?
X67PS1300 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X67PS1300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X67PS1300.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67PS1300, subject to availability and destination.
• Electrical isolation of supply and X2X Link power supply
• Protection with redundancy during parallel operation of multiple system supply modules
• Short circuit protection
• Overload protection
This system supply module converts the 24 VDC I/O supply voltage into the electrically isolated X2X Link power supply. The module provides 15 W of output power for additional X67 modules on the bus.
Specifications
Short description
| System power supply modules | Galvanically isolated X2X Link power supply |
General information

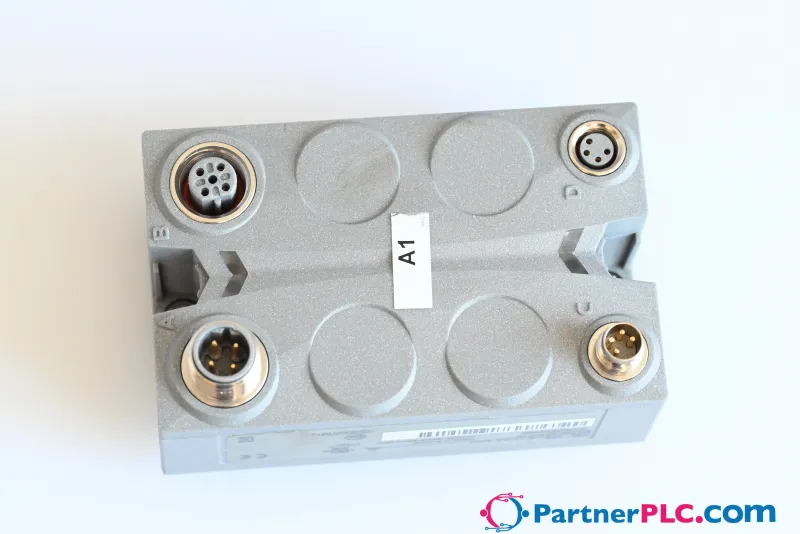

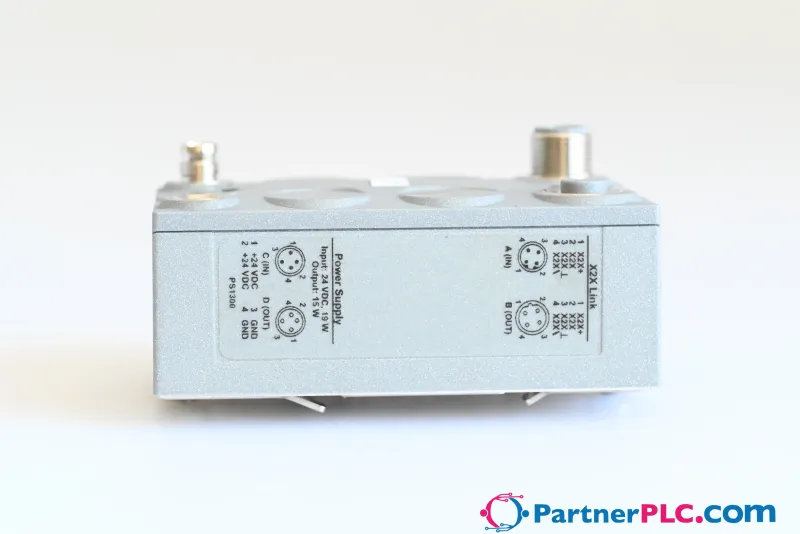

| Connection type – X2X Link power supply output | M12, B-coded |
| Connection type – X2X Link power supply input | M8, 4-pin |
| Power consumption – Internal | 3 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| Status indicators | Input voltage OK, output voltage OK |
X2X Link power supply input
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Nominal current | 0.75 A |
| Fuse | Integrated |
X2X Link power supply output
| Nominal voltage | 20 VDC |
| Nominal current | 0.75 A |
| Nominal output power | 15 W |
| Efficiency | >80% |
| Parallel connection | Yes " data-placement="top" data-html="true" data-container="body" data-content="In parallel operation, it is only permitted to expect 90% of the nominal power. It is important to ensure that all power supply units operated in parallel are switched on and off simultaneously."> |
| Redundant operation | Yes, with equal input voltages |
| Supply failure bridging | >5 ms at 24 VDC In and I Out = 0.75 A |
| Overload characteristics | Short-circuit proof, overload-proof |
| Insulation voltage between input and output | 500 V eff |
I/O power supply
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
Electrical properties
| Electrical isolation | X2X Link supply isolated from X2X Link power supply |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 85 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 225 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet X67PS1300 | PDF · 795 KB · 2.30 (11/28/2025) - EN |
| X67 System User´s Manual | PDF · 21 MB · 4.40 (08/27/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X67PS1300 | ZIP · 2 MB · 1.10 (07/26/2021) |
Certificates (7)
| 2226379 CSA Certificate of Compliance X20 X67 | PDF · 205 KB · 2026_09 (09/21/2026) |
| E115267 UL CoC X67 | PDF · 345 KB · 2026_01 (01/29/2026) |
| EU Declaration ATEX X67 | PDF · 191 KB · 2021-04 (07/02/2021) |
| EU Declaration PLC X67 | PDF · 674 KB · 2024-02 (02/02/2024) |
| TÜV 05 ATEX 7201 X | PDF · 5 MB · 1.10 (03/24/2021) |
| UK Declaration PLC X67 | PDF · 469 KB · 2024-02 (02/02/2024) |
| X20, X67 KC certificates | PDF · 7 MB · 2.00 (08/17/2026) |
