Used
B&R 8B0M0020HW00.000-1
MPN: 8B0M0020HW00.000-1 · Brand: B&R
€846.94 excl. VAT & shipping
Request a Quote
3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | Servo & Motion Control |
| Warranty | 3-month |
| Weight | 1.05 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8B0M0020HW00.000-1 be shipped?
8B0M0020HW00.000-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8B0M0020HW00.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8B0M0020HW00.000-1.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0M0020HW00.000-1, subject to availability and destination.
• Pioneering power distribution system
• Integrated distribution of power and auxiliary power supply
• Shockproof
• Option slots possible

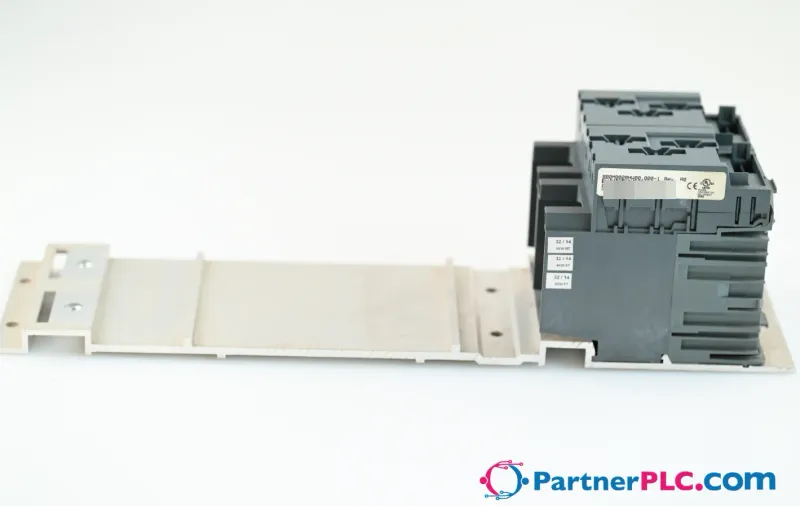

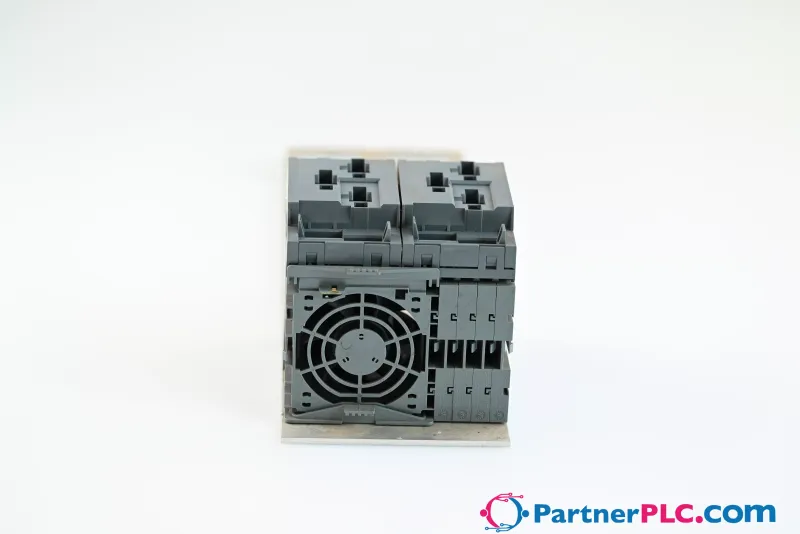

ACOPOSmulti mounting plate with backplane, 2 slots, AS, wall mounting, 75 mm² and 22 mm², complete
Accessories
Optional accessories (1)
| 8BXF002.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for mounting plate with backplane module, wall mounting (8B0MxxxxHWxx.xxx-x) |
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Number of slots | 2 |
| Cooling and mounting type | Wall mounting |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 20 kW per 1000 m |
| Cross section – DC+, DC- | 72 mm² |
| Cross section – PE | 72 mm² |
| Continuous power " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 40°C ambient temperature, installation elevation <500 m above sea level."> | 200 kW |
24 VDC auxiliary supply
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 150 W per 1000 m |
| Cross section – 24 VDC, COM | 21.3 mm² |
| Voltage | 25 VDC ±1.6% |
| Continuous power " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 40°C ambient temperature, installation elevation <500 m above sea level."> | 1500 W |
| Max. power consumption per slot (P Fan8B0M... ) | 8.25 W " data-placement="top" data-html="true" data-container="body" data-content="Corresponds to the proportionate power consumption of the fan modules in the mounting plate."> |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum " data-placement="top" data-html="true" data-container="body" data-content="Continuous operation of ACOPOSmulti mounting plates at an installation elevation of 500 m to 4000 m above sea level is possible when taking the specified reduction in continuous power into account. Requirements that go beyond this must be arranged with B&R."> | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Evenness of mounting surface | Evenness of 1 mm over the entire mounting surface |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum " data-placement="top" data-html="true" data-container="body" data-content="Continuous operation of ACOPOSmulti mounting plates at ambient temperatures from 40°C to max. 55°C is possible when taking the specified continuous power reductions into account."> | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="The dimensions define the size of the mounting plate. Additional spacing above and below the backplanes must be taken into account for mounting, connections and air circulation."> – Width | 107 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="The dimensions define the size of the mounting plate. Additional spacing above and below the backplanes must be taken into account for mounting, connections and air circulation."> – Height | 385 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="The dimensions define the size of the mounting plate. Additional spacing above and below the backplanes must be taken into account for mounting, connections and air circulation."> – Depth | 13.5 mm |
| Weight | 1.05 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8B0M0020HW00.000-1 | PDF · 1 MB · 1.5 (03/15/2024) - EN |
| ACOPOSmulti User´s Manual | PDF · 309 MB · 1.30 (08/18/2025) - EN |
CAD & dimension drawings
| 3D file STEP 8B0M0020HW00.000-1 | ZIP · 89 KB · 3.0 (10/31/2013) |
Certificates (4)
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | PDF · 282 KB · 1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) | PDF · 183 KB · 2.10 (07/20/2022) |
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
