PilzNew

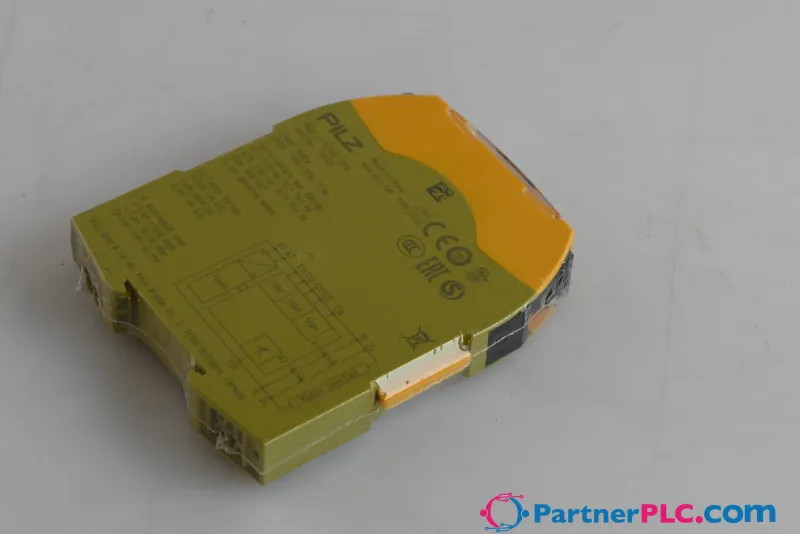

Pilz 750103

Monitoring of E-STOP, safety gates, light barrier

MPN
750103
EAN
4046548025682
€111.30excl. VAT & shipping
In stock — 3 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day

Have spare Pilz parts? We buy surplus →

What is the Pilz 750103?

Monitoring of E-STOP, safety gates, light barrier

Specifications

General data

Product ID (Pilz order number)750103
ApprovalCCC, CE, UKCA, cULus Listed, EAC (Eurasian), TÜV
LifecycleActive (current Pilz product)

Electrical data

Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC2.5 W

Inputs

Number of inputs2

Semiconductor outputs

Number of semicond. outputs1
Utilisation cat. to EN 60947-1DC-12

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.6 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.6 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.5 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G.U. (same polarity)
Relay contact materialAgCuNi
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material lower sectionPC
Housing material front platePC
Housing material upper partPC
Connection terminalScrew terminal
Terminal styleplug-in
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension98 mm
Width dimension17.5 mm
Depth dimension120 mm
Net weight140 g
Gross weight150 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a, 6c, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead, Lead oxide
%-part of the pollutant> 0,1
CAS No.7439-92-1, 1317-36-8
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27371819
ETIM VersionETIM-9.0
ETIM Reference GroupEG000019
ETIM Reference FeatureEC001449
UNSPSC 2539122331
GTIN4046548025682
Volume0.240 dm3
Harmonized System Code85364900
Quantity per packaging unit1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (11)

750103: frequently asked questions

When can 750103 be shipped?

750103 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 750103 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 750103.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750103, subject to availability and destination.
