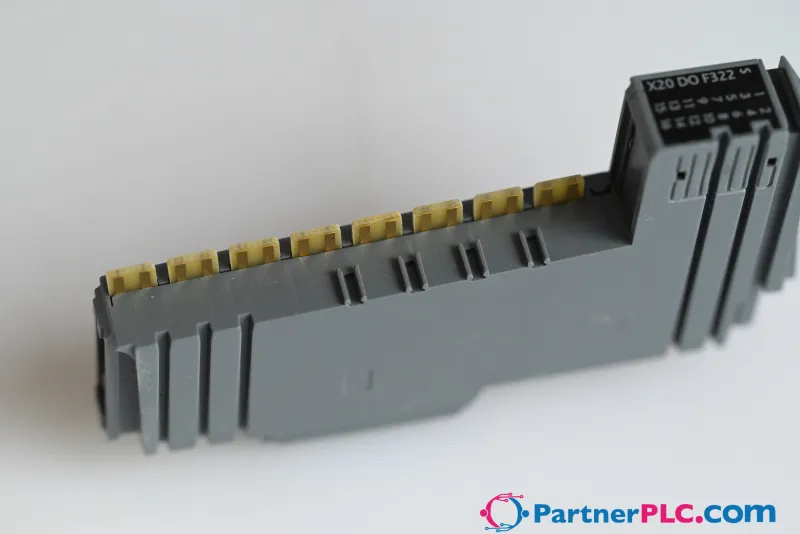

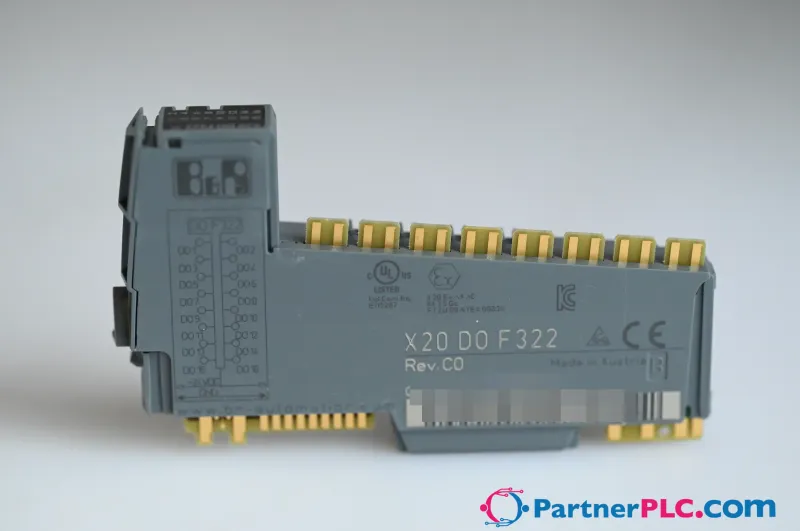

B&R X20DOF322

MPN: X20DOF322
Category: Digital I/O Modules

€121.90excl. VAT & shipping

In stock — 3 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20DOF322?

Material number: X67AM1323 Description: 2 analog inputs, 2 analog outputs, each 0 to 20 mA Configurable digital input filters Very short cycle times Optimal shield grounding on all channels The module is equipped with 2 inputs and 2 outputs with 12-bit digital converter resolution. The range of the input/output signal is 0 to 20 mA.

Specifications

Short description

I/O module

16 digital outputs 24 VDC for 1-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software (output error status)
Power consumption – Bus	0.28 W
Power consumption – Internal I/O	0.95 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xC0EA
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	+0.56 (note: Number of outputs x R DS(on) x Nominal output current 2 . For a calculation example, see section)

Digital outputs

Switching delay – 0 → 1	<300 µs (note: At loads ≤ 1 kΩ)
Switching delay – 1 → 0	<300 µs (note: At loads ≤ 1 kΩ)
Switching frequency – Resistive load	Max. 500 Hz (note: At loads ≤ 1 kΩ)
Switching frequency – Inductive load	See section "Switching inductive loads".
Variant	Current-sourcing FET
Nominal voltage	24 VDC
Switching voltage	24 VDC -15% / +20%
Nominal output current	0.5 A
Total nominal current	8 A
Connection type	1-wire connections
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current"); Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 µA
R DS(on)	140 mΩ
Peak short-circuit current	<3 A
Switch-on in the event of overload shutdown or short-circuit shutdown	Approx. 10 ms (depends on the module temperature)
Braking voltage when switching off inductive loads	Typ. 45 VDC
Insulation voltage between channel and bus	500 V eff

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB1F separately.; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB1F	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using a screwdriver; Ability to label each terminal; Plain text labeling also…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File DXF/STEP X20DxD3xxZIP · 1 MB · 1.00 (08/27/2019)

Certificates (16)
