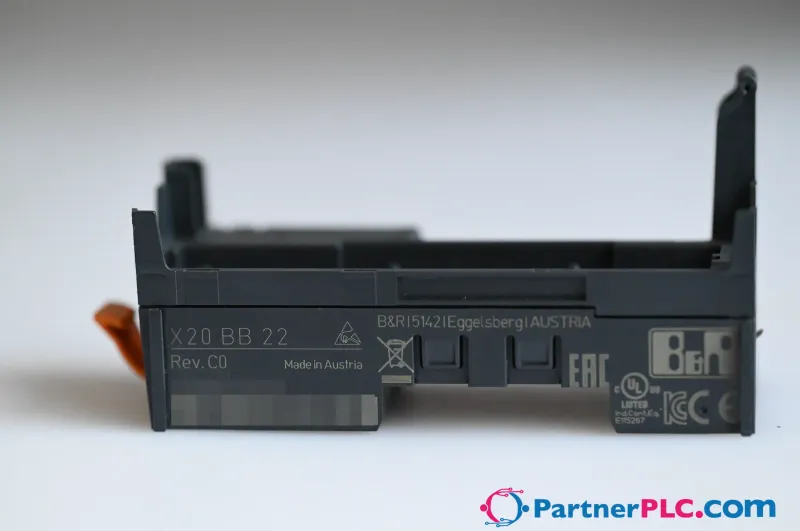

B&R X20BB22 Refurbished Rev. C0 – Base for all X20 Compact CPUs — photo 1 of 7

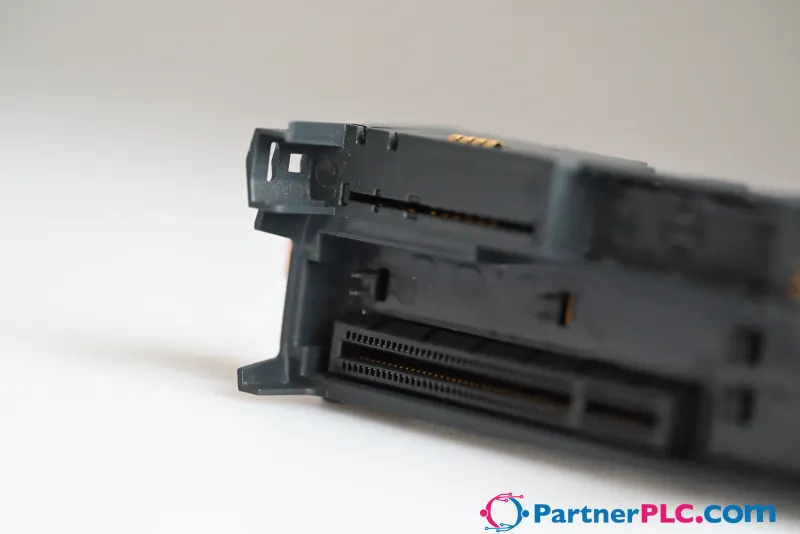

B&R X20BB22 Refurbished Rev. C0 – Base for all X20 Compact CPUs — photo 2 of 7

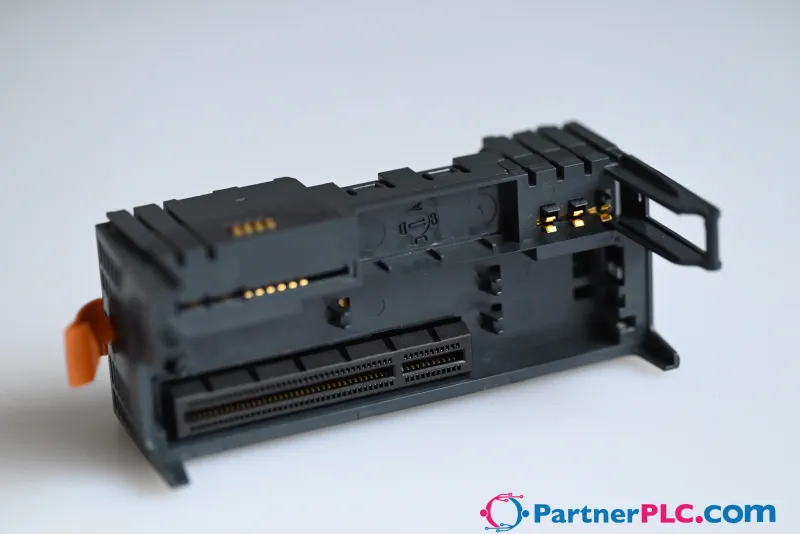

B&R X20BB22 Refurbished Rev. C0 – Base for all X20 Compact CPUs — photo 3 of 7

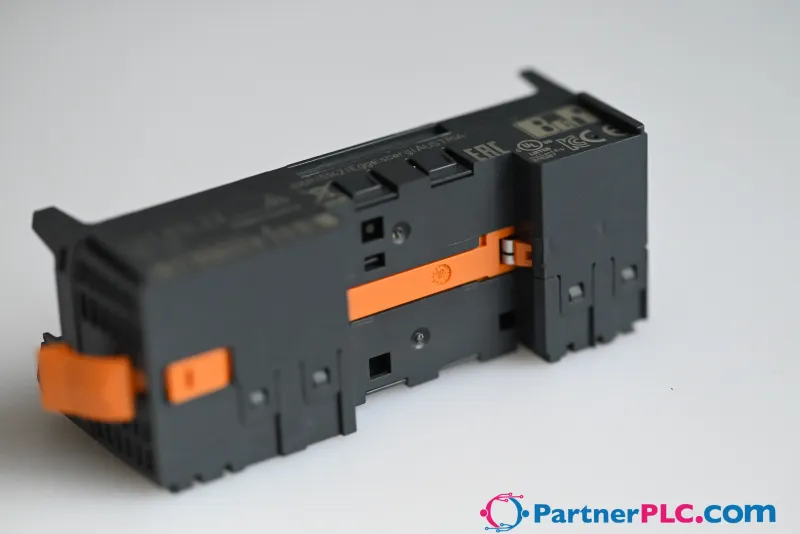

B&R X20BB22 Refurbished Rev. C0 – Base for all X20 Compact CPUs — photo 4 of 7

B&R X20BB22 Refurbished Rev. C0 – Base for all X20 Compact CPUs — photo 5 of 7

Refurbished

B&R X20BB22 Refurbished Rev. C0 – Base for all X20 Compact CPUs

Name: B&R X20BB22 Refurbished Rev. C0 – Base for all X20 Compact CPUs
Brand: B&R
SKU: X20BB22
Price: 132.50 EUR
Availability: InStock

MPN: X20BB22 · Brand: B&R

€132.50 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 3 available
Category	Communication Modules
Warranty	3-month
Weight	0.15 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20BB22 be shipped?

X20BB22 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20BB22 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20BB22.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20BB22, subject to availability and destination.

• Base for all X20 Compact CPUs

• RS232 connection

The bus module is the base for all X20 Compact CPUs.

The left and right end cover plates are included in delivery.

Specifications

Short description

Bus module	X20 Compact CPU base - Backplane for Compact CPU and Compact CPU power supply module
Interfaces	1x RS232 connection

General information

Power consumption – Bus	0.32 W
Power consumption – Internal I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
Additional power dissipation caused by actuators (resistive) [W]	-

I/O power supply

Nominal voltage	24 VDC
Permissible contact load	10 A

Electrical properties

Electrical isolation

Bus not isolated from RS232

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Left and right X20 end cover plates included in delivery
Pitch	37.5 +0.2 mm
