Home / B&R / Accessories / B&R X20HB2880

B&R

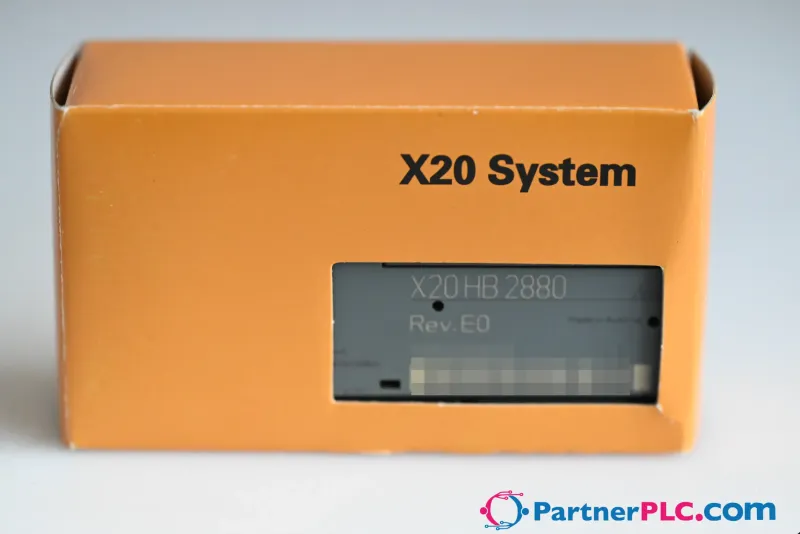

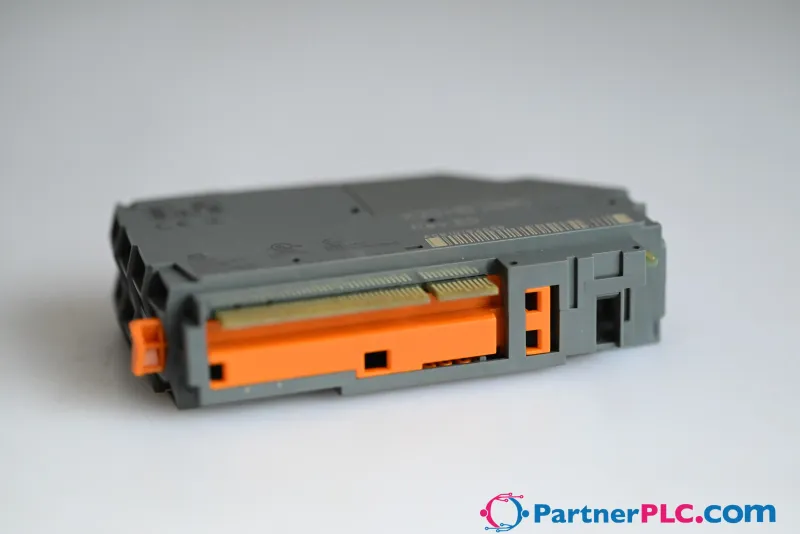

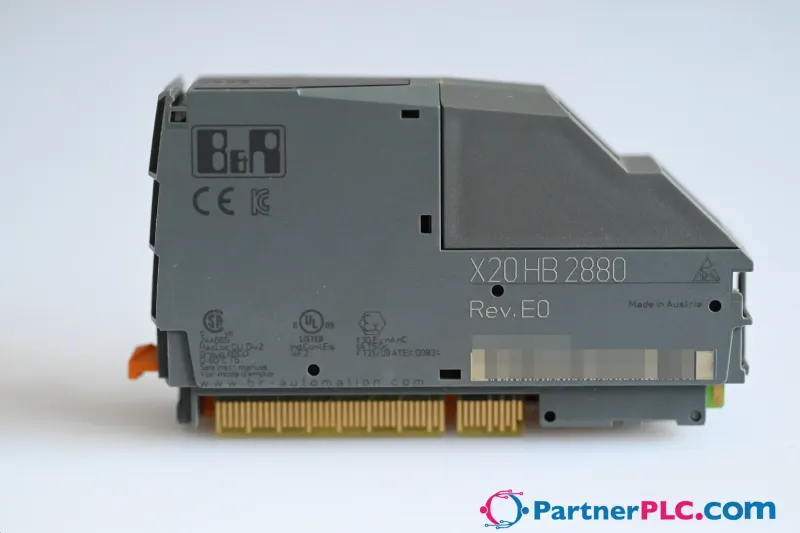

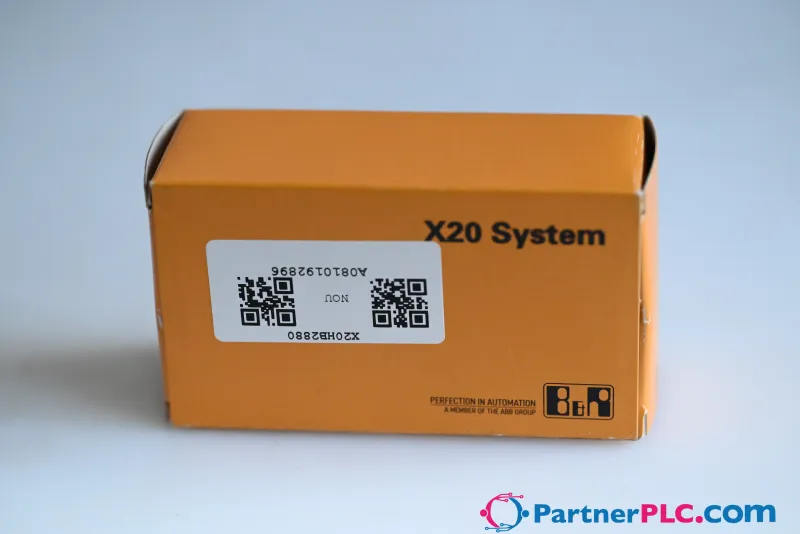

B&R X20HB2880

MPN: X20HB2880
Category: Accessories

€581.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20HB2880?

B&R X20HB2880

Specifications

Short description

Hub	2-port Fast Ethernet hub for hub expansion

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Bus function	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes

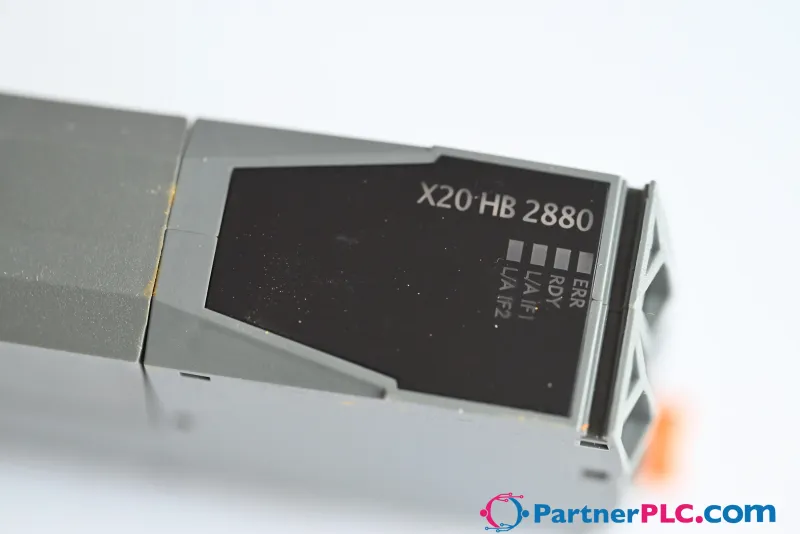

Status indicators	Module status, bus function
Power consumption	1.17 W
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Type	Hub expansion module
Variant	2x shielded RJ45
Line length	Max. 100 m between 2 stations (segment length)
Transfer rate	100 Mbit/s
Hub propagation delay	0.96 to 1 µs

Electrical properties

Electrical isolation

Power supply isolated from Ethernet (IF1 and IF2)

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Slot	Hub expansion for X20BC8083 and X20HB8880
