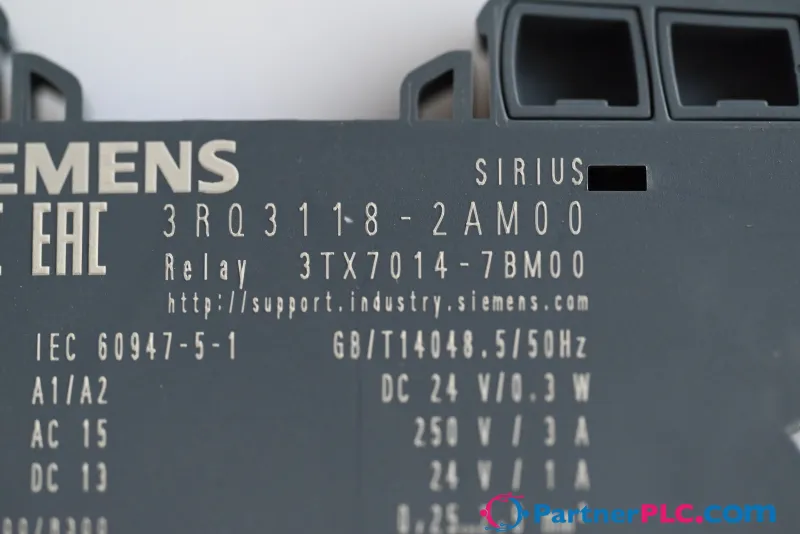

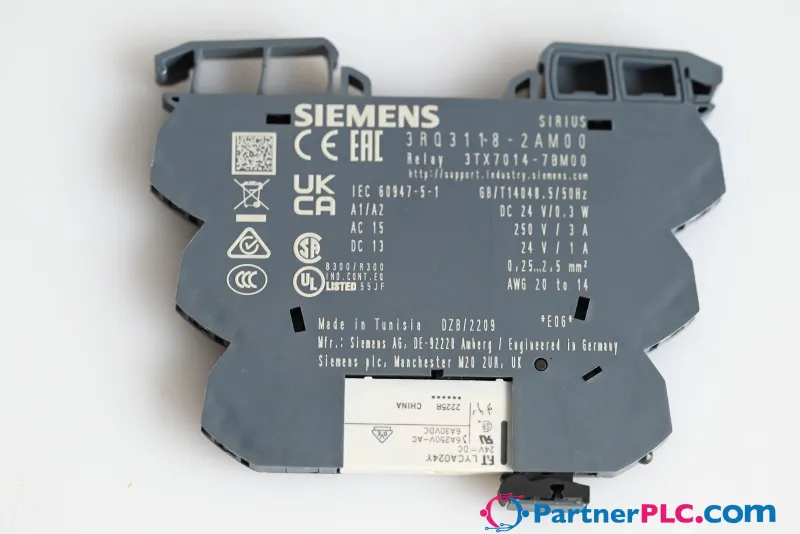

Siemens 3RQ3118-2AM00
- MPN
- 3RQ3118-2AM00
- Category
- Circuit Protection & Switching
€19.08excl. VAT & shipping
In stock — 6 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RQ3118-2AM00?
Siemens 3RQ3118-2AM00
Specifications
General technical data
| Technical Product Detail Page | https://i.siemens.com/1P3RQ3118-2AM00 |
| display version LED | Yes |
| product feature protective coating on printed-circuit board | No |
| product component — relay output | Yes |
| product component — semi-conductor output | No |
| consumed active power | 0.3 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| surge voltage resistance rated value | 4 kV |
| maximum permissible voltage for protective separation — between control and auxiliary circuit | 300 V |
| percental drop-out voltage related to the input voltage | 10 % |
| flammability class of enclosure material | UL94 V-0 |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 6 ... 150 Hz: 2 g |
| operating frequency maximum | 72 000 1/h |
| switching behavior | monostable |
| mechanical service life (operating cycles) typical | 10 000 000 |
| thermal current | 6 A |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 03/25/2015 |
| Net Weight | 0.034 kg |
Control circuit/ Control
| control supply voltage at DC rated value | 24 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.8 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.25 |
| ON-delay time — at DC maximum | 12 ms |
| OFF-delay time maximum | 13 ms |
Mechanical data
| product component plug-in socket | Yes |
| design of the relay operating mechanism | poled |
Short-circuit protection
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gG: 4 A |
Auxiliary circuit
| type of switching contact | Change-over contact |
| material of switching contacts | AgSnO2 |
| number of CO contacts for auxiliary contacts | 1 |
| operational current of auxiliary contacts at AC-15 — at 24 V | 3 A |
| operational current of auxiliary contacts at AC-15 — at 250 V | 3 A |
| operational current of auxiliary contacts at DC-13 — at 24 V | 1 A |
| operational current of auxiliary contacts at DC-13 — at 125 V | 0.2 A |
| operational current of auxiliary contacts at DC-13 — at 250 V | 0.1 A |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
Main circuit
| type of voltage | DC |
Inputs/ Outputs
| property of the output short-circuit proof | No |
| ampacity of the output relay at AC-15 at 250 V at 50/60 Hz | 3 A |
| ampacity of the output relay at DC-13 — at 24 V | 1 A |
| ampacity of the output relay at DC-13 — at 125 V | 0.2 A |
| ampacity of the output relay at DC-13 — at 250 V | 0.1 A |
Electromagnetic compatibility
| EMC emitted interference according to IEC 60947-1 | ambience A (industrial sector) |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
Display
| display version as status display by LED | LED green |
Connections/ Terminals
| product function removable terminal | No |
| type of electrical connection — for auxiliary and control circuit | spring-loaded terminals (push-in) |
| type of connectable conductor cross-sections — solid | 1x (0.25 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 1x (0.25 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 14) |
| type of connectable conductor cross-sections — for AWG cables stranded | 1x (20 ... 14) |
| connectable conductor cross-section — solid | 0.25 ... 2.5 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.25 ... 2.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 20 ... 14 |
| AWG number as coded connectable conductor cross section — stranded | 20 ... 14 |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | snap-on mounting |
| height | 93 mm |
| width | 6.2 mm |
| depth | 76 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — at the side | 0 mm |
| — downwards | 0 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity during operation | 10 ... 95 % |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RQ3118-2AM00: frequently asked questions
Can I still buy the 3RQ3118-2AM00 now that it is discontinued?
Yes. Siemens has discontinued the 3RQ3118-2AM00, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 3RQ3118-2AM00 be shipped?
3RQ3118-2AM00 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 3RQ3118-2AM00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 3RQ3118-2AM00.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RQ3118-2AM00, subject to availability and destination.
