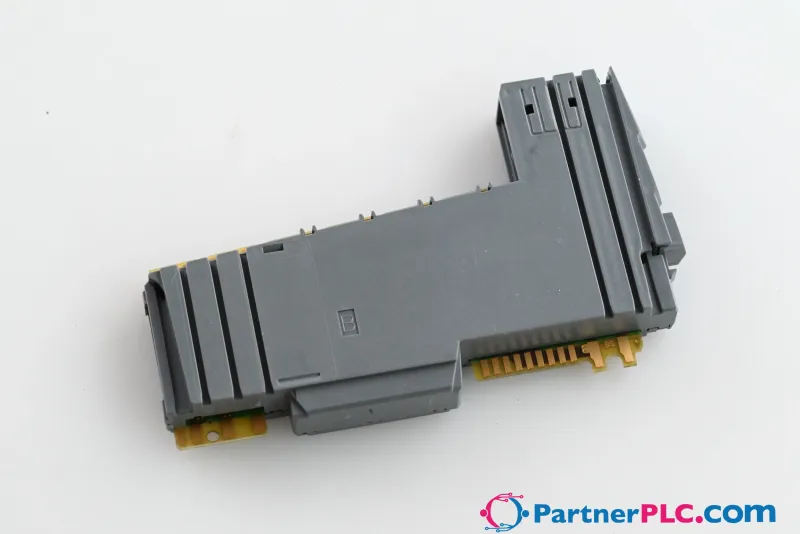

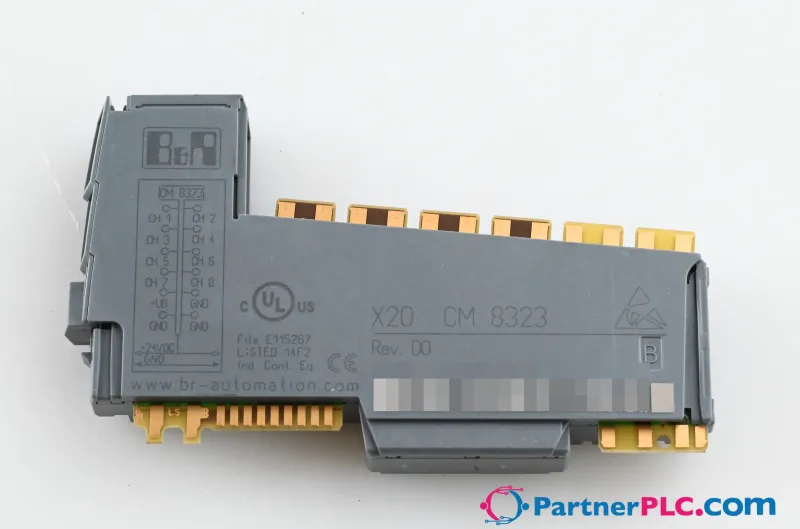

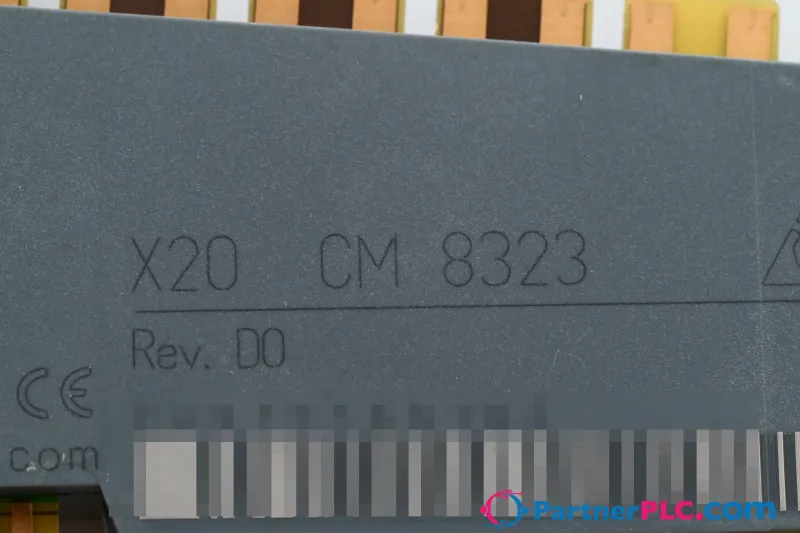

B&R X20CM8323 New Rev. D0
MPN: X20CM8323 · Brand: B&R
€444.14 excl. VAT & shipping
Request a Quote
12-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | Communication Modules |
| Warranty | 12-month |
| Weight | 0.1 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20CM8323 be shipped?
X20CM8323 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20CM8323 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20CM8323.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CM8323, subject to availability and destination.
• 8 digital outputs
• Current trace
• Switching time detection
• Pulse width modulation
The module has digital outputs for switching electromechanical loads (e.g. valves, relays) and additional functions.
Accessories
Required accessories (order separately)
| X20BM15 | Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe… |
| X20BM11 | Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 8 digital outputs for switching electromechanical loads, current monitoring, switching instant detection, pulse width modulation |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Outputs | Yes, using LED status indicator and software (output error status) |
| Power consumption – Bus | 0.01 W |
| Power consumption – Internal I/O | 1 W (Rev. ≥G0), 1.5 W (Rev. <G0) |
| Power consumption – External I/O | Corresponding to external load |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0x1D43 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Digital outputs
| Pulse width modulation – Period duration | 1 ms (1 kHz) or 20 µs (50 kHz) |
| Pulse width modulation – Pulse duration | 0 to 100% |
| Pulse width modulation – Resolution for pulse duration | 1% |
| Output voltage – Minimum | 18 VDC |
| Output voltage – Nominal | 24 VDC |
| Output voltage – Maximum | 42 VDC |
| Protective circuit – External | 24 VDC power supply - maximum current 10 A (melting fuse) |
| Nominal voltage | 24 VDC |
| Nominal output current | 0.6 A |
| Total nominal current | 4.8 A |
| Connection type | 1-wire connections |
| Output circuit | Sink |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads |
| Inrush current | Max. 2 A for max. 25.5 ms |
| Braking voltage when switching off inductive loads | 39 VDC |
| Reverse polarity protection | No (must be protected externally) |
Electrical properties
| Electrical isolation | Bus isolated from channel and internal I/O power supply; Channel not isolated from channel and internal I/O power supply |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | 0 to 60°C (Rev. ≥ G0), 0 to 55°C (Rev. < G0) " data-placement="top" data-html="true" data-container="body" data-content="Rev. G0 or later: At above 55°C, only a maximum of 6 channels are permitted to be switched on simultaneously."> |
| Temperature – Vertical mounting orientation | 0 to 50°C " data-placement="top" data-html="true" data-container="body" data-content="Rev. G0 or later: At above 45°C, only a maximum of 6 channels are permitted to be switched on simultaneously."> |
| Temperature – Derating | - |
| Temperature – Storage | -25 to 70°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately. |
| Pitch | 12.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20CM8323 | PDF · 2 MB · 3.20 (08/28/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
Certificates (8)
| E115267 UL Certificate of Compliance X20 | PDF · 3 MB · 2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice | PDF · 92 KB · 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | PDF · 218 KB · 2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 | PDF · 169 KB · 2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X | PDF · 771 KB · 3.00 (10/12/2021) |
| Safe cutoff of potential groups | PDF · 211 KB · 2.4 (11/29/2023) - EN |
| UK Declaration PLC X20 | PDF · 151 KB · 2024-01 (01/18/2024) |
| X20, X67 KC certificates | PDF · 7 MB · 2.00 (08/17/2026) |
