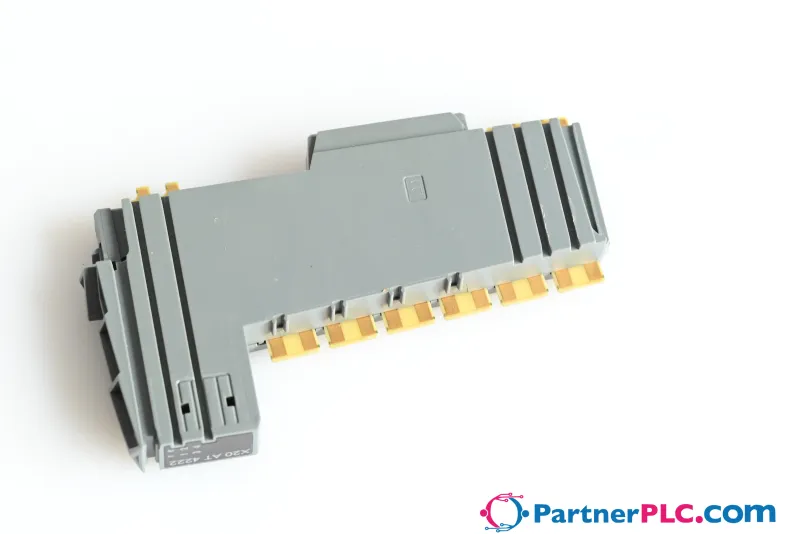

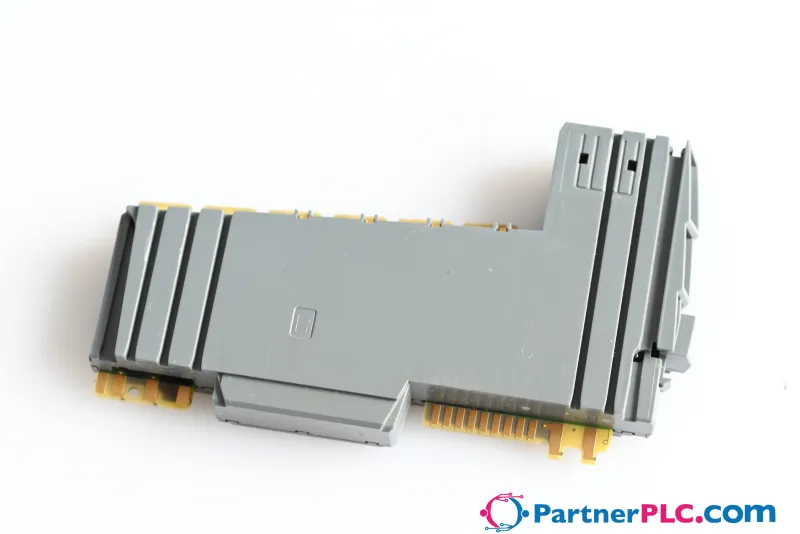

B&R X20AT4222 Used Rev. M0 – 4 inputs for resistance temperature measurement
MPN: X20AT4222 · Brand: B&R
€137.80 excl. VAT & shipping
Request a Quote
3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | Analog I/O Modules |
| Warranty | 3-month |
| Weight | 1 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20AT4222 be shipped?
X20AT4222 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20AT4222 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20AT4222.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AT4222, subject to availability and destination.
• 4 inputs for resistance temperature measurement
• For PT100 and PT1000
• Configurable sensor type per channel
• Direct resistance measurement
• Configurable 2- or 3- wire connections per module
• Configurable filter time
The module is equipped with 4 inputs for PT100/PT1000 resistance temperature measurement.
Accessories
Required accessories (order separately)
| X20BM15 | Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe… |
| X20BM11 | Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 4 inputs for Pt100 or Pt1000 resistance temperature measurement |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Inputs | Yes, using LED status indicator and software |
| Power consumption – Bus | 0.01 W |
| Power consumption – Internal I/O | 1.1 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x1BA7 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Resistance measurement temperature inputs
| Conversion time – 1 channel | 20 ms with 50 Hz filter |
| Conversion time – 2 - 4 channels | 40 ms per channel with 50 Hz filter |
| Sensor – Sensor type | Configurable per channel |
| Sensor – Pt100 | -200 to 850°C |
| Sensor – Pt1000 | -200 to 850°C |
| Max. error at 25°C – Gain | ±0.037% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured resistance value."> |
| Max. error at 25°C – Offset | ±0.0015% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire resistance measurement range."> |
| Temperature sensor resolution – Pt100 | 1 LSB = 0.1°C |
| Temperature sensor resolution – Pt1000 | 1 LSB = 0.1°C |
| Resistance measurement resolution – G = 1 | 0.1 Ω |
| Resistance measurement resolution – G = 2 | 0.05 Ω |
| Common-mode rejection – 50 Hz | >80 dB |
| Common-mode rejection – DC | >95 dB |
| Standardized range of values for resistance measurement – G = 1 | 0.1 to 4500 Ω |
| Standardized range of values for resistance measurement – G = 2 | 0.05 to 2250 Ω |
| Temperature sensor normalization – Pt100 | -200.0 to 850.0°C |
| Temperature sensor normalization – Pt1000 | -200.0 to 850.0°C |
| Temperature measurement monitoring – Range undershoot | 0x8001 |
| Temperature measurement monitoring – Range overshoot | 0x7FFF |
| Temperature measurement monitoring – Open circuit | 0x7FFF |
| Temperature measurement monitoring – General fault | 0x8000 |
| Temperature measurement monitoring – Open inputs | 0x7FFF |
| Resistance measurement monitoring – Range overshoot | 0xFFFF |
| Resistance measurement monitoring – Open circuit | 0xFFFF |
| Resistance measurement monitoring – General fault | 0xFFFF |
| Resistance measurement monitoring – Open inputs | 0xFFFF |
| Input | Resistance measurement with constant current supply for 2- or 3-wire connections |
| Digital converter resolution | 16-bit |
| Filter time | Configurable between 1 ms and 66.7 ms |
| Conversion procedure | Sigma-delta |
| Output format | INT or UINT for resistance measurement |
| Resistance measurement range | 0.1 to 4500 Ω / 0.05 to 2250 Ω |
| Input filter | First-order low-pass filter / cutoff frequency 500 Hz |
| Sensor standard | EN 60751 |
| Common-mode range | >0.7 V |
| Insulation voltage between channel and bus | 500 V eff |
| Linearization method | Internal |
| Measuring current | 250 µA ±1.25% |
| Reference | 4530 Ω ±0.1% |
| Permissible input signal | Short-term max. ±30 V |
| Max. gain drift | ±0.004%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured resistance value."> |
| Max. offset drift | ±0.00015%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire resistance measurement range."> |
| Nonlinearity | <0.001% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire resistance measurement range."> |
| Crosstalk between channels | <-93 dB |
Electrical properties
| Electrical isolation | Channel isolated from bus; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately. |
| Pitch | 12.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)AT4222 | PDF · 821 KB · 3.32 (10/08/2024) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
