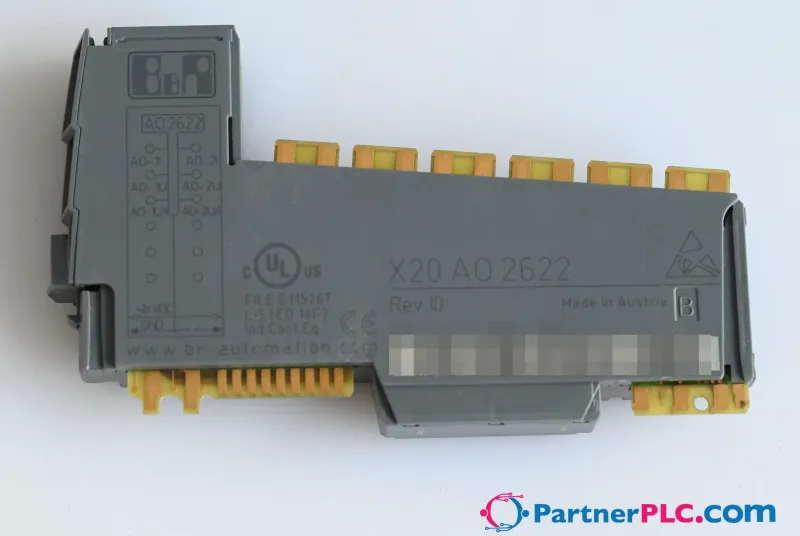

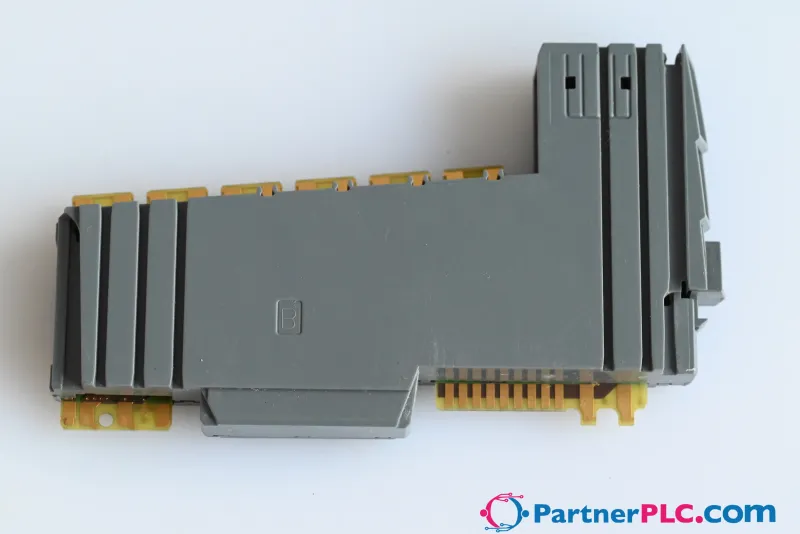

B&R X20AO2622 New Rev. I0 – 2 analog outputs; Either current or voltage signal possible

Name: B&R X20AO2622 New Rev. I0 – 2 analog outputs; Either current or voltage signal possible
Brand: B&R
SKU: X20AO2622
Price: 222.60 EUR
Availability: InStock

MPN: X20AO2622 · Brand: B&R

€222.60 excl. VAT & shipping

Request a Quote

12-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Category	Analog I/O Modules
Warranty	12-month
Weight	0.01 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X20AO2622 be shipped?

X20AO2622 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20AO2622 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20AO2622.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AO2622, subject to availability and destination.

• 2 analog outputs

• Either current or voltage signal possible

• 13-bit digital converter resolution

The module is equipped with 2 outputs with 13-bit, (including sign, digital converter resolution. It is possible to select between the current and voltage signal using different terminals.

This module is designed for X20 6-pin terminal blocks. If needed (e.g. for logistical reasons), the 12-pin terminal block can also be used.

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
X20TB06	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module

2 analog outputs ±10 V or 0 to 20 mA / 4 to 20 mA " data-placement="top" data-html="true" data-container="body" data-content="4 to 20 mA: Starting with upgrade version 1.0.2.0 or hardware revision "I0"">

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Channel type	Yes, using software
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	1.1 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1BA2
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Analog outputs

Digital converter resolution – Voltage	±12-bit
Digital converter resolution – Current	12-bit
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Gain	±0.15% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Offset	±0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Gain	±0.15% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Offset	±0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Output format – Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
Output format – Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Load per channel – Voltage	Max. ±10 mA, load ≥1 kΩ
Load per channel – Current	Load max. 600 Ω (Rev. ≥ J0), 500 Ω (Rev. < J0)
Max. gain drift – Voltage	±0.02%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. gain drift – Current	±0.02%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. offset drift – Voltage	±0.032%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Max. offset drift – Current	±0.032%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Error caused by load change – Voltage	Max. 0.11%, from 10 MΩ → 1 kΩ, resistive
Error caused by load change – Current	Max. 0.5%, from 1 Ω → 600 Ω, resistive
Output	±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections " data-placement="top" data-html="true" data-container="body" data-content="4 to 20 mA: Starting with upgrade version 1.0.2.0 or hardware revision "I0"">
Max. output current	10 mA at voltage >5 V; 15 mA at voltage <5 V
Conversion time	200 µs for all outputs
Settling time on output change over entire range	1 ms
Switch on/off behavior	Internal enable relay for startup
Output protection	Short-circuit proof
Short-circuit proof	Current limiting ±40 mA
Output filter	First-order low-pass filter / cutoff frequency 10 kHz
Nonlinearity	<0.007% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Insulation voltage between channel and bus	500 V eff

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB06 or X20TB12 separately. ; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm
