Planetary gearboxes with output flange 8GF Parts

B&R

8GF40-064hh003klmm

Flange PG, i = 003, 1-stage, IP65.

B&R

8GF40-064hh004klmm

Flange PG, i = 004, 1-stage, IP65.

B&R

8GF40-064hh005klmm

Flange PG, i = 005, 1-stage, IP54

B&R

8GF40-064hh008klmm

Flange PG, i = 008, 1-stage, IP54

B&R

8GF40-064hh009klmm

Flange PG, i = 009, 2-stage, IP65.

B&R

8GF40-064hh010klmm

Flange PG, i = 010, 1-stage, IP54

B&R

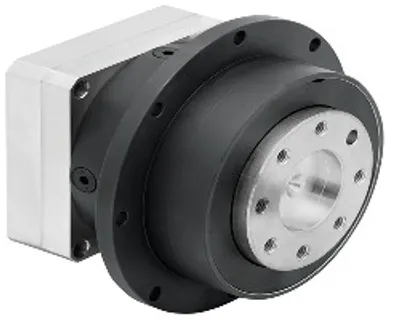

8GF40-064hh012klmm

Flange PG, i = 012, 2-stage, IP65.

B&R

8GF40-064hh015klmm

Flange PG, i = 015, 2-stage, IP54

B&R

8GF40-064hh016klmm

Flange PG, i = 016, 2-stage, IP65.

B&R

8GF40-064hh020klmm

Flange PG, i = 020, 2-stage, IP54

B&R

8GF40-064hh025klmm

Flange PG, i = 025, 2-stage, IP54

B&R

8GF40-064hh032klmm

Flange PG, i = 032, 2-stage, IP54

B&R

8GF40-064hh040klmm

Flange PG, i = 040, 2-stage, IP54

B&R

8GF40-064hh064klmm

Flange PG, i = 064, 2-stage, IP54

B&R

8GF40-064hh100klmm

Flange PG, i = 100, 2-stage, IP54

B&R

8GF40-090hh003klmm

Flange PG, i = 003, 1-stage, IP54

B&R

8GF40-090hh004klmm

Flange PG, i = 004, 1-stage, IP54

B&R

8GF40-090hh005klmm

Flange PG, i = 005, 1-stage, IP54

B&R

8GF40-090hh008klmm

Flange PG, i = 008, 1-stage, IP54

B&R

8GF40-090hh009klmm

Flange PG, i = 009, 2-stage, IP54

B&R

8GF40-090hh010klmm

Flange PG, i = 010, 1-stage, IP54

B&R

8GF40-090hh012klmm

Flange PG, i = 012, 2-stage, IP54

B&R

8GF40-090hh015klmm

Flange PG, i = 015, 2-stage, IP54

B&R

8GF40-090hh016klmm

Flange PG, i = 016, 2-stage, IP54

Compare Planetary gearboxes with output flange 8GF

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GF40-064hh003klmm	3	28	45	66	0.183
8GF40-064hh004klmm	4	38	61	88	0.123
8GF40-064hh005klmm	5	40	64	80	0.097
8GF40-064hh008klmm	8	18	29	80	0.071
8GF40-064hh009klmm	9	44	70	88	0.145
8GF40-064hh010klmm	10	15	24	80	0.071
8GF40-064hh012klmm	12	44	70	88	0.134
8GF40-064hh015klmm	15	44	70	88	0.087
8GF40-064hh016klmm	16	44	70	88	0.101
8GF40-064hh020klmm	20	44	70	88	0.084
8GF40-064hh025klmm	25	40	64	80	0.084
8GF40-064hh032klmm	32	44	70	88	0.074
8GF40-064hh040klmm	40	40	64	80	0.073
8GF40-064hh064klmm	64	18	29	80	0.071
8GF40-064hh100klmm	100	15	24	80	0.07
8GF40-090hh003klmm	3	85	136	180	1.01
8GF40-090hh004klmm	4	115	184	240	0.67
8GF40-090hh005klmm	5	110	176	220	0.53
8GF40-090hh008klmm	8	50	80	190	0.41
8GF40-090hh009klmm	9	130	208	260	0.79
8GF40-090hh010klmm	10	38	61	200	0.39
8GF40-090hh012klmm	12	120	192	240	0.75
8GF40-090hh015klmm	15	110	176	220	0.73
8GF40-090hh016klmm	16	120	192	240	0.54

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
