Home / Motion control / Standard planetary gearboxes 8G / Planetary gearboxes with output shaft 8GP

Planetary gearboxes with output shaft 8GP Parts

B&R

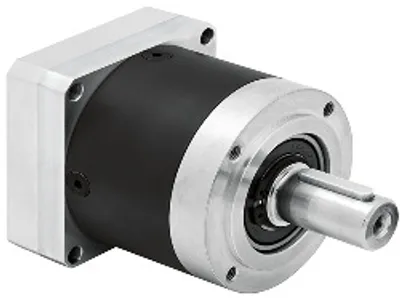

8GP40-040hh003klmm

Coaxial PG, i = 003, 1-stage, IP54

B&R

8GP40-040hh004klmm

Coaxial PG, i = 004, 1-stage, IP54

B&R

8GP40-040hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP40-040hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

B&R

8GP40-040hh009klmm

Coaxial PG, i = 009, 2-stage, IP54

B&R

8GP40-040hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

8GP40-040hh012klmm

Coaxial PG, i = 012, 2-stage, IP54

B&R

8GP40-040hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP40-040hh016klmm

Coaxial PG, i = 016, 2-stage, IP54

B&R

8GP40-040hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP40-040hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

8GP40-040hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP40-040hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP40-040hh060klmm

Coaxial PG, i = 060, 3-stage, IP54

B&R

8GP40-040hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP40-040hh080klmm

Coaxial PG, i = 080, 3-stage, IP54

B&R

8GP40-040hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP40-040hh120klmm

Coaxial PG, i = 120, 3-stage, IP54

B&R

8GP40-040hh160klmm

Coaxial PG, i = 160, 3-stage, IP54

B&R

8GP40-040hh200klmm

Coaxial PG, i = 200, 3-stage, IP54

B&R

8GP40-040hh256klmm

Coaxial PG, i = 256, 3-stage, IP54

B&R

8GP40-040hh320klmm

Coaxial PG, i = 320, 3-stage, IP54

B&R

8GP40-040hh512klmm

Coaxial PG, i = 512, 3-stage, IP54

B&R

8GP40-060hh003klmm

Coaxial PG, i = 003, 1-stage, IP54.

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GP40-040hh003klmm	3	11	18	23	0.031
8GP40-040hh004klmm	4	15	24	30	0.022
8GP40-040hh005klmm	5	14	22	36	0.019
8GP40-040hh008klmm	8	6	10	27	0.017
8GP40-040hh009klmm	9	16.5	26	33	0.03
8GP40-040hh010klmm	10	5	8	27	0.016
8GP40-040hh012klmm	12	20	32	40	0.029
8GP40-040hh015klmm	15	18	29	36	0.023
8GP40-040hh016klmm	16	20	32	40	0.022
8GP40-040hh020klmm	20	20	32	40	0.019
8GP40-040hh025klmm	25	18	29	36	0.019
8GP40-040hh032klmm	32	20	32	40	0.017
8GP40-040hh040klmm	40	18	29	36	0.016
8GP40-040hh060klmm	60	20	32	40	0.029
8GP40-040hh064klmm	64	7.5	12	27	0.016
8GP40-040hh080klmm	80	20	32	40	0.019
8GP40-040hh100klmm	100	5	8	27	0.016
8GP40-040hh120klmm	120	18	29	36	0.029
8GP40-040hh160klmm	160	20	32	40	0.016
8GP40-040hh200klmm	200	18	29	36	0.016
8GP40-040hh256klmm	256	20	32	40	0.016
8GP40-040hh320klmm	320	18	29	36	0.016
8GP40-040hh512klmm	512	7.5	12	27	0.016
8GP40-060hh003klmm	3	28	45	66	0.135

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Operating noise L PA [dB(A)]	58
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
