Home / Motion control / Premium planetary gearboxes 8G / Planetary gearboxes with output shaft 8GP

Planetary gearboxes with output shaft 8GP Parts

B&R

8GP60-070hh003klmm

Coaxial PG, i = 003, 1-stage, IP65.

B&R

8GP60-070hh004klmm

Coaxial PG, i = 004, 1-stage, IP65.

B&R

8GP60-070hh005klmm

Coaxial PG, i = 005, 1-stage, IP65.

B&R

8GP60-070hh008klmm

Coaxial PG, i = 008, 1-stage, IP65.

B&R

8GP60-070hh010klmm

Coaxial PG, i = 010, 1-stage, IP65.

B&R

8GP60-070hh012klmm

Coaxial PG, i = 012, 2-stage, IP65.

B&R

8GP60-070hh015klmm

Coaxial PG, i = 015, 2-stage, IP65.

B&R

8GP60-070hh016klmm

Coaxial PG, i = 016, 2-stage, IP65.

B&R

8GP60-070hh020klmm

Coaxial PG, i = 020, 2-stage, IP65.

B&R

8GP60-070hh025klmm

Coaxial PG, i = 025, 2-stage, IP65.

B&R

8GP60-070hh032klmm

Coaxial PG, i = 032, 2-stage, IP65.

B&R

8GP60-070hh040klmm

Coaxial PG, i = 040, 2-stage, IP65.

B&R

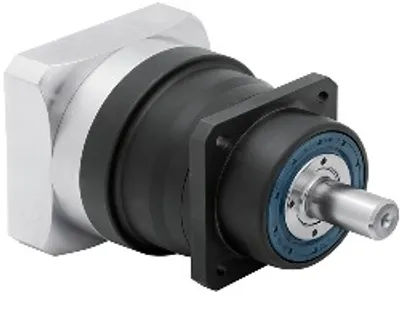

8GP60-070hh064klmm

Coaxial PG, i = 064, 2-stage, IP65.

B&R

8GP60-070hh100klmm

Coaxial PG, i = 100, 2-stage, IP65.

B&R

8GP60-090hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP60-090hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP60-090hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP60-090hh008klmm

Coaxial PG, i = 008, 1-stage, IP65

B&R

8GP60-090hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP60-090hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP60-090hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP60-090hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP60-090hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP60-090hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GP60-070hh003klmm	3	45	2050	1700	0.4
8GP60-070hh004klmm	4	60	2300	1900	0.32
8GP60-070hh005klmm	5	65	2650	2100	0.28
8GP60-070hh008klmm	8	40	3800	3300	0.25
8GP60-070hh010klmm	10	27	4400	4000	0.25
8GP60-070hh012klmm	12	68	3550	2900	0.4
8GP60-070hh015klmm	15	68	4000	3300	0.38
8GP60-070hh016klmm	16	77	3800	3150	0.35
8GP60-070hh020klmm	20	77	4300	3600	0.33
8GP60-070hh025klmm	25	65	4500	4100	0.3
8GP60-070hh032klmm	32	77	4500	4500	0.32
8GP60-070hh040klmm	40	65	4500	4500	0.29
8GP60-070hh064klmm	64	40	4500	4500	0.26
8GP60-070hh100klmm	100	27	4500	4500	0.25
8GP60-090hh003klmm	3	100	1950	1550	1.01
8GP60-090hh004klmm	4	140	2100	1600	0.78
8GP60-090hh005klmm	5	140	2500	1900	0.68
8GP60-090hh008klmm	8	80	3950	3350	0.59
8GP60-090hh010klmm	10	60	4000	4000	0.57
8GP60-090hh012klmm	12	110	3400	2750	1.02
8GP60-090hh015klmm	15	110	4000	3300	0.95
8GP60-090hh016klmm	16	150	3550	2850	0.89
8GP60-090hh020klmm	20	150	4000	3400	0.82
8GP60-090hh025klmm	25	140	4000	3850	0.76

Common to all listed parts

Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
