Planetary gearboxes with output flange 8GF Parts

B&R

8GF60-064hh004klmm

Flange PG, i = 004, 1-stage, IP65

B&R

8GF60-064hh005klmm

Flange PG, i = 005, 1-stage, IP65

B&R

8GF60-064hh008klmm

Flange PG, i = 008, 1-stage, IP65

B&R

8GF60-064hh010klmm

Flange PG, i = 010, 1-stage, IP65

B&R

8GF60-064hh016klmm

Flange PG, i = 016, 2-stage, IP65

B&R

8GF60-064hh020klmm

Flange PG, i = 020, 2-stage, IP65

B&R

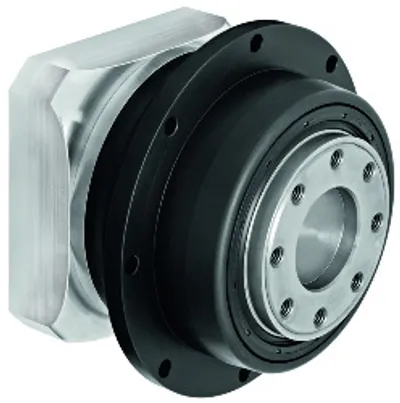

8GF60-064hh025klmm

Flange PG, i = 025, 2-stage, IP65

B&R

8GF60-064hh032klmm

Flange PG, i = 032, 2-stage, IP65

B&R

8GF60-064hh040klmm

Flange PG, i = 040, 2-stage, IP65

B&R

8GF60-064hh050klmm

Flange PG, i = 050, 2-stage, IP65

B&R

8GF60-064hh064klmm

Flange PG, i = 064, 2-stage, IP65

B&R

8GF60-064hh100klmm

Flange PG, i = 100, 2-stage, IP65

B&R

8GF60-090hh004klmm

Flange PG, i = 004, 1-stage, IP65

B&R

8GF60-090hh005klmm

Flange PG, i = 005, 1-stage, IP65

B&R

8GF60-090hh008klmm

Flange PG, i = 008, 1-stage, IP65

B&R

8GF60-090hh010klmm

Flange PG, i = 010, 1-stage, IP65

B&R

8GF60-090hh016klmm

Flange PG, i = 016, 2-stage, IP65

B&R

8GF60-090hh020klmm

Flange PG, i = 020, 2-stage, IP65

B&R

8GF60-090hh025klmm

Flange PG, i = 025, 2-stage, IP65

B&R

8GF60-090hh032klmm

Flange PG, i = 032, 2-stage, IP65

B&R

8GF60-090hh040klmm

Flange PG, i = 040, 2-stage, IP65

B&R

8GF60-090hh050klmm

Flange PG, i = 050, 2-stage, IP65

B&R

8GF60-090hh064klmm

Flange PG, i = 064, 2-stage, IP65

B&R

8GF60-090hh100klmm

Flange PG, i = 100, 2-stage, IP65

Compare Planetary gearboxes with output flange 8GF

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Idle torque [Nm] at 20°C and 3000 rpm	Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GF60-064hh004klmm	4	0.7	2100	1750	0.29
8GF60-064hh005klmm	5	0.55	2450	2000	0.26
8GF60-064hh008klmm	8	0.35	3550	3100	0.22
8GF60-064hh010klmm	10	0.3	4100	3800	0.21
8GF60-064hh016klmm	16	0.35	3700	3050	0.32
8GF60-064hh020klmm	20	0.3	4200	3500	0.3
8GF60-064hh025klmm	25	0.25	4500	4000	0.27
8GF60-064hh032klmm	32	0.25	4500	4400	0.29
8GF60-064hh040klmm	40	0.2	4500	4500	0.26
8GF60-064hh050klmm	50	0.2	4500	4500	0.22
8GF60-064hh064klmm	64	0.2	4500	4500	0.23
8GF60-064hh100klmm	100	0.2	4500	4500	0.22
8GF60-090hh004klmm	4	1.55	1750	1350	0.92
8GF60-090hh005klmm	5	1.15	2100	1650	0.77
8GF60-090hh008klmm	8	0.65	3350	2850	0.63
8GF60-090hh010klmm	10	0.55	4000	3600	0.59
8GF60-090hh016klmm	16	0.4	3850	2950	0.58
8GF60-090hh020klmm	20	0.35	4450	3450	0.56
8GF60-090hh025klmm	25	0.3	4500	4000	0.45
8GF60-090hh032klmm	32	0.25	4500	4500	0.54
8GF60-090hh040klmm	40	0.25	4500	4500	0.43
8GF60-090hh050klmm	50	0.2	4500	4500	0.28
8GF60-090hh064klmm	64	0.2	4500	4500	0.3
8GF60-090hh100klmm	100	0.25	4500	4500	0.26

Common to all listed parts

Operating noise L PA [dB(A)]	65
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
