3SF1, metal enclosures Parts
Compare 3SF1, metal enclosures
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | manufacturer's article number — of the supplied basic switch | Net Weight | width of the sensor | design of the housing | design of the housing according to standard |
|---|---|---|---|---|---|

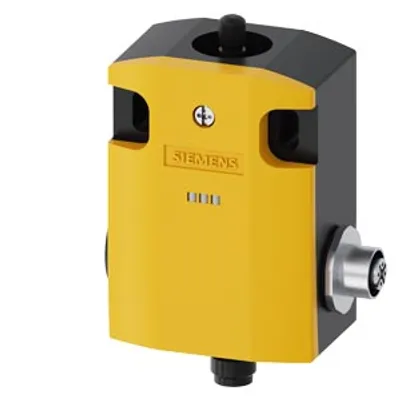

| 3SF1124-1LA00-1BA2 | 3SF1124-1LA00-1BA2 | 0.418 kg | 56 mm | block, wide | No |
| 3SF1124-1KA00-1BA2 | 3SF1124-1KA00-1BA2 | 0.39 kg | 56 mm | block, wide | No |
| 3SF1114-1LA00-1BA1 | 3SF1114-1LA00-1BA1 | 0.321 kg | 40 mm | block, narrow | Yes |

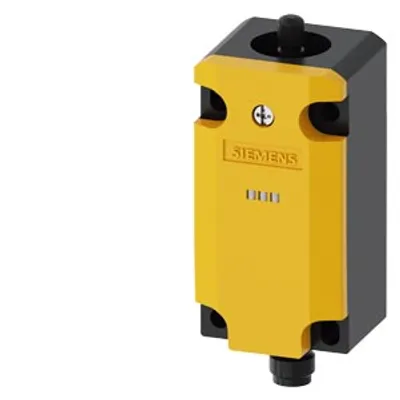

| 3SF1114-1KA00-1BA1 | 3SF1114-1KA00-1BA1 | 328.66 g | 40 mm | block, narrow | Yes |
Common to all listed parts
| product designation | Mechanical safety switches |
| product type designation | 3SF11 |
| product function positive opening | Yes |
| insulation voltage rated value | 30 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 0.8 kV |
| shock resistance according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
