H-System Parts
Compare H-System
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Fusing | Mass | Height | Width |
|---|---|---|---|---|---|

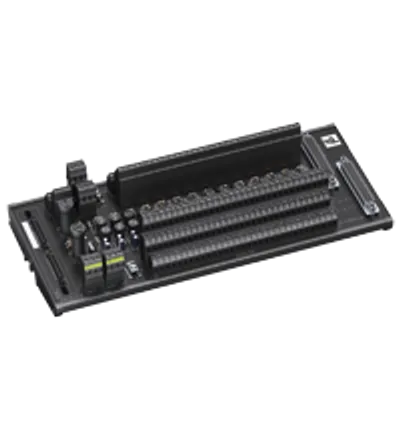

| HiSHPSM/32/TB-02/HF32 | 475508 | 100 mA , 5 x 20 mm (0.2 x 0.8 inch) | approx. 700 g | 127 mm | 300 mm |
| HiSHPTB/32/YOK-AIO-R-02 | 907237 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 107 mm | 330 mm |

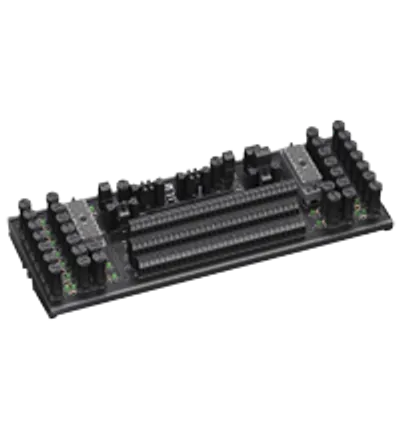

| HiSHPTB/32/TR-DO-01 | 908121 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 125 mm | 333 mm |

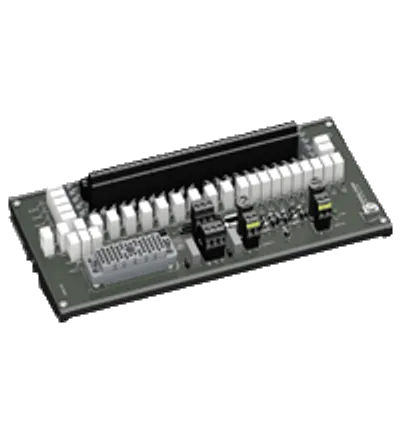

| HiSHPTB/32/TR-AI-03 | 911168 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 107 mm | 254 mm |

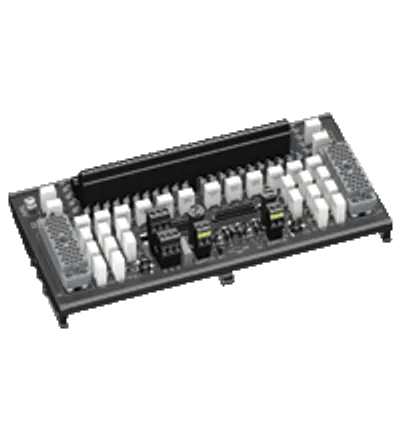

| HiSHPTB/32/TR-AI-02 | 912243 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 125 mm | 256 mm |

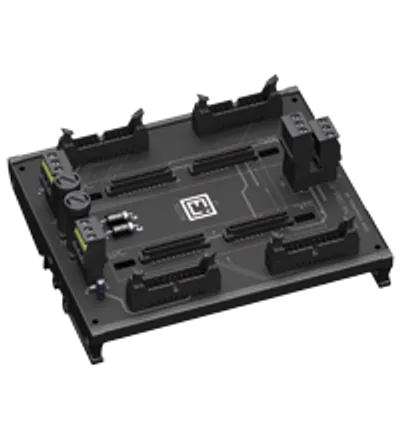

| HiSHPMM/64/CONA-01 | 475503 | 2 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 121 mm | 152 mm |
| HiSHPTB/32/TR-AI-01-Y1 | 915705 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 125 mm | 256 mm |

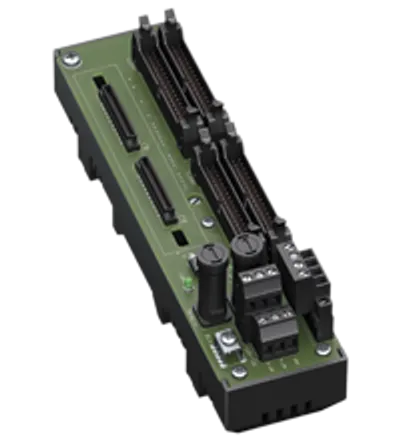

| HiATB01-HART-4X8-Y1 | 273677 | 0.5 A | approx. 210 g | — | — |

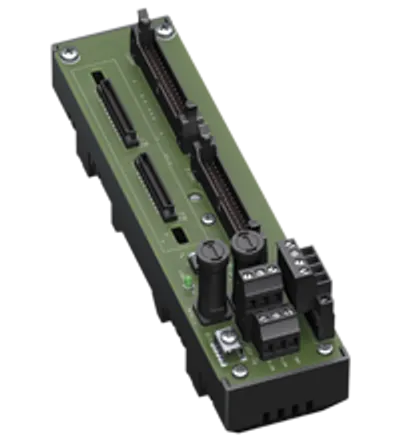

| HiATB01-HART-2X16 | 273674 | 0.5 A | approx. 190 g | — | — |
| HiATB01-HART-4X8 | 195049 | 0.5 A | approx. 210 g | — | — |

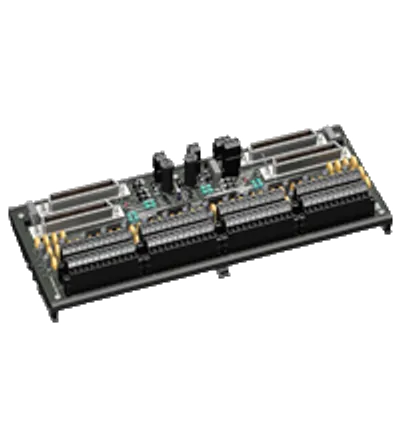

| HiSHPTB/32/HONB-AI-R-01 | 908292 | 315 mA , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 120 mm | 307 mm |

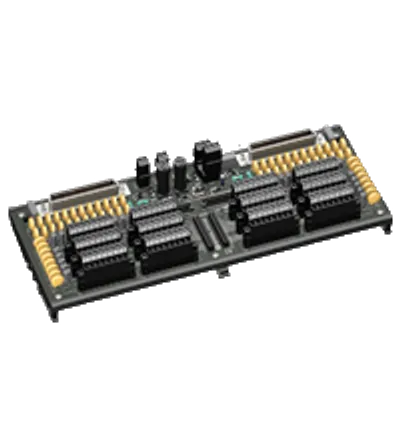

| HiSHPTB/32/HONB-AI-01 | 908291 | 315 mA , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 127 mm | 333 mm |

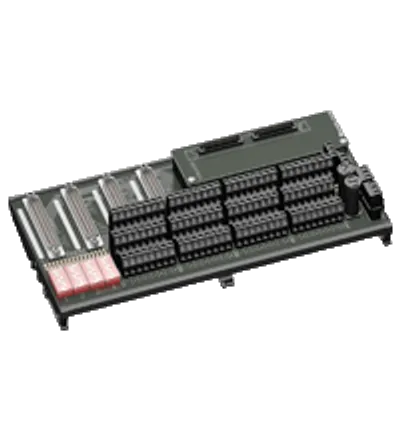

| HiSHPTB/32/FOX2001C-02 | 473496 | 315 mA , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 120 mm | 260 mm |

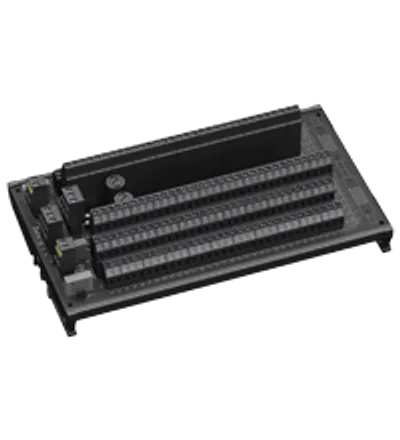

| HiSHPSM/32/MM-01 | 915207 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 122 mm | 222 mm |

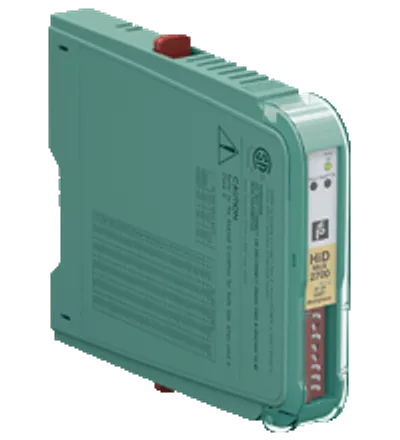

| HiDMux2700 | 211968 | — | approx. 140 g | — | — |

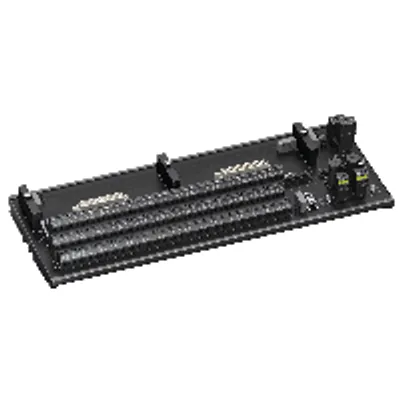

| HiS1132/CON8-H-LTX-02 | 905735 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 700 g | 125 mm | 333 mm |

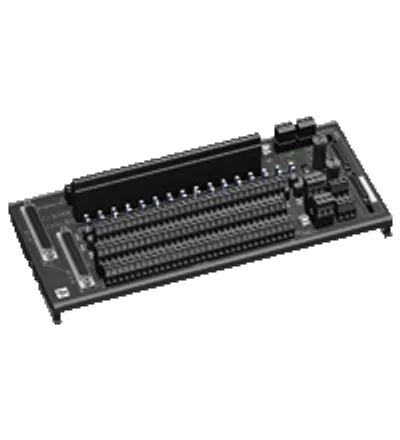

| HiSHPSM/32/TB-02 | 475504 | 100 mA , 5 x 20 mm (0.2 x 0.8 inch) | approx. 700 g | 127 mm | 300 mm |

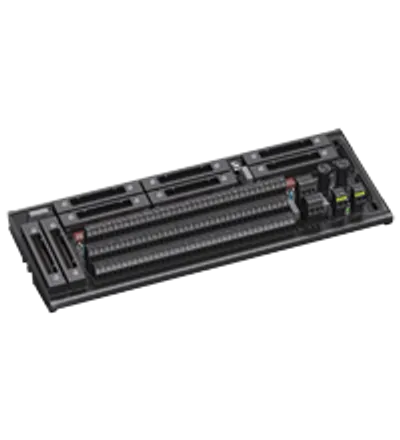

| HiSHPTB/32/YOK-AI-R-02 | 907236 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 107 mm | 330 mm |
| HiSHPTB/32/TR-AI-01 | 907912 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 125 mm | 256 mm |

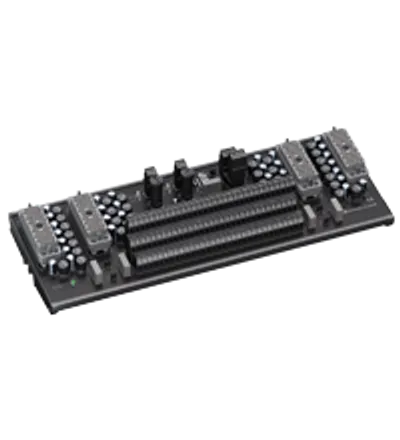

| HiSHPTB/32/TR-AO-01 | 905590 | 3.15 A , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 125 mm | 333 mm |

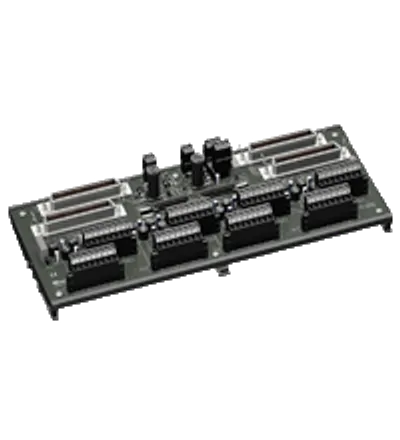

| HiSHPTB/32/HONB-AO-R-01 | 907308 | 315 mA , 5 x 20 mm (0.2 x 0.8 inch) | approx. 500 g | 127 mm | 333 mm |
